Notify me when its in stockRaspberry Pi Camera - IR-CUT

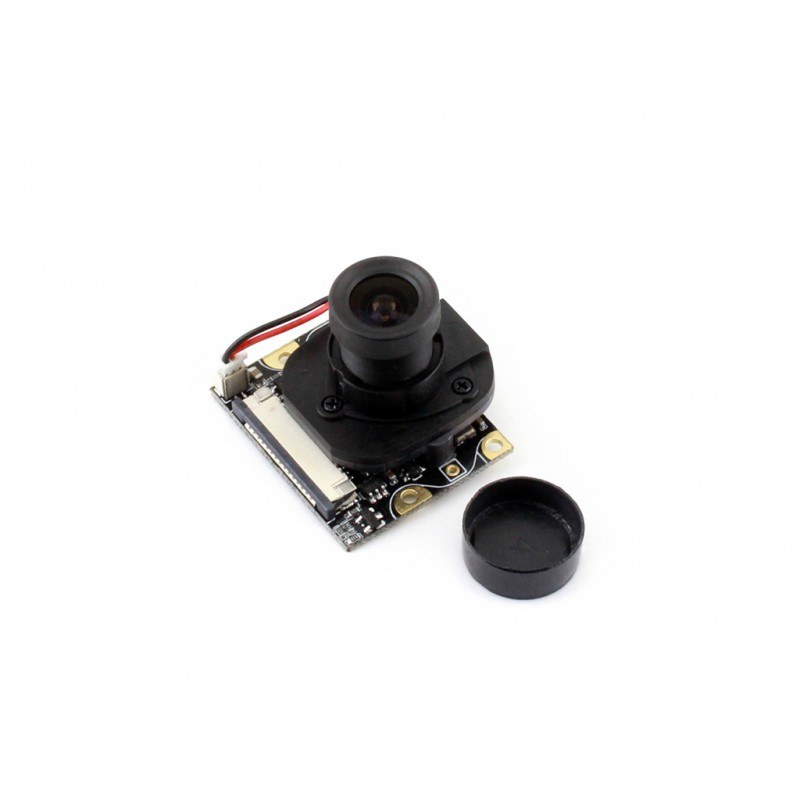

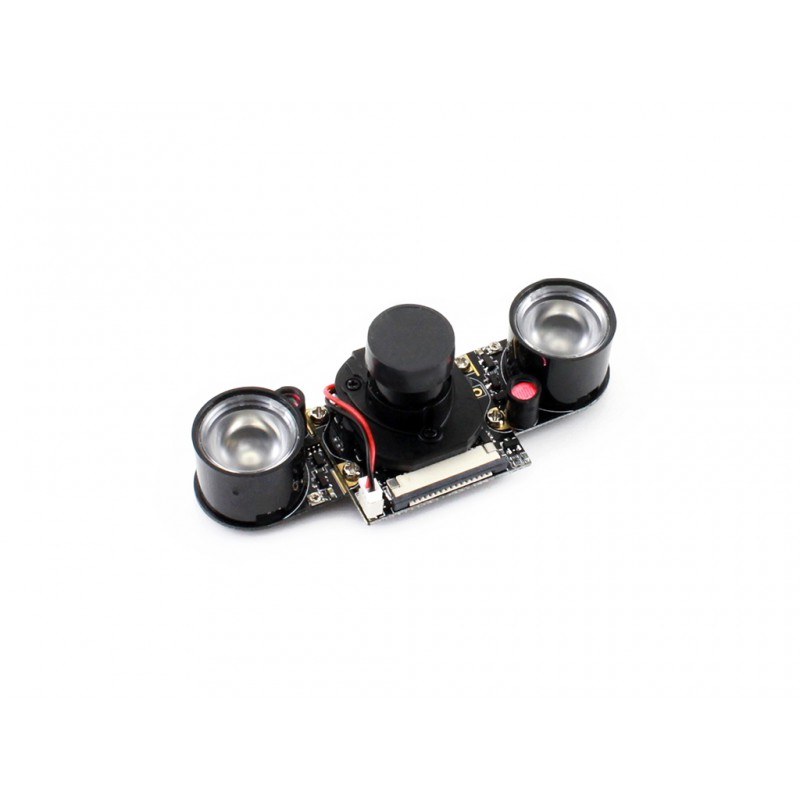

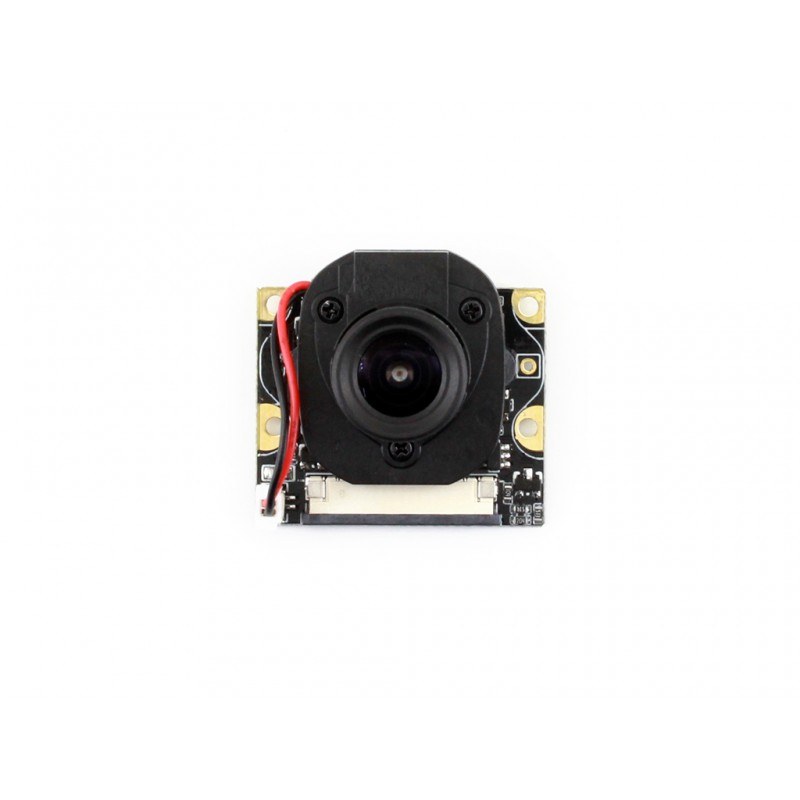

The Raspberry Pi IR-CUT Camera is a camera module based on the OV5647 sensor, designed to provide stable image capture in both daytime and nighttime conditions thanks to its integrated IR-CUT filter and infrared LED support. In daylight conditions, the IR-CUT filter operates in active mode to reduce color distortion; in low-light or nighttime conditions, the IR-CUT filter disengages and works together with the IR LEDs to support night vision.
This product operates via the Raspberry Pi CSI camera interface and is suitable for project development, security applications, low-light imaging, and embedded image processing scenarios.

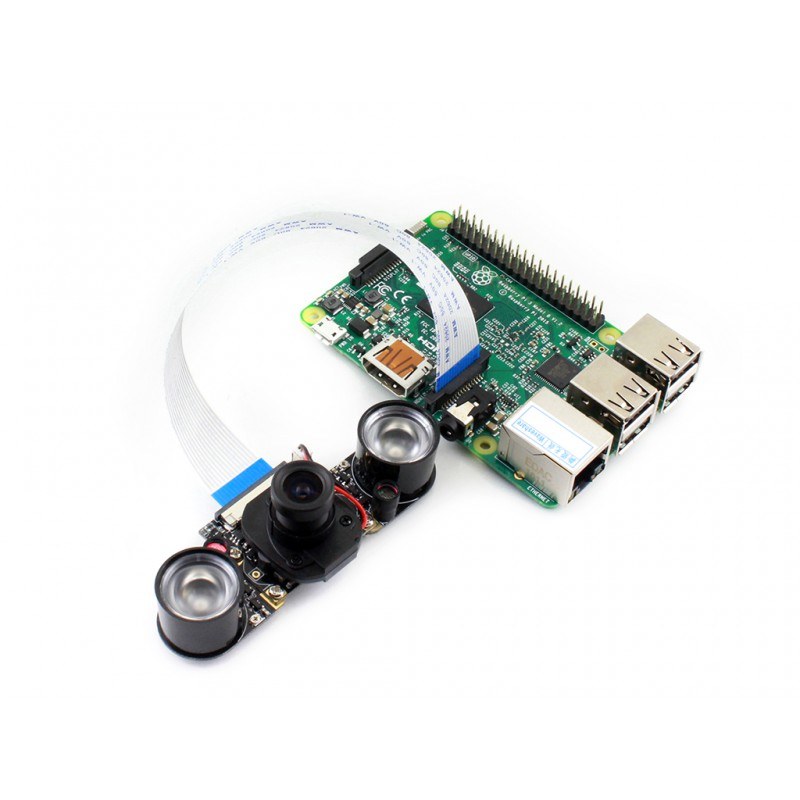

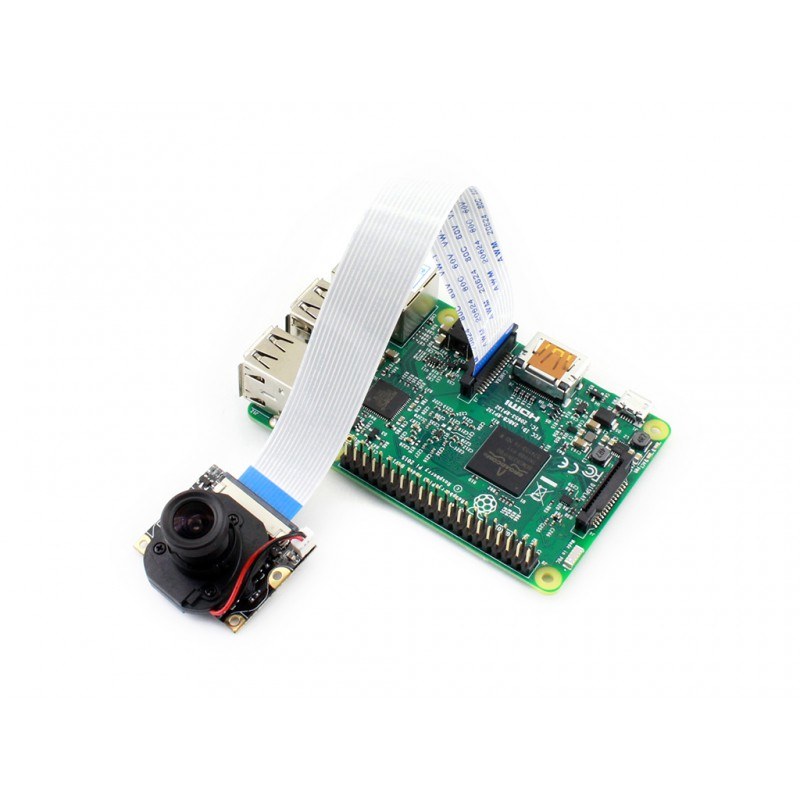

Important Compatibility Note: The 15-pin FFC camera cable included in the package is directly compatible with Raspberry Pi 3 / 3B+ / 4B models. For the Raspberry Pi Zero series, a Pi Zero camera cable is required.
The Raspberry Pi 5 features a different camera connector structure compared to previous models. The 15-pin FFC cable included in this product package cannot be connected directly to the Raspberry Pi 5. Raspberry Pi 5 users must separately obtain a compatible camera adapter and connection solution, and use the libcamera framework on a current Raspberry Pi OS.
Raspberry Pi Camera - IR-CUT Package Contents:
IR-CUT Camera Module x1

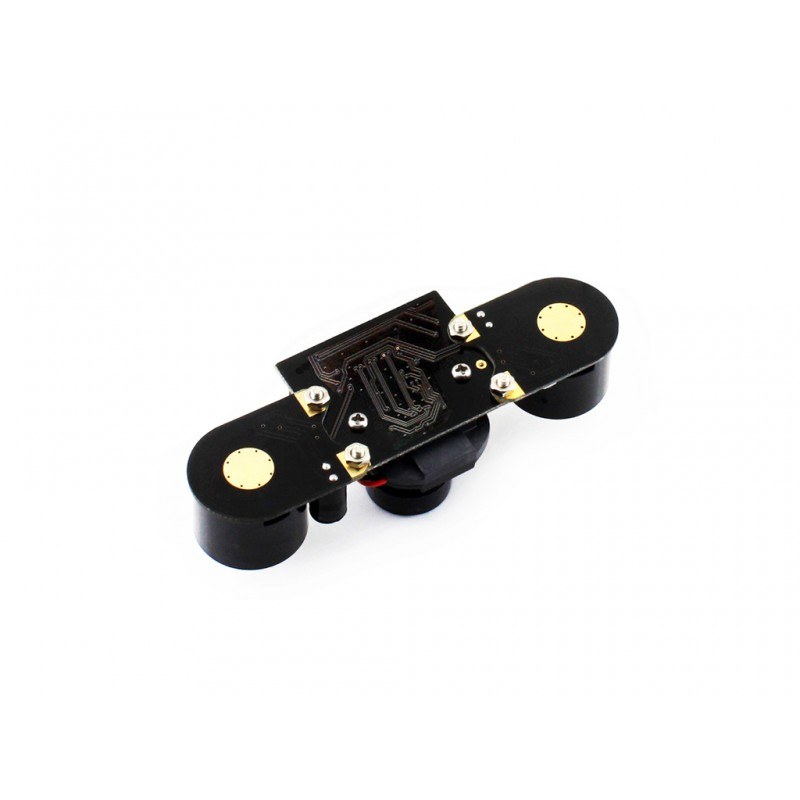

Infrared LED Board (B) x2
15-Pin FFC Camera Cable (16 cm) x1
Raspberry Pi Camera - IR-CUT Technical Specifications:
SENSOR: OV5647 CMOS, 5 Megapixels
Sensor size: 1/4 inch
IR-CUT filter: Integrated (supports day/night switching), removable if required
Infrared LED: Built-in IR LED support for night vision
Aperture (F): F2
Focal length: 3.6 mm
Adjustable focus: Yes
Angle of view (diagonal): 50°
Best sensor resolution: 1080p
Mounting: 4 screw holes
Power/Output: Provides 3.3V power output; supports IR LED and/or fill flash LED connection
Dimensions: 31 mm x 32 mm, lens diameter: 14 mm
FAQ (Frequently Asked Questions):
Q: Is this camera compatible with Raspberry Pi 5?
A: While Raspberry Pi 0–4 series mainly use a 15-pin CSI camera connector, Raspberry Pi 5 has a different camera connector structure. The 15-pin FFC cable included in this product cannot be connected directly to Raspberry Pi 5. To use this camera with Raspberry Pi 5, a compatible camera adapter and connection solution are required. In addition, camera operation on Raspberry Pi 5 is supported only via the libcamera framework.
Q: The camera is not detected / I get a “Camera not detected” error. Why?
A: The most common reasons include using an incorrect or incompatible flex cable, the cable not being fully seated in the connector, inserting the cable in the wrong orientation, or incorrect configuration of the camera software stack. In current Raspberry Pi OS versions, the camera system is based on libcamera by default. Using an incorrect framework or commands may result in the camera not being detected.
Q: Which camera library / framework should be used?
A: In current Raspberry Pi OS versions, the recommended camera framework is libcamera. On Raspberry Pi 3 and Raspberry Pi 4 models, this camera can operate with both libcamera and the legacy (older camera system). However, the legacy camera system is disabled by default in current OS versions and must be enabled manually. On Raspberry Pi 5, the legacy camera system is not supported and only libcamera can be used.
Q: Can I use this camera with the Raspberry Pi Zero series?
A: Yes, it can be used; however, Raspberry Pi Zero / Zero W / Zero WH models require a dedicated Pi Zero camera cable. The standard 15-pin camera cable included in the package is not directly compatible with the Zero series.
