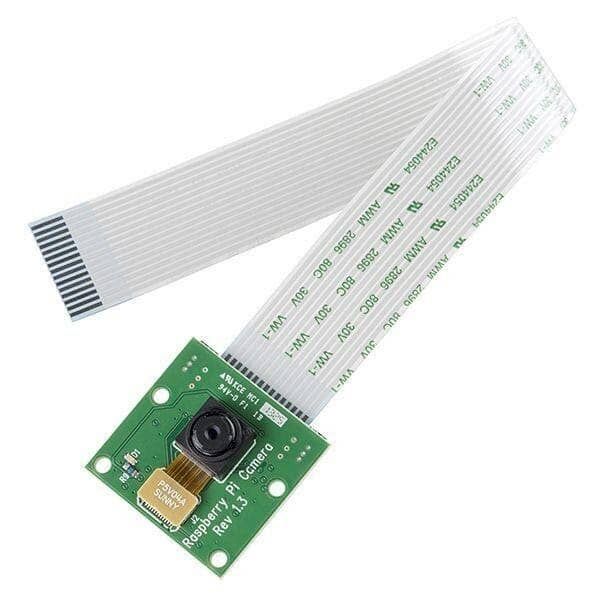

Raspberry Pi 3 and 4 Compatible Camera Module

Raspberry Pi 3 and 4 Compatible Camera Module

If you want to add an image to your Raspberry Pi projects, this camera module is for you! With the camera module that enables you to capture 1080p Full HD and 30fps images with 5 MP resolution, Raspberry Pi can detect images, process images in smart projects, and enable you to receive images remotely. The size of the card on which the camera is located is 25x20mm and its depth including the camera is 9mm. Being light and small will be very useful in the mini computer system you will install. There is a fixed focus lens on the 5 MP resolution camera. Offering a static image resolution of 2592 x 1944 pixels, the camera supports 1080p30, 720p60 and 640x480p60 / 90 resolution for video shooting. The camera module supports all operating systems running on Raspberry Pi.

Technicial Specifications:

• Manufacturer: China
• Dimensions: 25x20x9mm
• Resolution: 5 MP (2592x1944 pixels)
• Video Capture: 1080p, 720p and 640x480p
• Sensor Type: OmniVision OV5647 (5 megapixels)
• Sensor Size: 3.67 x 2.74 mmI
• Number of Pixels: 2592 x 1944
• Pixel Size: 1.4 x 1.4 um
• Lens: f = 3.6mm, f / 2.9
• View Angle: 54 x 41 degrees
• Field of View: 2.0 x 1.33 m at 2 m
• Full frame SLR lens equivalent: 35mm
• Fixed Focus: 1 m to Infinity
• Video: 1080p at 30 fps with Codec H.264 (AVC)
• Board size: 25 x 24 x 9mm (flex cable not included)
