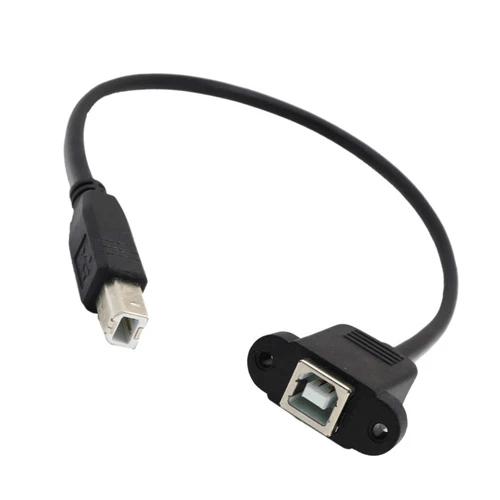

Panel Mount USB Cable - B Male to B Female

Panel Mount USB Cable - B Male to B Female

Handy USB extension cable will make it easy for you to enclose a device that has a B type port. We think this would be most handy when putting an Arduino in a box.

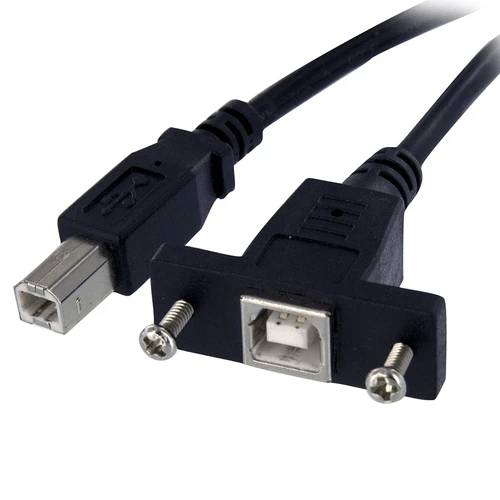

The jack half has two mounting 'ears' with M3 screws installed, 1.1" / 29mm apart. Can be used with box walls 0.125" to 0.25" wide. If you have a thinner-walled box, simply swap out the M3 screws for shorter ones. Cable, from connector to connector, is 13" long.

Technical Details:

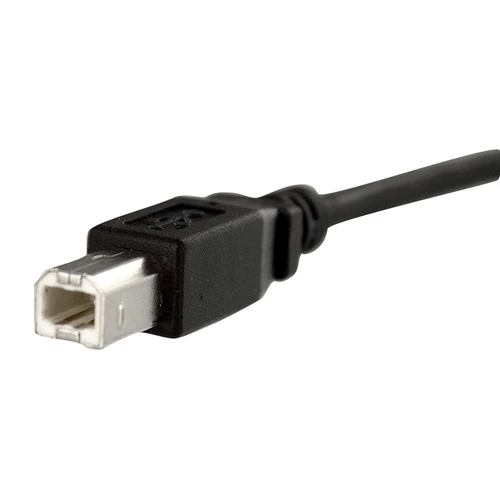

• Panel mount USB type B socket with USB type B plug at cable end
• 28 AWG data, 24 AWG power wires
• Length: 330mm / 13"
• Two M3 mounting screws, 1.1" / 29mm apart
• Panel mount end dimensions: 38mm x 14.5mm / 1.5" x 0.57"
