Orange Pi 5B

Brand
Orange Pi
Product Code
22282
İşlemci
Cortex-A76 Cortex-A55
Bağlantı Noktası
1xUSB3.1/2xUSB2.0/Type C
Kablosuz Bağlantı
Var
Hafıza
8GB
Fiyat
: 6,148.54 TL + VAT
KDV Dahil Fiyat
: 7,378.25 TL
Orange Pi 5B 8G64G

Orange Pi 5B adds wireless communication function Wi-Fi6 + BT5.0 module to Orange Pi 5. Wi-Fi supports 2T2R 802.11 ax/ac/a/b/g/n, using both 2.4GHz and 5GHz bands with MIMO standard.Wi-Fi using 2 antennas, 1 of which is shared with BT, using the PCIe 2.1 interface; BT5.0 uses UART/ PCM interface. Meanwhile, 32GB/64GB/128GB/256GB eMMC memory can be added to the Orange Pi 5.





Double the performance and drop the price dramatically!

RK3588S 8-core 64-bit processor + Orangepi OS

Orange Pi 5B uses Rockchip RK3588S new generation 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 4GB/8GB/16GB/32GB (LPDDR4/4x) and 32GB/64GB/128GB/256GB eMMC, with dual-band Wi-Fi6, BT5.0, and up to 8K display processing capability.
Orange Pi 5B provides abundant interfaces, including HDMI output, GPIO interface, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.; It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5B supports Orangepi OS, the official operating system developed by Orange Pi, as well as Android12 and Debian11,Ubuntu22.04,Ubuntu20.04





8K video codec for clearer images

Up to support 8K@60fps, the powerful video codec allows for clearer images and more detailed picture quality.


Supports Orange Pi OS(Droid)

With its self-designed Launcher, it provides users with the same operating habits as a regular computer to the maximum extent. the installation of Aurora Store allows users to run Facebook, Instagram, Twitter, YouTube, Telegram and other applications smoothly.

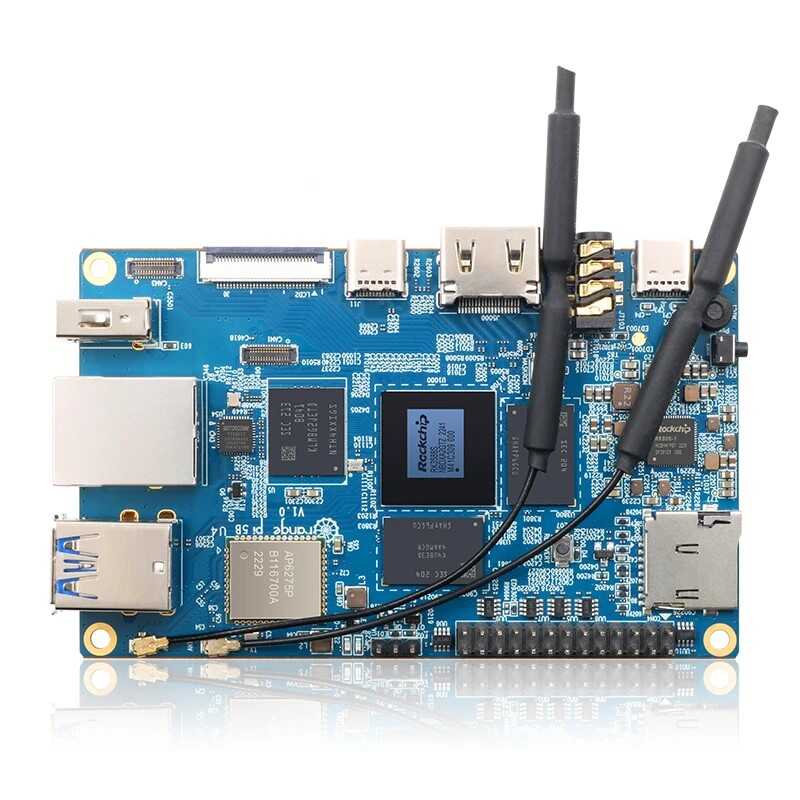

Üstten Görünüm

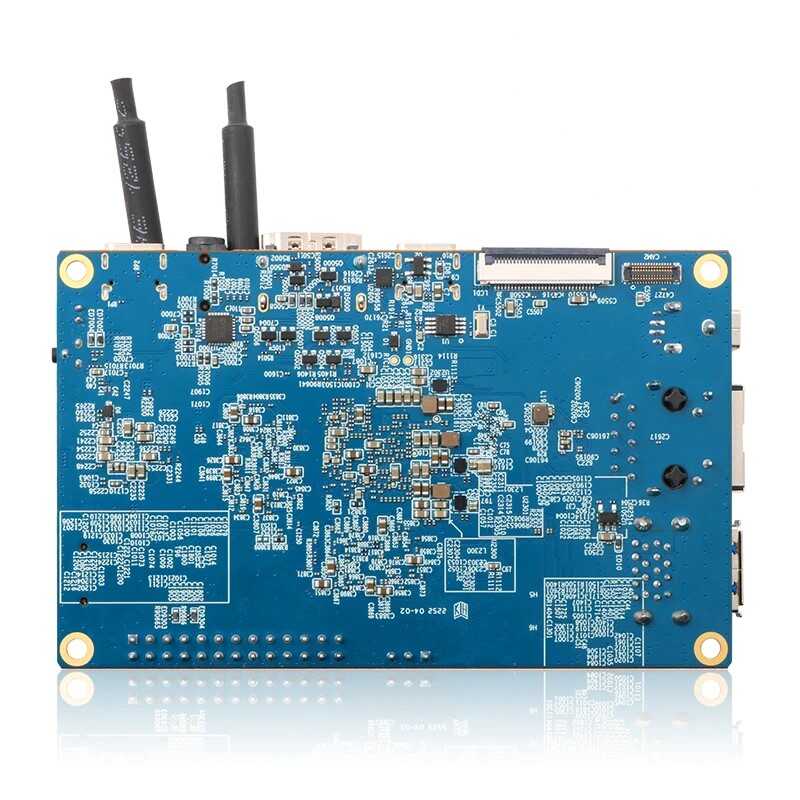

Alt Görüntü


Donanım Spesifikasyonu

SoC Rockchip RK3588S (8nm LP process)
CPU • 8-core 64-bit processor
• Big.Little Architecture: 4 * Cortex-A76 and 4 * Cortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU • Arm Mali-G610 MP4
• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
• 3D graphics engine and 2D graphics engine
NPU Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU RK806-1
RAM 4GB/8GB/16GB/32GB(LPDDR4/4x)
Memory • 32GB/64GB/128GB/256GB eMMC
• MicroSD (TF) Card Slot
USB USB3.1 * 1
USB2.0 * 2
Type-C (USB3.1) * 1
Video Output • HDMI2.1, up to 8K@60Hz
• DP1.4 (DisplayPort), maximum output resolution up to 8K@30Hz
• 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera • MIPI CSI 4Lane
• 2 * MIPI D-PHY RX 4Lane
Audio CODEC: ES8388
• 3.5mm headphone jack audio input/output
• Input: Onboard MIC
• HDMI 2.1 eARC
Ethernet 10/100/1000Mbps Ethernet
Expansion Port For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces
Wi-Fi, BT module On-board Wi-Fi6+BT 5.0 module, Wi-Fi6 interface: PCIe, BT interface: PCM+UART
Button 1 * MaskROM key
1 * Recovery key
1 * On/Off key
Power Source Support Type-C power supply, 5V@4A
LED Power indicator: red
Status indicator: green
Debugging 3 Pin debug serial port (UART)
Supported OS Orangepi OS(Droid)、Orangepi OS(Arch)、Debian11、Ubuntu22.04、Ubuntu20.04、Android12





Görünüm spesifikasyonu tanıtımı

Dimension 62mm*100mm
Weight 52g
