Microwave Radar Module - RCWL-0516

Product Code
Brand / Origin
Without Vat
18.26 TL



Buy wholesale for more discount!
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product



  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

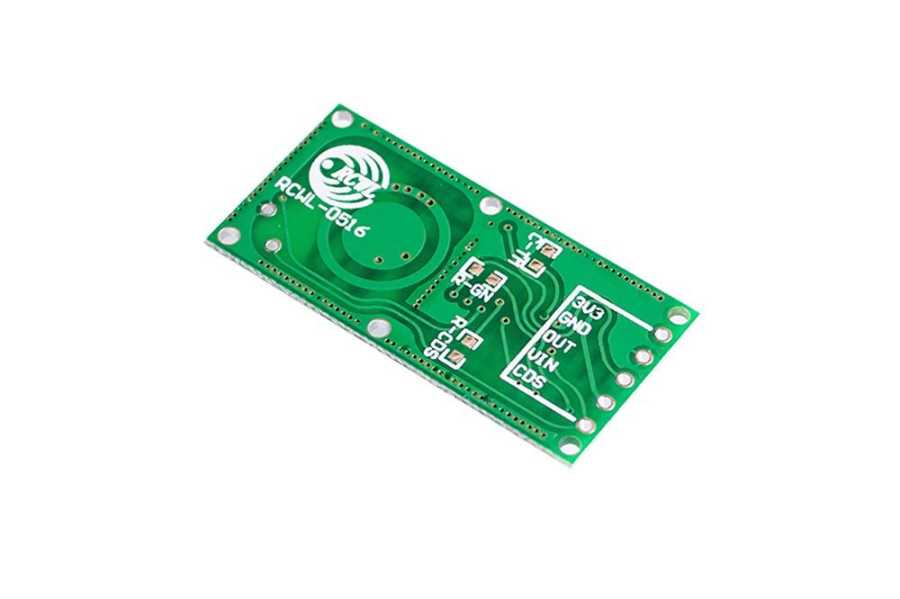

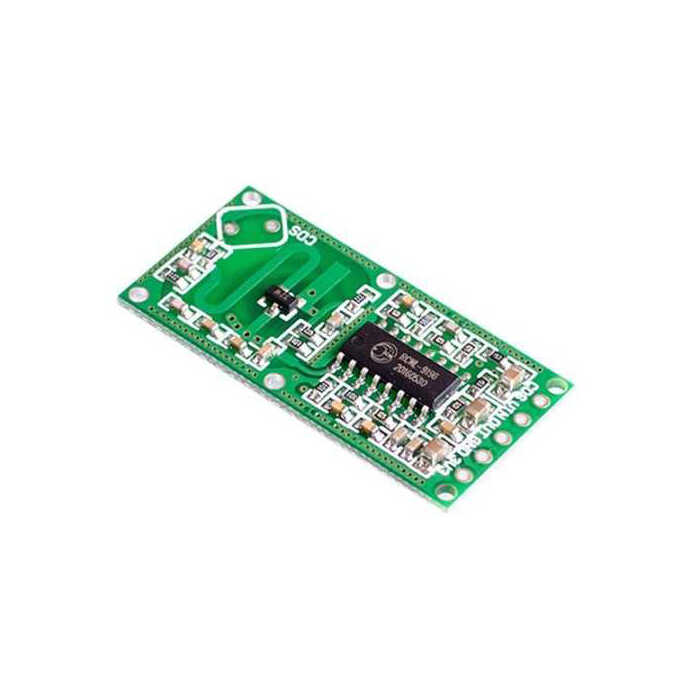

  • The RCWL-0516 is a doppler radar microwave motion sensor module which can act as an alternative to a PIR motion sensor. Instead of sensing changes in infra red radio emitted by a moving person this sensor uses a microwave Doppler radar to detect moving objects. It has a sensitivity range of ~7 meters. When triggered its trigger output pin will switch from (LOW) 0V to high (3.3V) for ~ 2 to 3 seconds before returning to its idle LOW state

    Technical Specification:

    • Operating Voltage: 4-28V
    • Operating Current: 2.8mA (typical); 3mA (max)
    • Operating Frequency: ~ 3.2GHz
    • Detection Distance: 5-9m
    • Transmission Power: 20mW (typical); 30mW (max.)
    • Sensor Output Voltage: 3.2-3.4V
    • Capacitance Current of Sensor Output: 100mA
    • Triggering Path: Repetitive Triggering
    • Output Signal Low Level: 0V
    • Output Signal High Level: 3.3V
    • Working Temperature: -20 ~ 80C

    Adjustment Part Introduction:

    • C-TM: Adjust repeat trigger time,default trigger time is 2s;increasing capacitor's capacity will make repeat trigger time longer;and actual counting trigger time can operate as below: Stick capacitor on C-TM,test 9196 3-pin frequency F,repeat trigger time T=(1/f)*32768
    • R-GN: Detection distance adjustment;connect with resistor and detection distance will become shorter;if not connect,detection distance is 7m;if connect with 1M ohm resistor,detection distance is 5m
    • R-CDS: Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS ,CDS connects with photoresistor,you can close detection function at night.


    • 3V3: 3V3 power output
    • GND: ground
    • OUT: control output;when detect moving objects,it will output high level
    • VIN: input voltage,4-28V
    • CDS: enable control chip,lower than 0.7V,OUT will output low level all the time


    • No metal should be placed just in front of the induction side
    • Front / back side must leave more than 1 cm clearance
