MAX232 - DIP16 IC

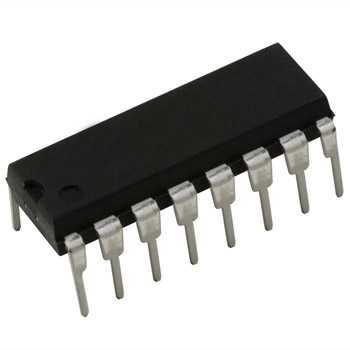

MAX232 IC DIP-16

The MAX232 is a bidirectional driver/receiver IC that converts signals between TTL and RS-232 levels. It is commonly used in microcontroller-based systems to enable serial communication with computers or other RS-232 devices. The IC includes two transmitters (drivers) and two receivers, allowing full-duplex serial communication with a single chip. The MAX232 features an internal charge pump circuit, eliminating the need for an external negative voltage supply while generating ±10V RS-232 signals.

MAX232 IC DIP-16 Specifications:

• Communication type: TTL ↔ RS-232 level converter

• Operating voltage: 4.5V – 5.5V

• Includes 2 transmitters (Tx) and 2 receivers (Rx)

• Built-in charge pump circuit (no external negative voltage required)

• Maximum data rate: 120 kbps

• Operating temperature range: 0°C – 70°C

• Package type: DIP-16

• Applications: Microcontroller-to-PC serial communication, industrial communication systems
