Li-ion Batarya HAT Raspberry Pi Uyumlu

Ürün Kodu
:
18311
Marka / Menşei
:
WaveShare
Miktar
:
3
Fiyat
:
125,36 TL + KDV
KDV Dahil Fiyat
:
147,92 TL
Aynı Gün Kargo
Saat 15:00’e kadar yapılan alımlarda aynı gün kargo imkanı
Alışveriş Listeme Ekle
Bu ürünü listenize ekleyerek daha sonra inceleyebilirsiniz.
Yorum Ekle
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Öneri Kutusu

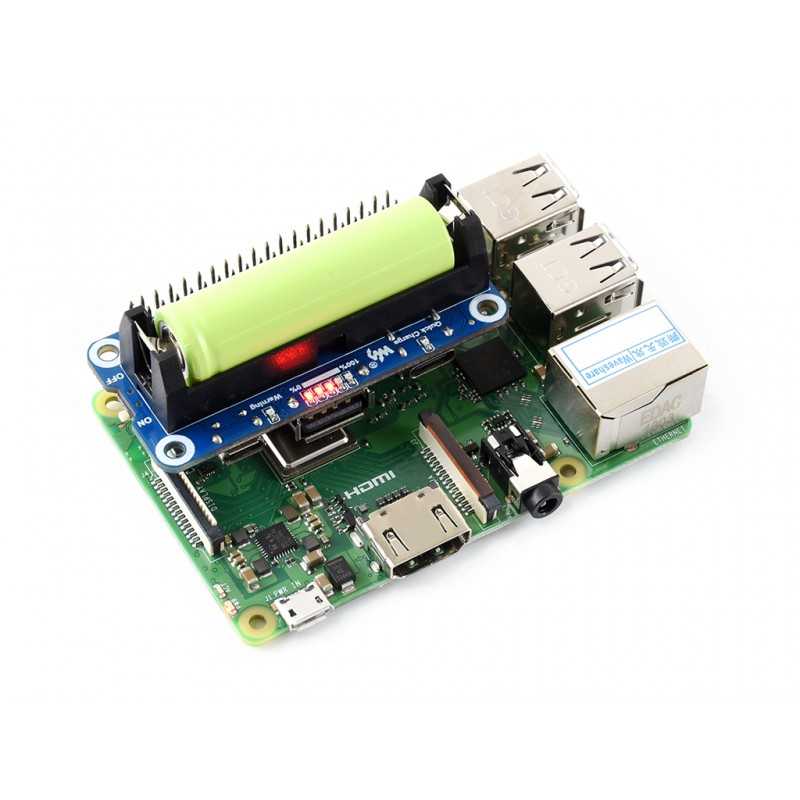

  • The Li-ion Battery HAT integrates SW6106 power bank management chip, allows providing 5V regulated power supply to your Pi from a 14500 battery, makes the Pi becomes a portable device. It will charge the battery as well, supports bi-directional quick charge. This module can be used as a universal mini power bank, also works with other 5V devices.

    Features:

    • Onboard SW6106 chip, supports bi-directional quick charge, supports multi quick charge protocols like PD/QC/FCP/PE/SFCP
    • Lithium battery protection circuitry, provides reverse protection, over charge/discharge protection, over current protection, and short circuit protection
    • Onboard indicators: quick charge, warning, and power capacity

    Specifications:

    • Output voltage: 5V
    • Applicable battery: 3.7V 14500 lithium battery (4.2V when full charged)
    • Dimension: 65mm × 30mm
    • Mounting hole size: 3.0mm

    What's on Board:

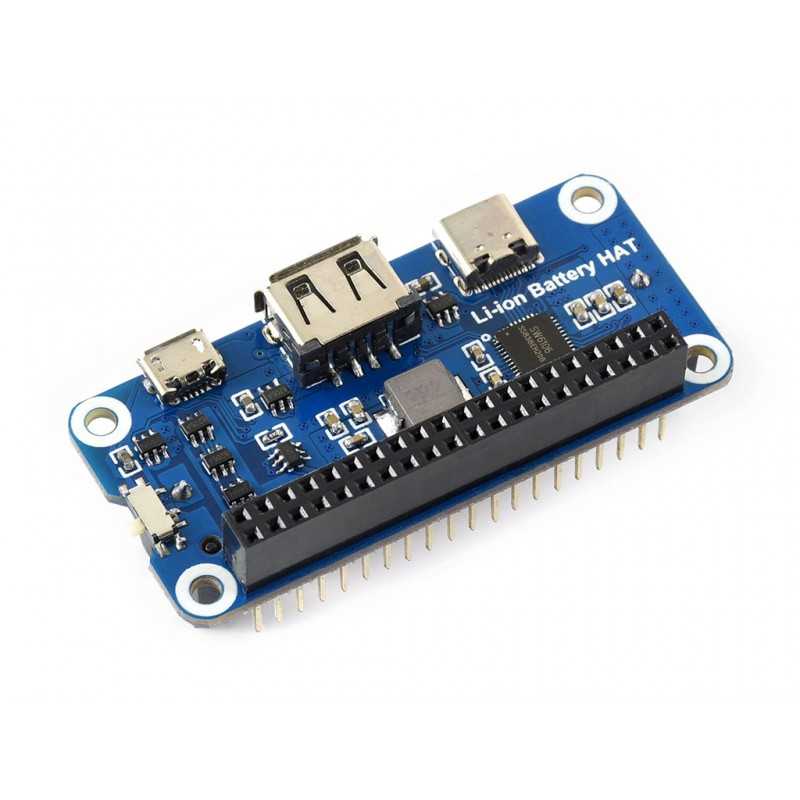

    Li-ion Battery HAT on board resource
    1-Raspberry Pi GPIO connector: for connecting Raspberry Pi
    2-SW6106 power management chip
    3-USB Type-C connector: battery charge/power output
    4-USB Type-A connector:power output
    5-Micro USB connector:battery charge
    6-Raspberry Pi power switch
    7-Battery warning indicator: on when the battery is reverse
    8-Battery power capacity indicator: 5x LEDs to indicate the power capacity and charging status
    9-Quick charge indicator: on when quick charging

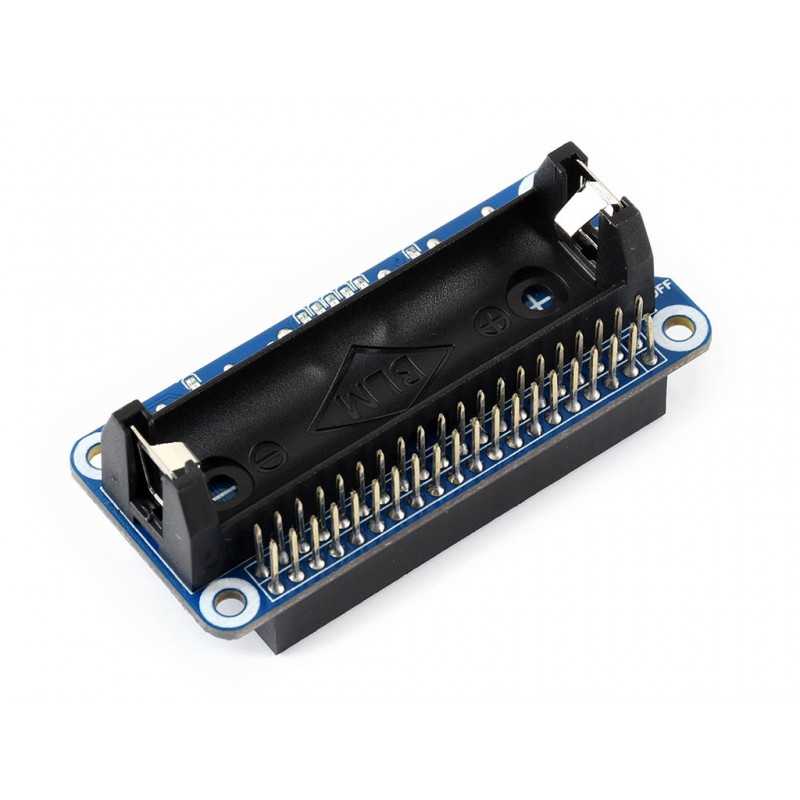

    10-14500 battery holder

    Dimension:

    Documents:

    Wiki


    PACKAGE CONTENT:

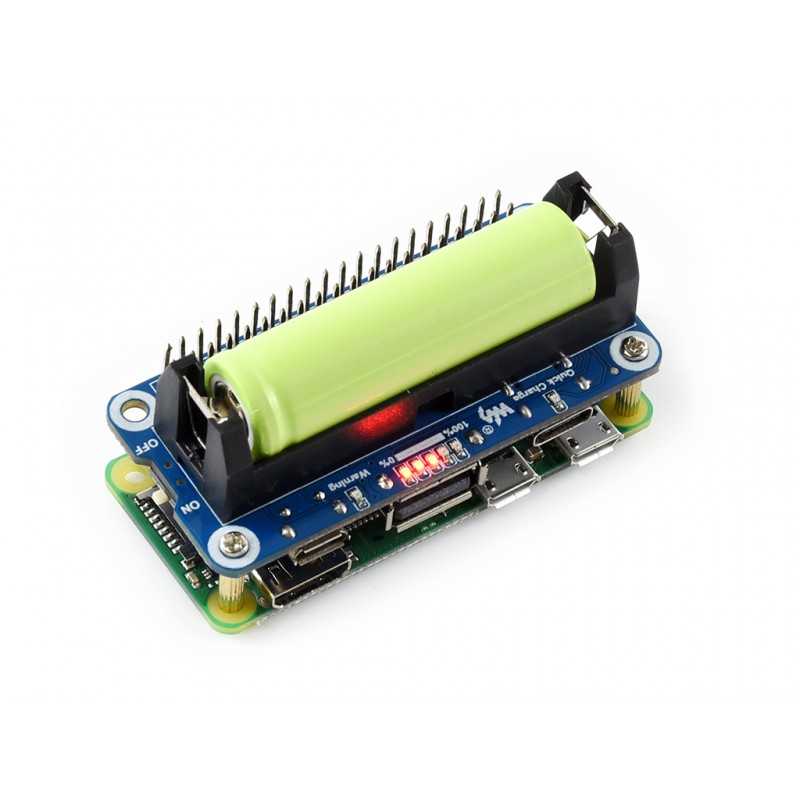

    Note: the Raspberry Pi and 14500 battery in the photo are NOT included.

    1. Li-ion Battery HAT x1
    2. RPi screws pack (2pcs) x1
