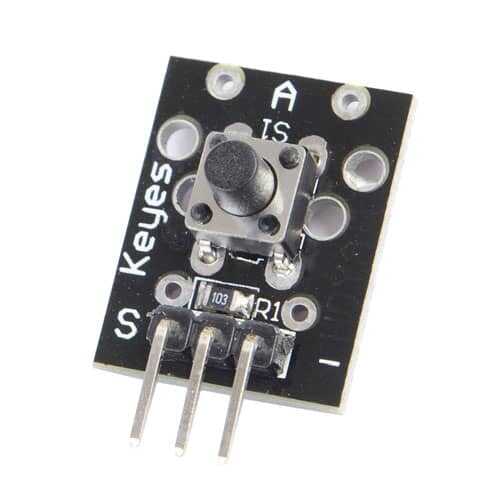

KY-004 Buton Switch Module

Name: KY-004 Buton Switch Module
Brand: Robotistan
SKU: 20486
Price: 19.40 TRY
Availability: InStock

Brand

: Robotistan

Product Code

: 20486

Fiyat

: 16.17 TL + VAT

KDV Dahil Fiyat

: 19.40 TL

Money Order Price : 18.82 TL %3 Discount

KY-004 Buton Switch Module

KY-004 Switch Module is a push button that will output a high signal when pressed.

Specifications:

The module consists of a FZ1713 tactile push button switch and a resistor. Compatible with popular electronics platforms like Arduino, Raspberry Pi and Esp8266.

Rating	50mA 11VC
Environment temperature	-25°C to 105°C [ -13°F to 221°F]
Electrically Life	100,000 cycles
Operating Force	180/230(±20gf)
Dimensions	18.5mm x 15mm [0.728in x 0.591in]

KY-004 Connection Diagram:

Connect the power line (middle) and ground to +5V and GND respectively. Connect signal (S) to pin 3 on the arduino.

KY-004	Arduino
S	Pin 3
middle	+5V
-	GND

Click to watch product’s video

Product Usage Video
