ICL8038 Function Signal Generator Circuit (Unassembled)

ICL8038 Function Signal Generator Circuit (Unassembled)

The ICL8038 Function Signal Generator Circuit is a high-performance monolithic signal generator kit designed to produce sine, triangle, and square wave signals for your electronic projects. Offered in an unassembled form, this product allows users to build their own circuits and is an excellent choice for electronics learning. With its compact design and wide frequency range, it can be used in various applications.

ICL8038 Function Signal Generator Circuit Technical Specifications:

• Operating Voltage: DC 12V

• Operating Current: 9mA

• Frequency Range: 50Hz - 7.5KHz

• Duty Cycle: 27% - 63% (Square Wave)

• Signal Types: Sine Wave, Triangle Wave, Square Wave

• Dimensions: 57 x 39 x 2 mm

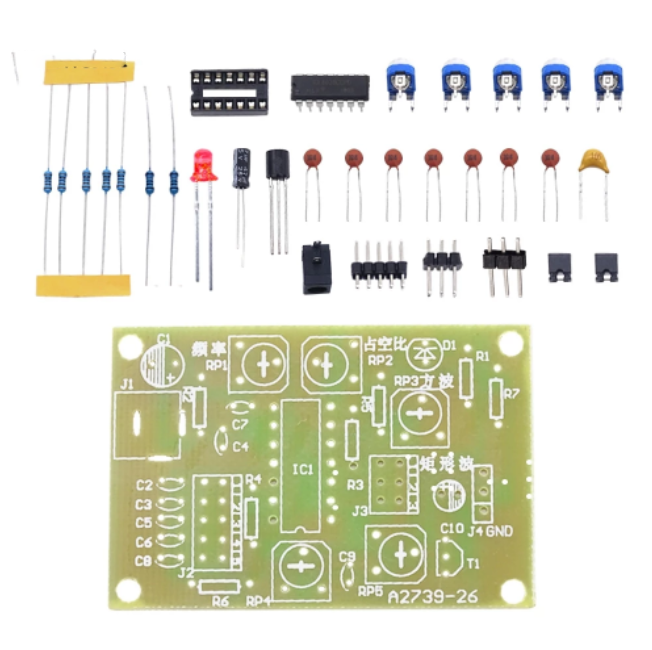

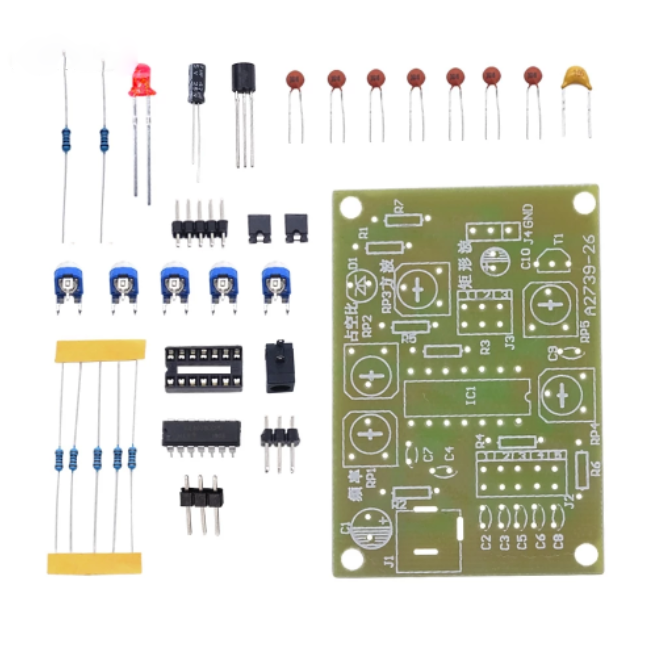

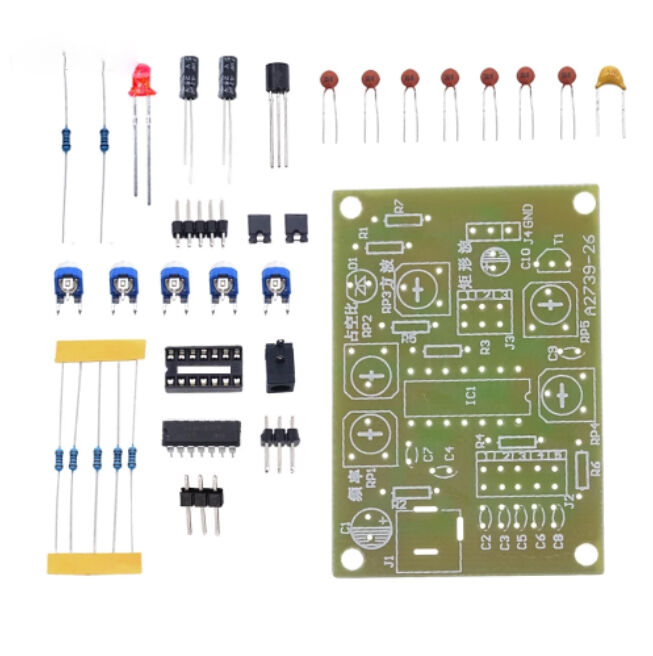

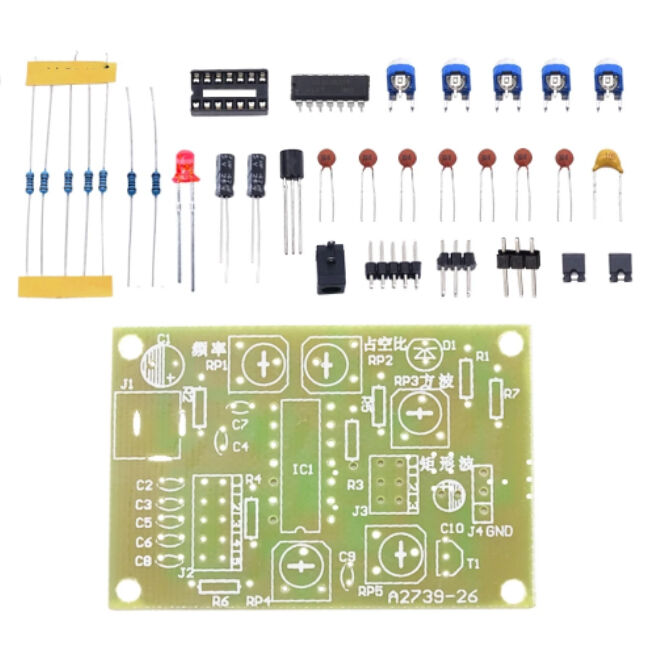

Package Contents:

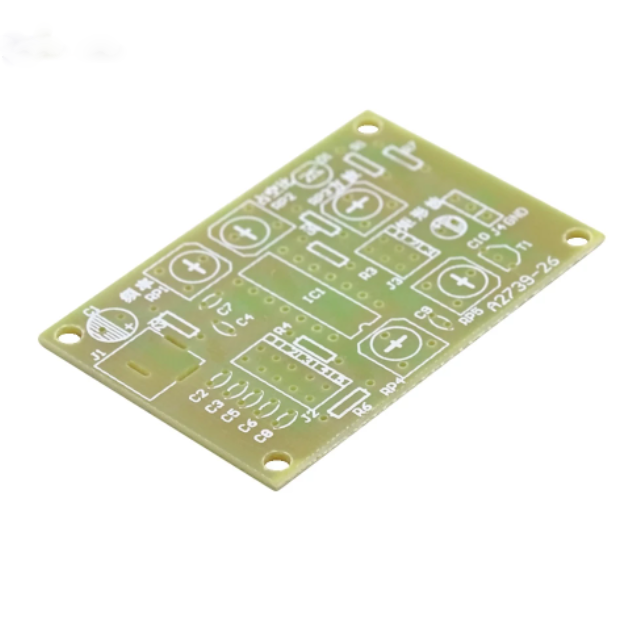

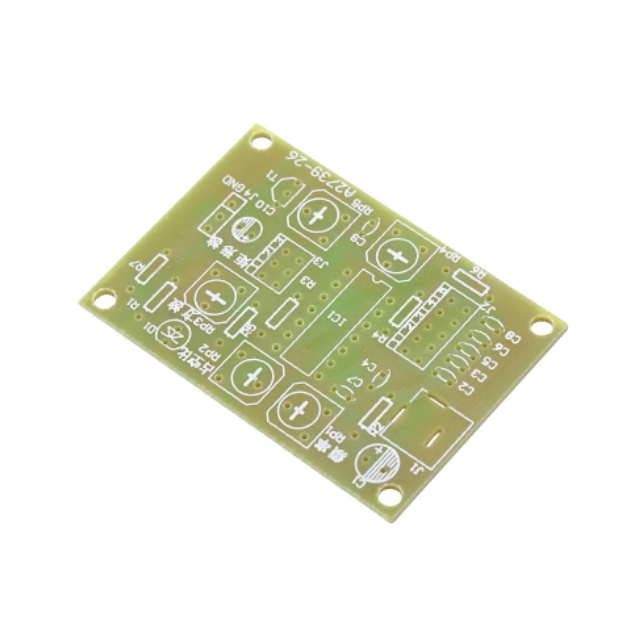

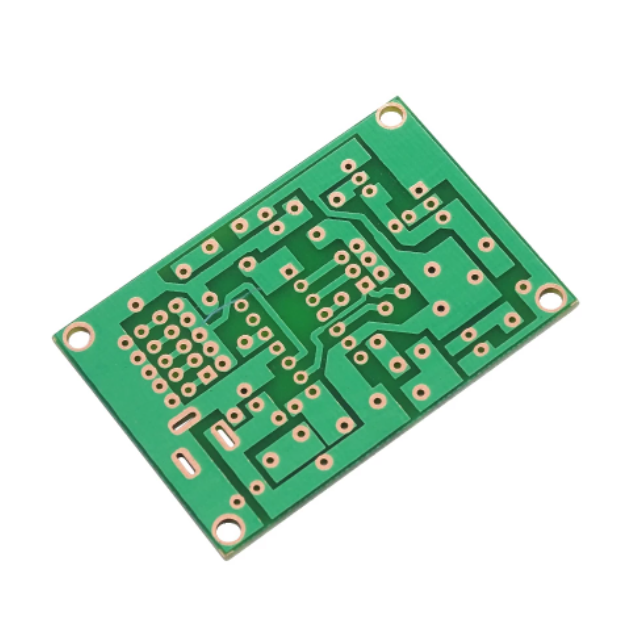

• ICL8038 Function Generator PCB - 1 piece

• ICL8038CCPD Integrated Circuit - 1 piece

• IC Socket - 1 piece

• NPN BJT Transistor - 1 piece

• LED - 1 piece

• DC Barrel Female Power Jack - 1 piece

• 100K ohm Trimmer Potentiometer (Trimpot) - 5 pieces

• 110 ohm Resistor - 5 pieces

• 12k Resistor - 1 piece

• 20K Resistor - 1 piece

• 47 µF 25V Electrolytic Capacitor - 1 piece

• 10 µF 25V Electrolytic Capacitor - 1 piece

• 1 µF 50V Ceramic Capacitor (105) - 1 piece

• 0.1 µF 50V Ceramic Capacitor (104) - 4 pieces

• 1 nF 50V Ceramic Capacitor (102) - 1 piece

• 10 nF 50V Ceramic Capacitor (103) - 1 piece

• 33 pF 50V Ceramic Capacitor (33) - 1 piece

• 3 Pin (1x3) 2.54mm Male Pin Header - 1 piece

• 6 Pin (2x3) 2.54mm Male Pin Header - 1 piece

• 10 Pin (2x5) 2.54mm Male Pin Header - 1 piece

• 2 Pin 2.54mm Short Circuit Jumper - 2 pieces
