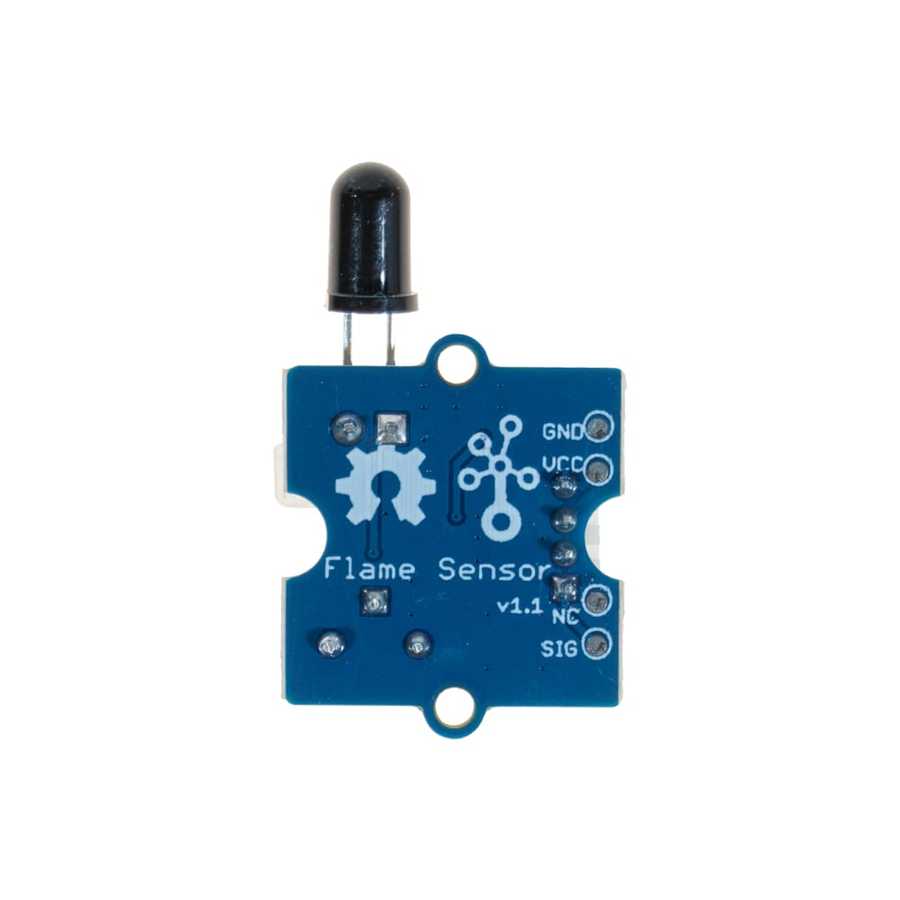

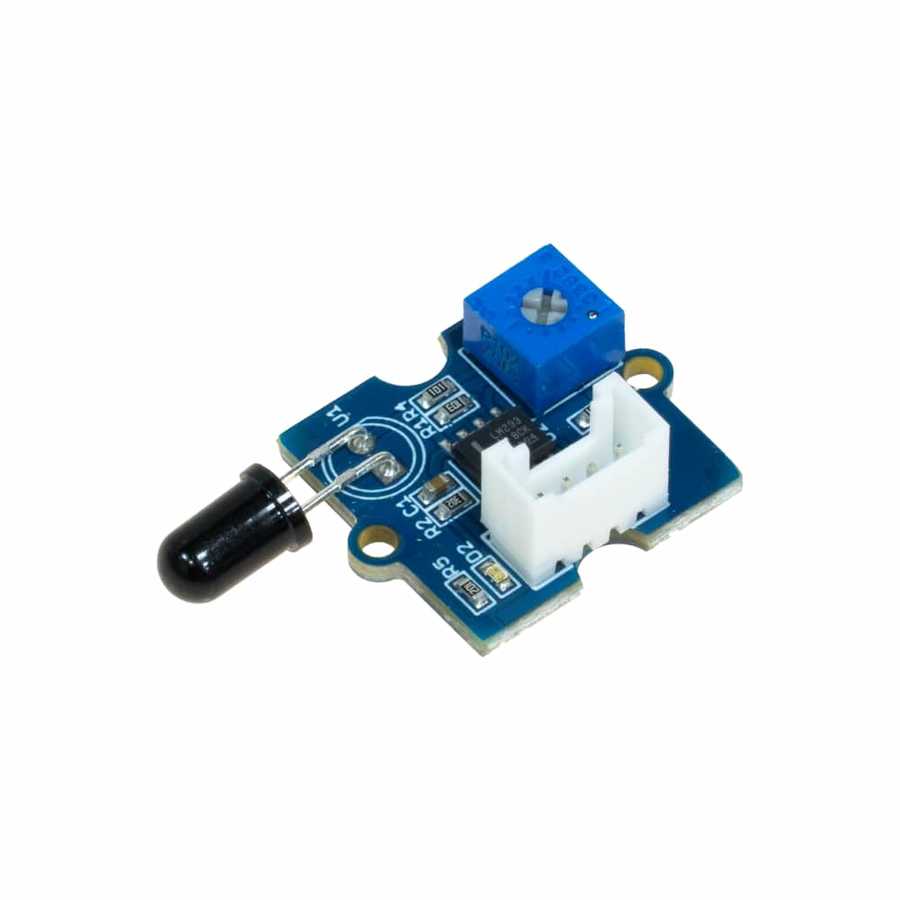

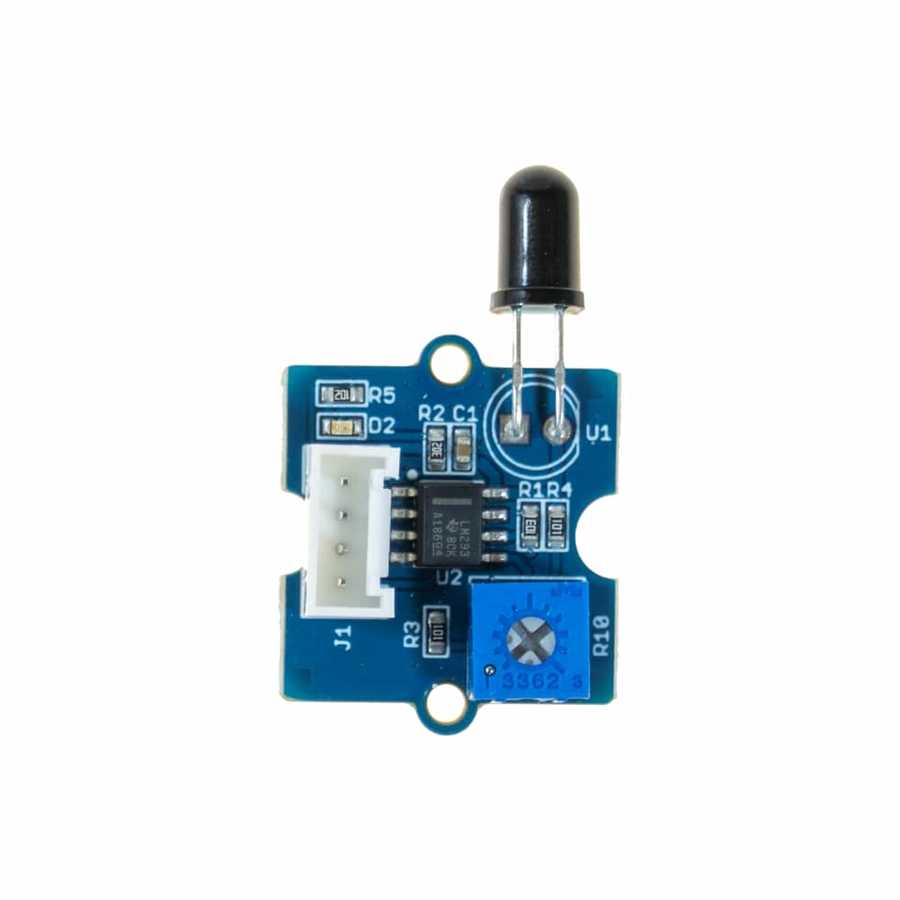

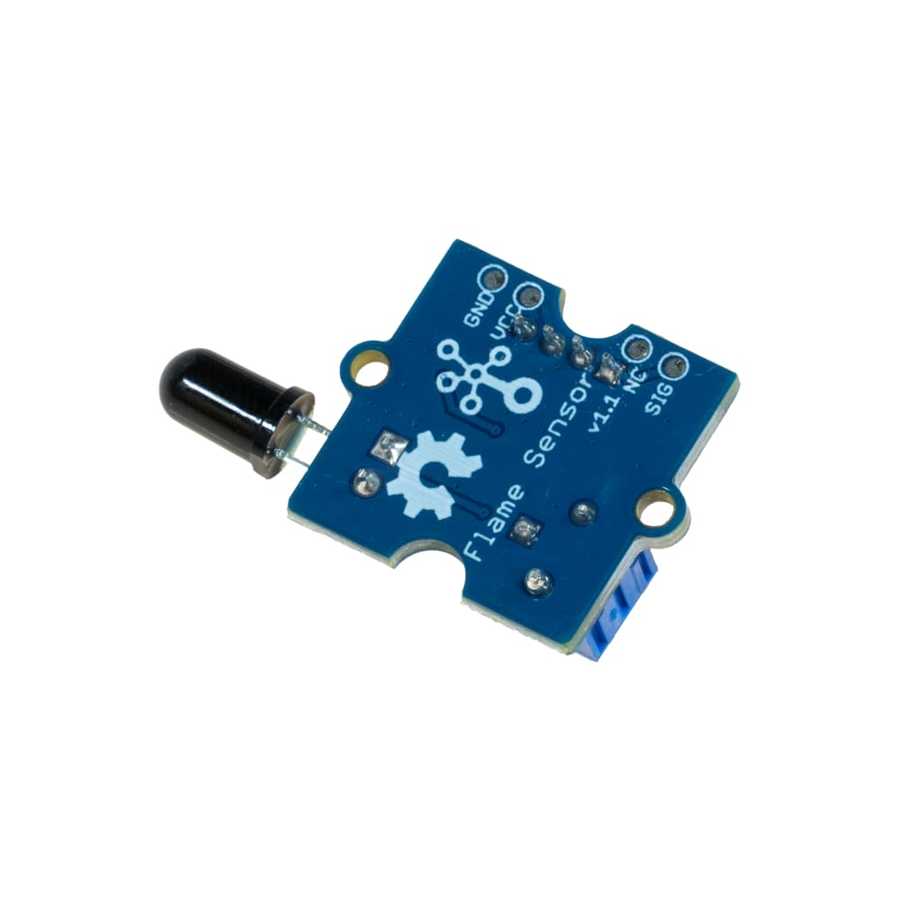

The Grove Flame Sensor can detect fire or other light sources within the wavelength range of 760nm to 1100nm.
The module has a high-speed and high-sensitivity NPN YG1006 silicon phototransistor. Thanks to its black epoxy coating, it is also sensitive to infrared rays.
The sensor module provides a digital output. Sensitivity can be adjusted with the potentiometer on the module. Under normal conditions, the pin output is HIGH; when the sensor detects something, it switches from HIGH to LOW.
|
Min |
Standard |
Max |
Unit |
|
|
Operating Voltage |
4.75 |
5.0 |
5.30 |
VDC |
|
Current |
/ |
20 |
/ |
mA |
|
Spectral Bandwidth |
760 |
940 |
1100 |
nm |
|
Detection Distance |
0 |
~ |
1 |
m |
|
Response Time |
15 |
μS |
||
|
Operating Temperature |
-25 |
~ |
85 |
℃ |
