Grove - Q Touch Sensor

Product Code
:
13951
Brand / Origin
:
SeeedStudio
Quantity
:
7
Without Vat
:
337.03 TL
Discount Price
:
303.33 TL
%10
Quantity:

-

+

Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • You can use your control panel easily even with very sensitive touchs by using this module which has 3 keys.

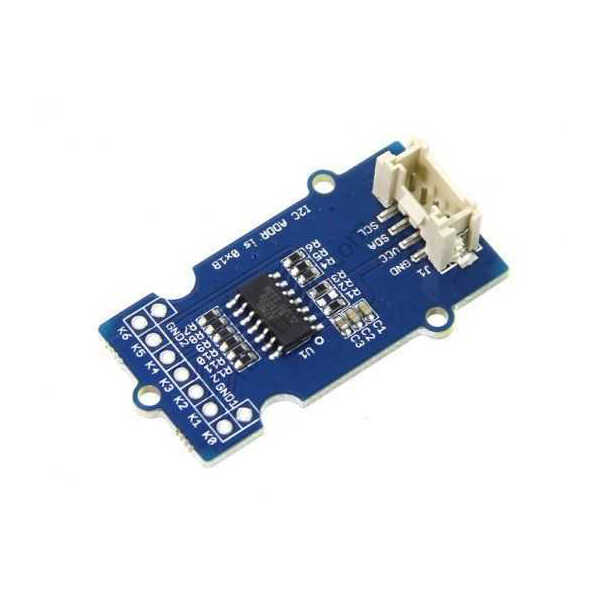

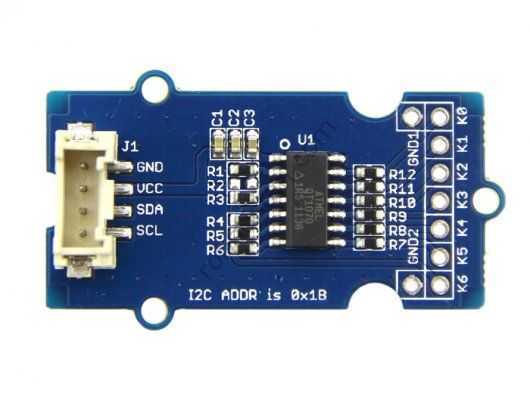

    The Q Touch Sensor is a high sensitivity and high noise immunity touch input device.It is based on Atmel AT42QT1070. The AT42QT1070 modulates its bursts in a spread-spectrum fashion in order to heavily suppress the effects of external noise, and to suppress RF emissions. The QT1070 uses a dual-pulse method of acquisition. This provides greater noise immunity and eliminates the need for external sampling capacitors, allowing touch sensing using a single pin.

    Features:
    • Operating Voltage: @3.3V: 1mA
    • Operating Current: 3~5.5V

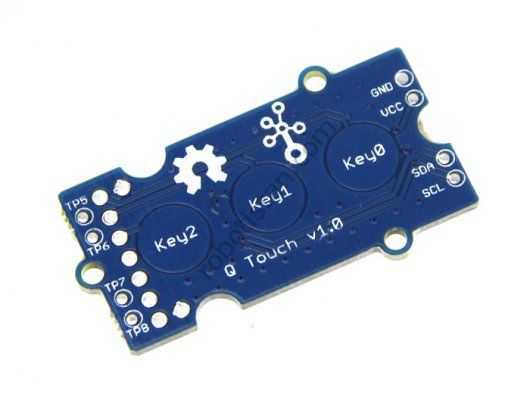

    • Touch Keys: 7 Keys ; key0 ,key1 ,key2 are on the Grove PCB bottom side
    • Communicating Protocol: I2C
    • I2C Address: 0x1B

    Documents and Useful Links:
