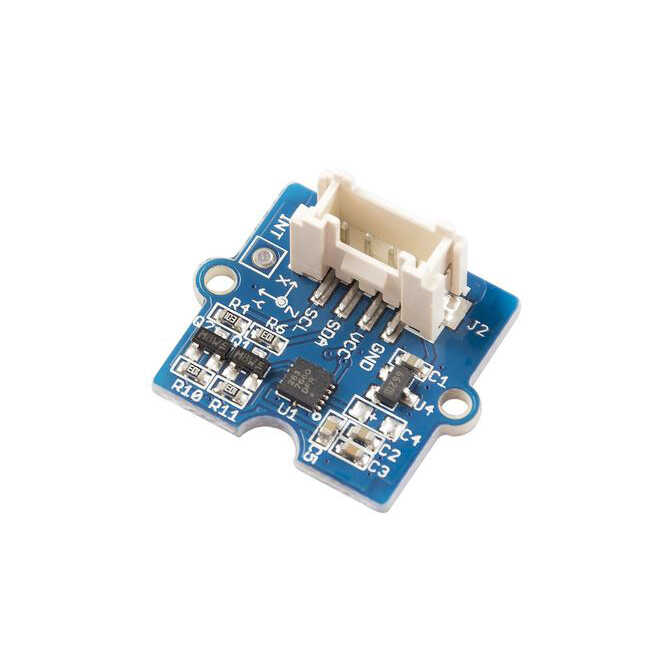

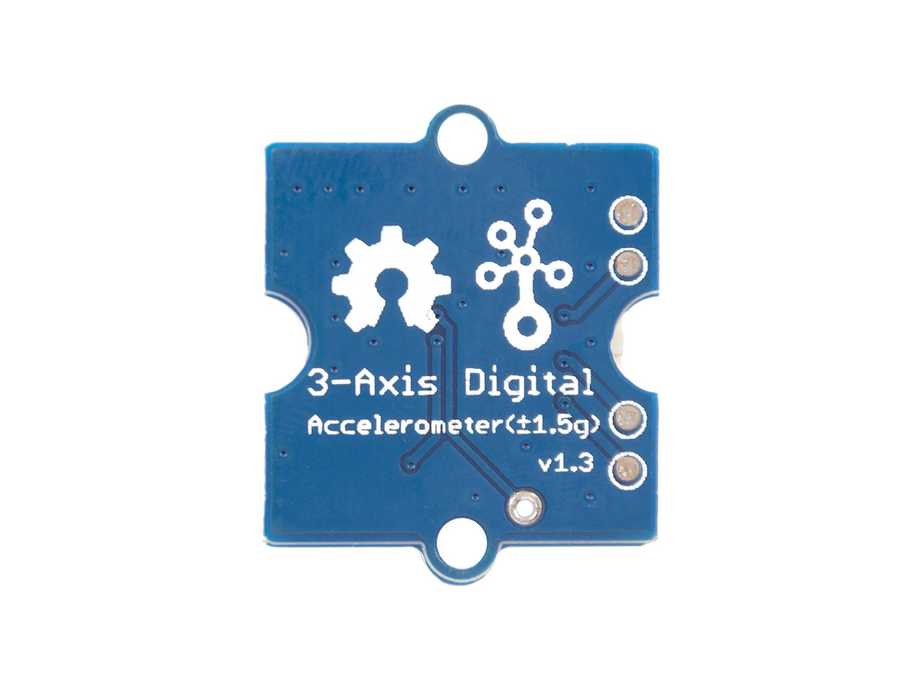

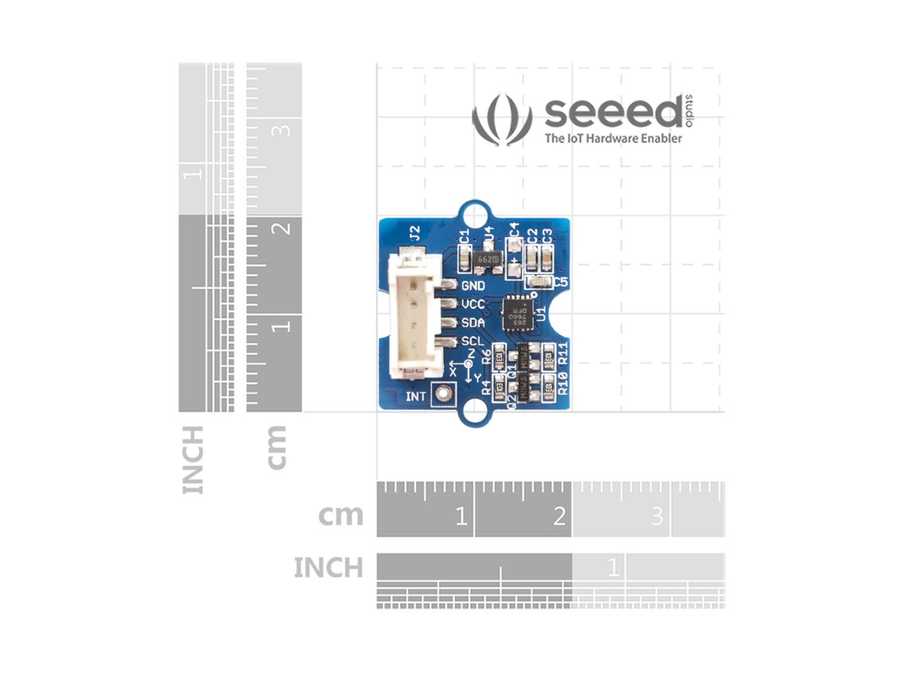

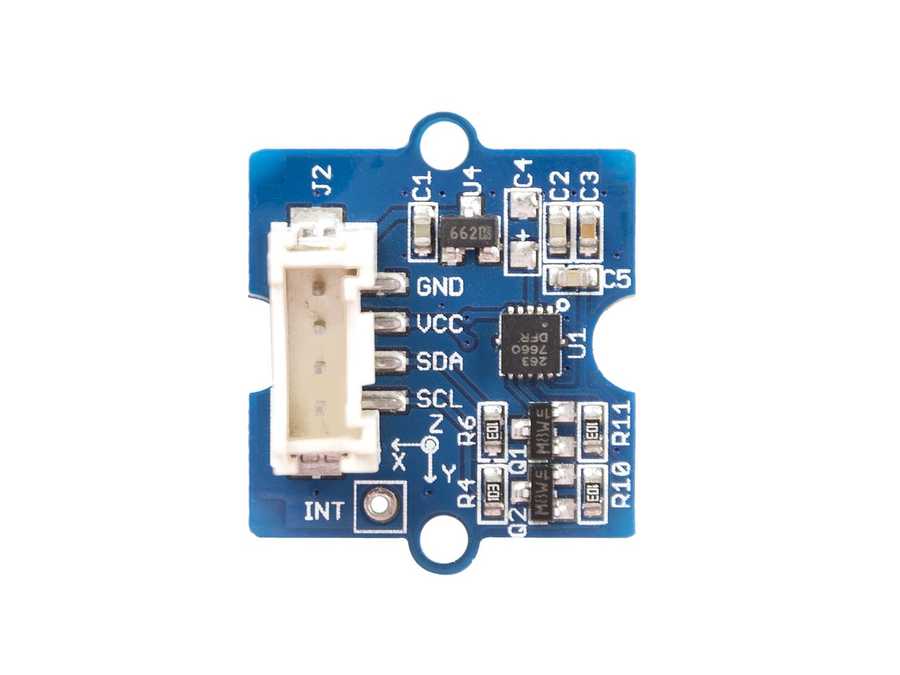

Grove - 3-Axis Digital Accelerometer (±1.5g)

Grove – 3-Axis Accelerometer (±1.5g)

The 3-Axis Accelerometer is one of the important components of direction finding and motion detection projects. This module uses the low-power MMA7660FC sensor. It provides output on 3 axes.
It has a sensitivity of 21LSB/g. Communication with the Grove Base Shield is carried out via the I2C port.

It is an affordable, low-power module that can be used in general projects that do not require a very wide measurement range. You can access the model ship project using this module here.

How to use a 3-Axis Accelerometer with Arduino®?

Grove – 3-Axis Accelerometer (±1.5g) Technical Specifications:

• Operating Voltage: 3.3 / 5 V
• Off Mode Current: 0.4μA
• Standby Mode Current: 2μA
• Active Mode Current: 47 μA at 1 ODR
• Sensitivity: 21LSB/g

Products That Can Be Used Together:

• Grove Base Shield V2 (compatible with Arduino®)
• Grove Base Shield for NodeMCU
• Particle Photone Grove Base Shield
• Other Grove Products
• Development Boards Based on Arduino®
• Original Arduino® Boards

Documents / Useful Links:

• Wiki Page
• MMA7660FC Datasheet
• Grove - 3-Axis Digital Accelerometer Eagle File
• 3-Axis Digital Accelerometer (±1.5g) GitHub repository
• Arduino® IDE
• Grove Projects
