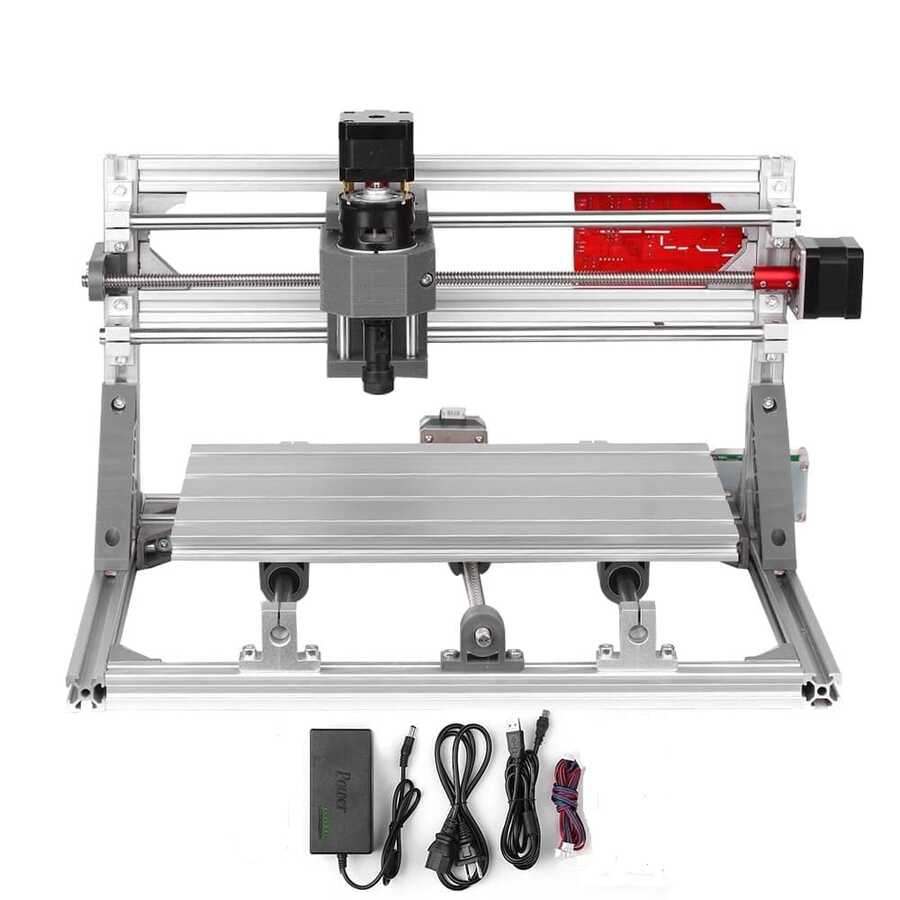

CNC3018 DIY Mini Desktop Engraving Machine Laser CNC Picture Woodworking Engraving Machine GRBL Control EU Plug without Laser

CNC3018 DIY Mini Desktop CNC Machining Machine - (Image Woodworking Engraving Machine GRBL Control - EU Plug) – Non-Laser

The DIY Mini Desktop CNC Machine is a multi-functional desktop CNC device (non-laser version). This DIY CNC engraving machine is specially designed for DIY fun, hobbyist work, and research, featuring professional GRBL control software that provides an extraordinary portable experience. Containing a specialized development board similar to an Arduino, this device is ideal for your hobby projects. With this machine, you can engrave and shape many materials such as plastic, wood, acrylic, PVC, PCB, MDF, etc. You can easily use this product as a wood carving and woodworking machine. It is suitable for those with entry-level electronic and mechanical knowledge. Arriving as a completely disassembled kit with a very easy installation process, you will own your own desktop CNC machine. The package includes an installation manual containing all the necessary information for setup. It is very easy to use and connect. You can check our other DIY Mini CNC Machining Machines by clicking here.

CNC3018 DIY Mini Desktop CNC Machining Machine Technical Specifications:

• Model: CNC3018
• Material: Aluminum + Plastic
• Main Color: Silver
• Power Supply: 110-240V/AC
• Output Voltage: 24V
• Supported Operating System: Windows XP / Win 7 / Win 8 / Win 10 (32/64 bit)
• Supported Formats: jpg / bmp / ​​png
• Communication Port: Micro USB
• Spindle: 775
• Drill Bits: 0.1mm, Diameter: 3.175mm, 30°
• Spindle Motor 24V: 8000r/min
• Spindle Chuck: ER11
• Torque: 0.25N/m
• Software: GRBL Control
• Engraving Modes: Image Engraving, Text Engraving, Scanning Engraving, Contour Engraving, Pixel Engraving
• Non-engravable Objects: All metals, glass, stone, ceramics, jewelry, silver reflective materials, and translucent/transparent materials cannot be engraved.
  Engravable Objects: All wood, bamboo, paper, plastics, leather, rubber, sponge, sheets, and similar materials can be engraved.

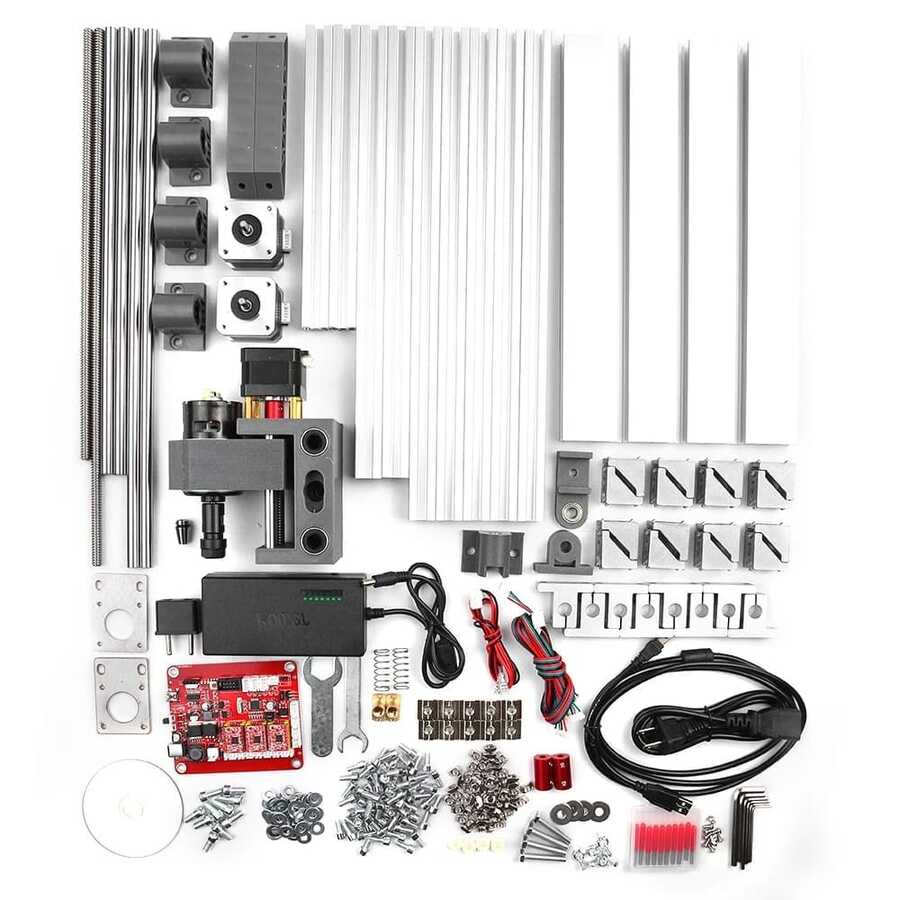

DIY Mini Desktop CNC Machining Machine Package Content:

• 1 x DIY CNC Engraving Machine Kit
• 10 x Drill Bits
• 1 x Spindle Chuck
• 1 x Installation Guide

Useful Documents:

• Installation Video
