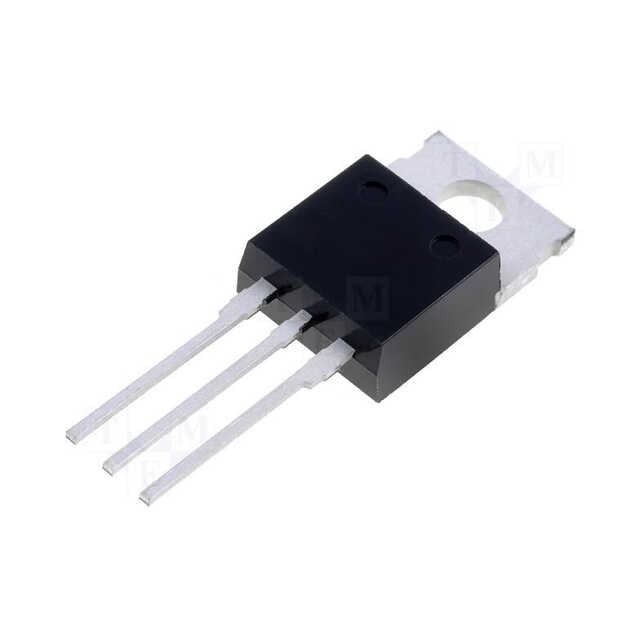

BT136-600 4A 600V Triac - TO-220

BT136-600 - 4 A 600 V Triac - TO-220

The BT136-600 is a 4A Triac designed for AC power control and switching applications. With a maximum voltage rating of 600V, it is widely used in motor speed control, light dimmer circuits, heater control systems, and general AC load switching designs. Thanks to its low gate trigger current, it can be easily driven by microcontrollers or low-power trigger circuits. The TO-220 package provides efficient heat dissipation and allows for easy mounting in various power applications.

BT136-600 - 4 A 600 V Triac Technical Specifications:

• Type: Triac (AC Switching Device)

• Maximum RMS Voltage (V_DRM): 600 V

• Maximum RMS Current (I_T(RMS)): 4 A

• Peak Surge Current (I_TSM): 25 A

• Gate Trigger Current (I_GT): 10 mA

• Operating Frequency: 50 / 60 Hz

• Package Type: TO-220

• Operating Temperature Range: -40°C ~ +125°C

Useful Documents:

• BT136-600 Datasheet
