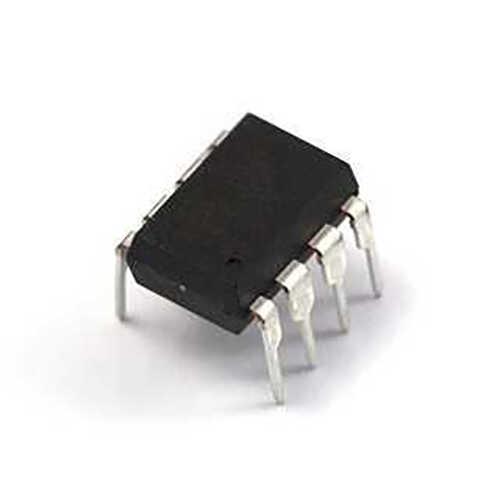

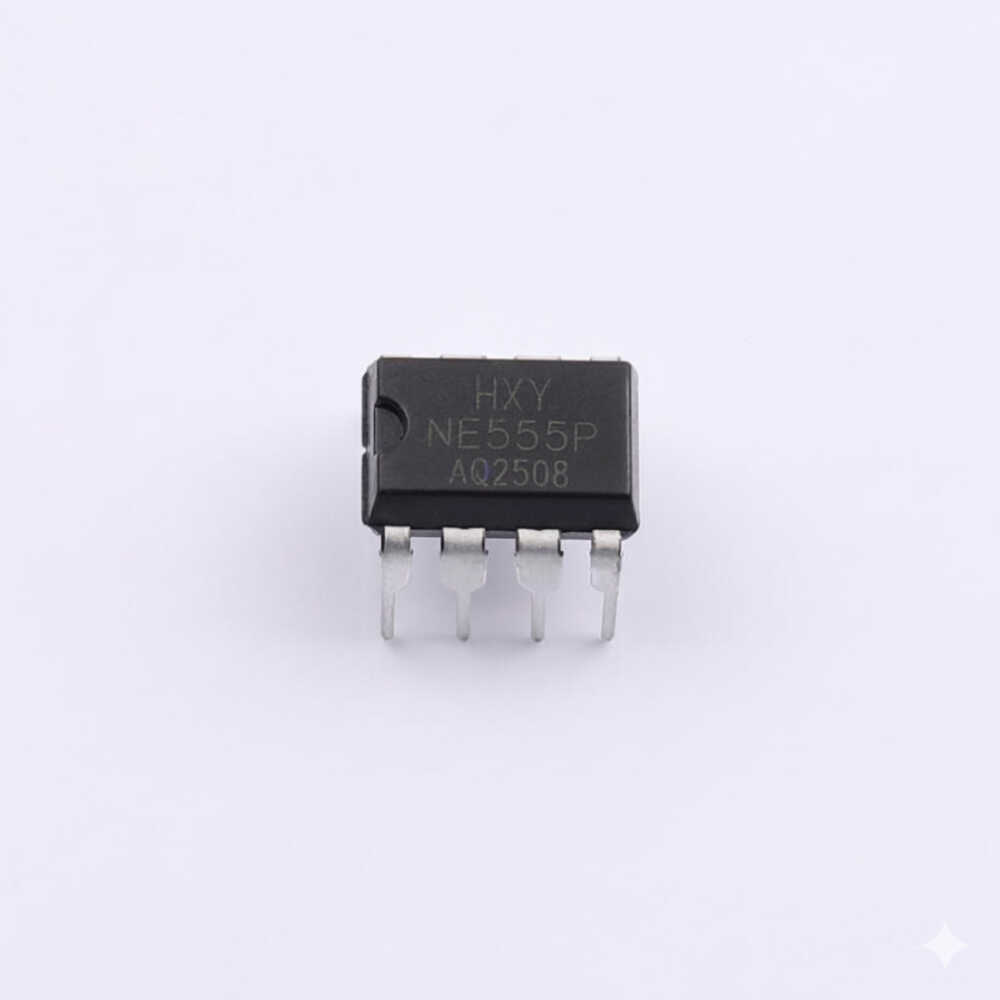

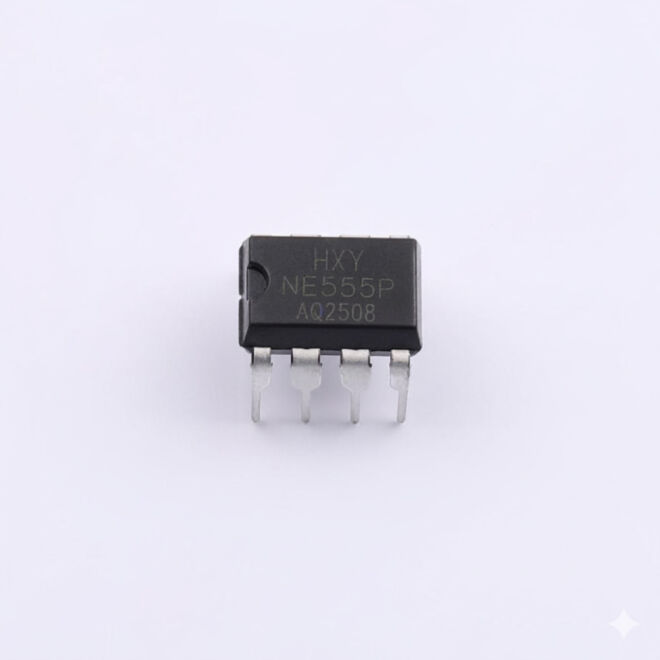

NE555P DIP-8 Timer and Oscillator IC

NE555P DIP-8 Timer and Oscillator IC

The NE555P is one of the most widely used timer and oscillator integrated circuits. It supports monostable, astable (oscillator), and bistable operating modes, making it commonly used in applications such as time-delay generation, square wave production, and pulse shaping circuits.

Thanks to its DIP-8 package, soldering and prototyping are very easy. The timing interval can be adjusted from microseconds to hours using external resistors and capacitors. With its high output current capability and wide supply voltage range, it provides a reliable solution for educational, hobby, and industrial projects.

NE555P Technical Specifications:

• Timer and oscillator integrated circuit

• Operating modes: Monostable, Astable, Bistable

• Supply voltage (Vcc): 4.5V – 16V

• Maximum output current: 200mA

• Timing range: Adjustable from microseconds to hours

• Low temperature drift: 0.005% / °C

• Operating temperature range: 0°C to +70°C

• Package type: DIP-8
