BBC Microbit V1.5

BBC Microbit V1.5

BBC Microbit is a development board that will lead, from first use, to the confident encoder. It helps you choose the programming tool that's right for you, from block coding to text-based programming with Python. For primary school (7-11 years old) level; Complete, editable computing units and resources with cross-curricular links for arts, science, geography and more, curriculum content linked to UK KS2 and Code.org core CS Fundamentals, for Secondary (Age 11-14) level; With UK KS3, the curriculum of study units with downloadable, editable resources covering the fundamentals of computing from cybersecurity, cryptography and creative design projects awaits you on the Micro:bit official page.

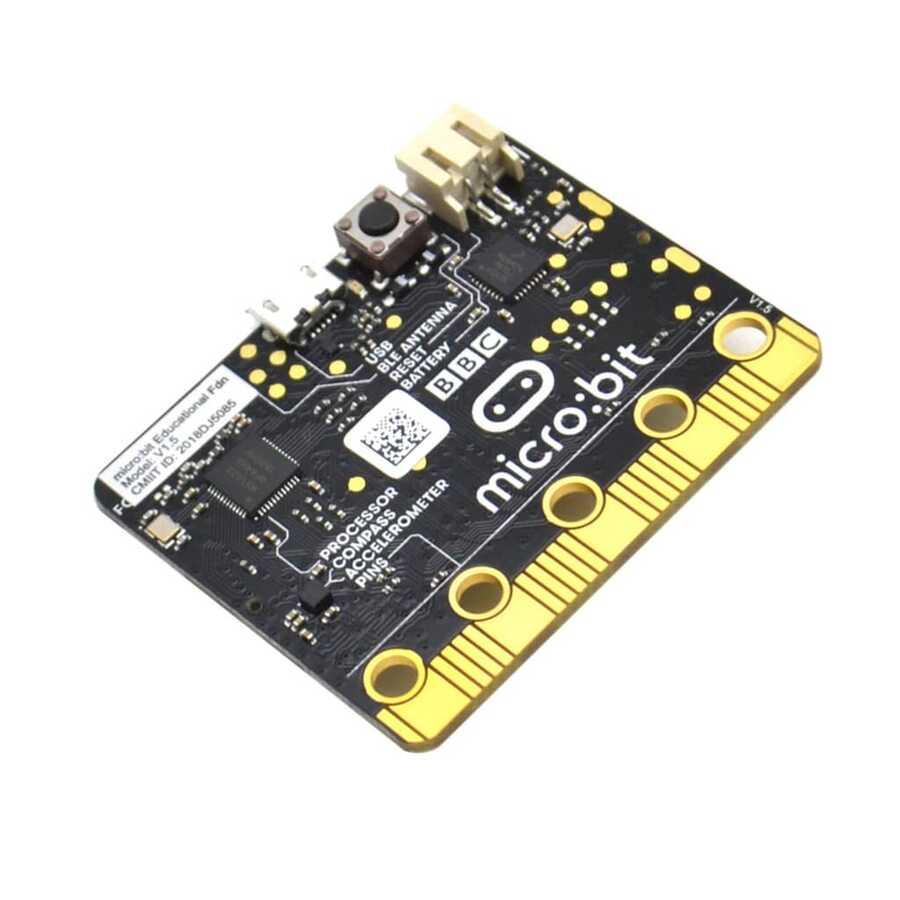

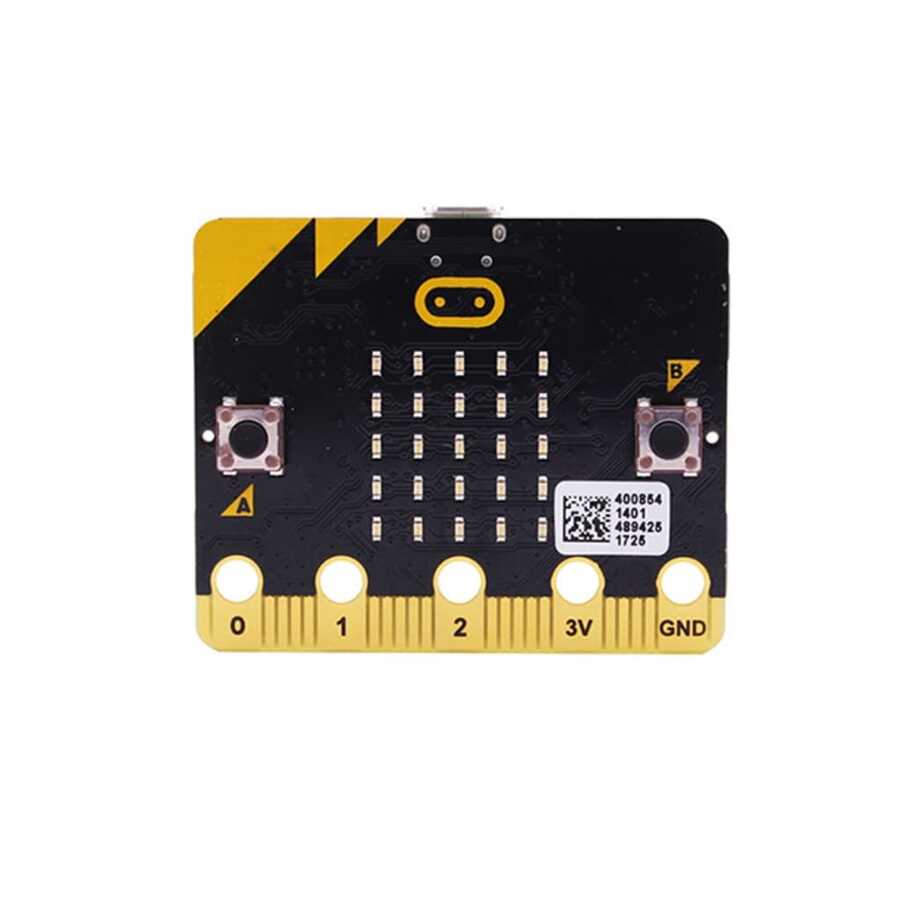

BBC Microbit V1.5 has 25 LEDs in 5x5 array, 2 programmable buttons, light sensor, temperature sensor, 3-axis accelerometer and compass sensor for motion detection and bluetooth for wireless connection.

BBC Microbit V1.5 Technical Specifications:

• Model: BBC Microbit V1.5
• Input Voltage: 3-5V/DC
• Inputs: Micro-USB (5V/DC), Link Connector (3V/DC)
• Current: 200mA
• Processor: Arm Cortex-M0 32bit
• ROM: 256KB
• RAM: 16KB
• Speed: 16MHz
• Bluetooth: Bluetooth 4.0
• Dimensions: 52 x 42.1 x 11mm
• Weight: 9gr
