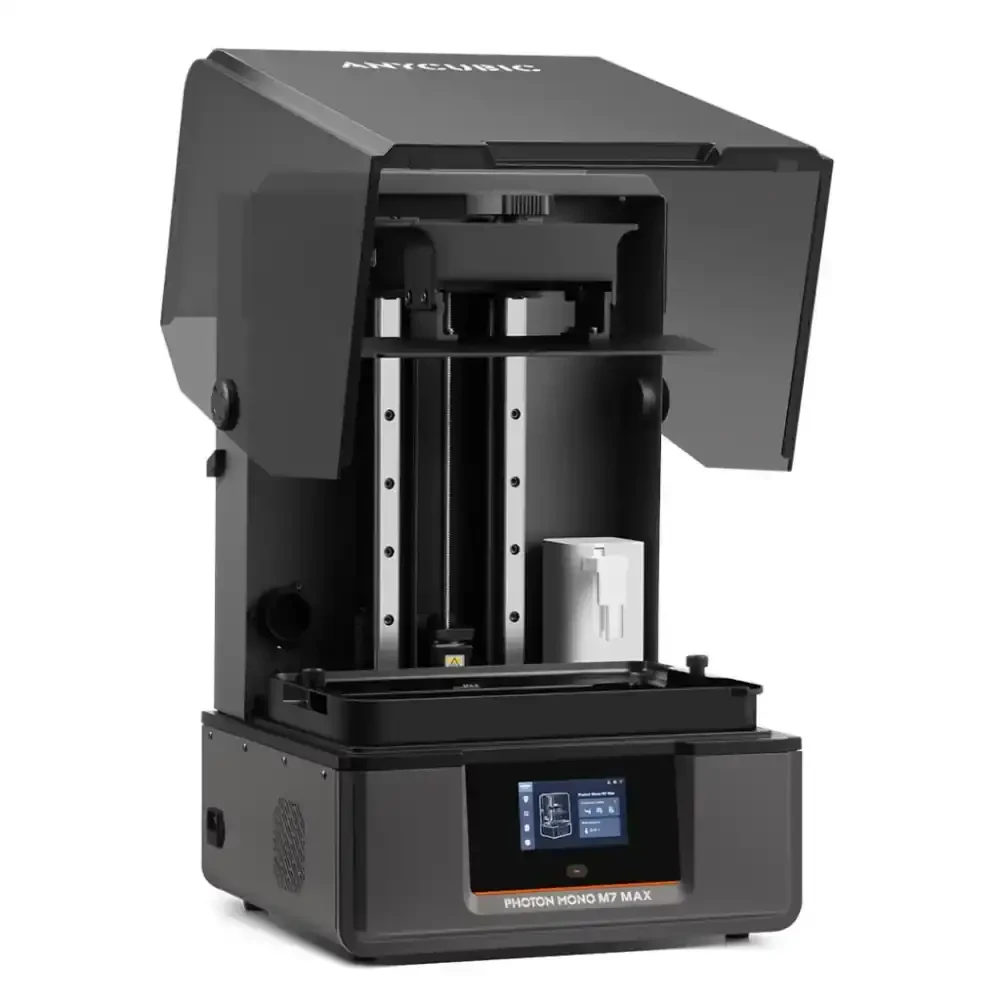

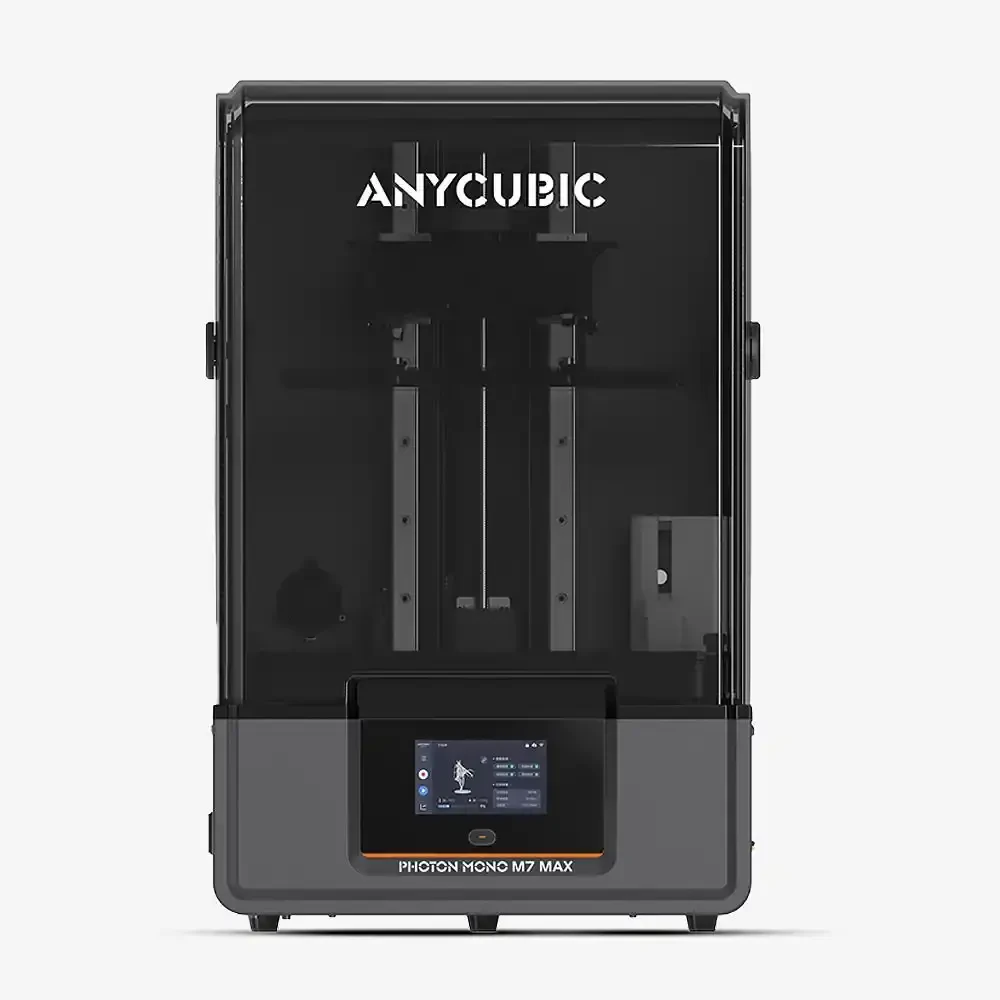

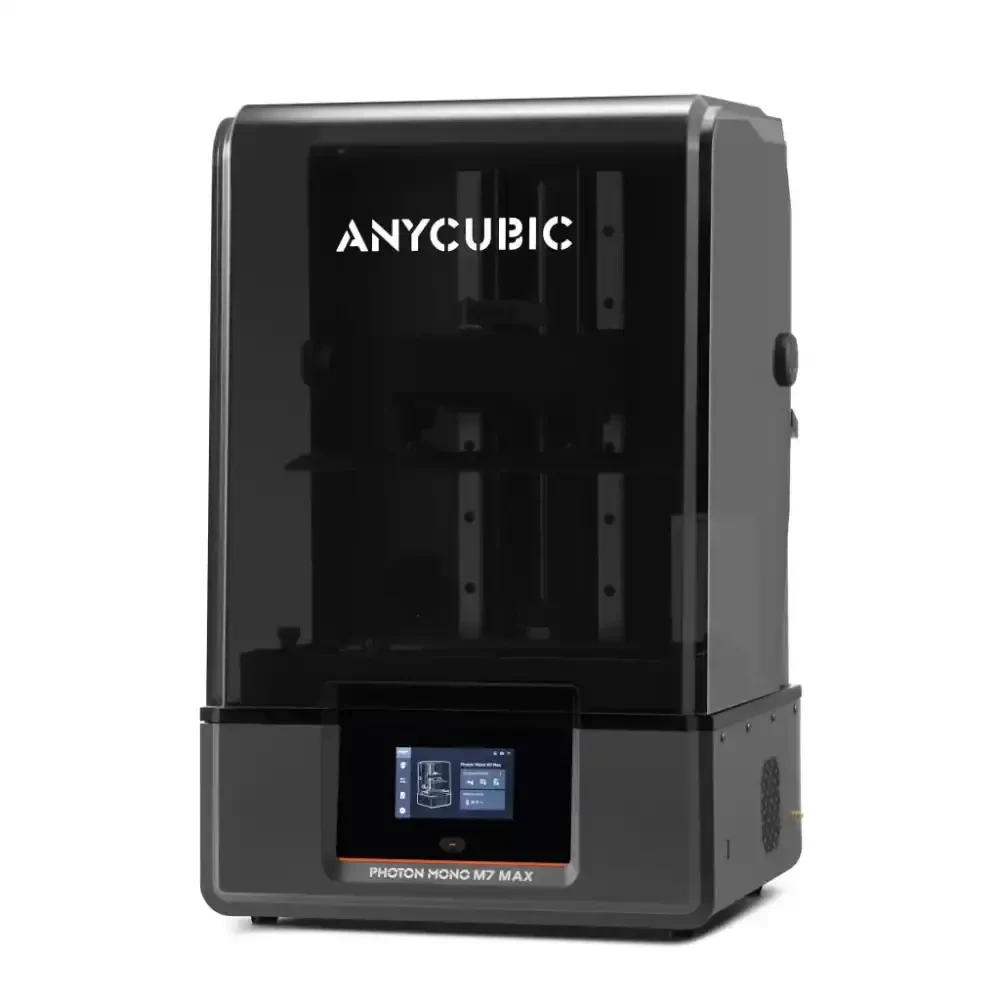

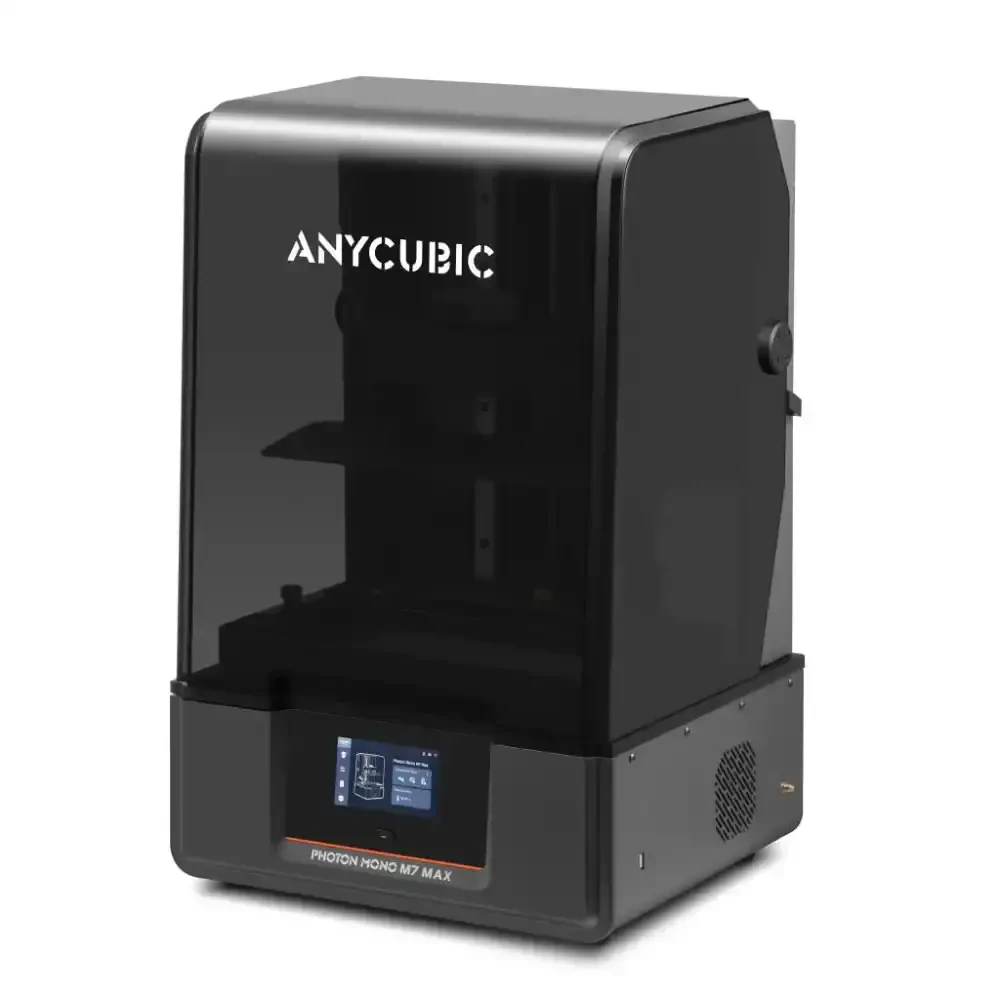

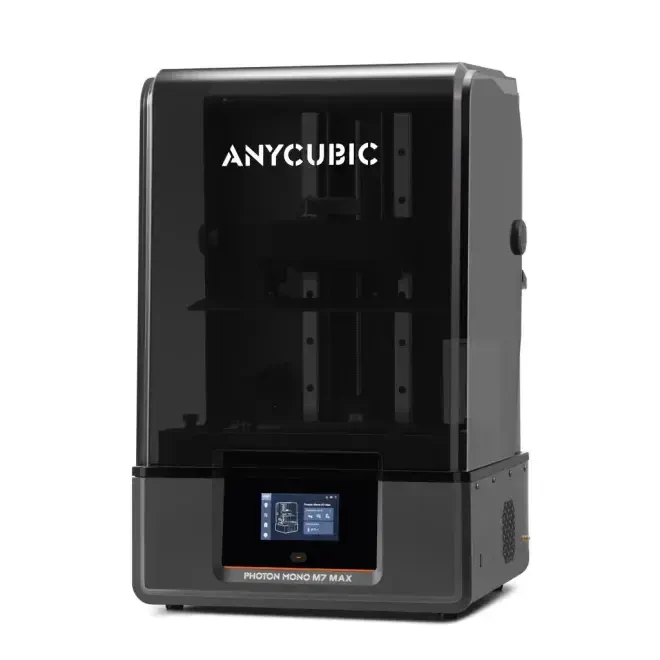

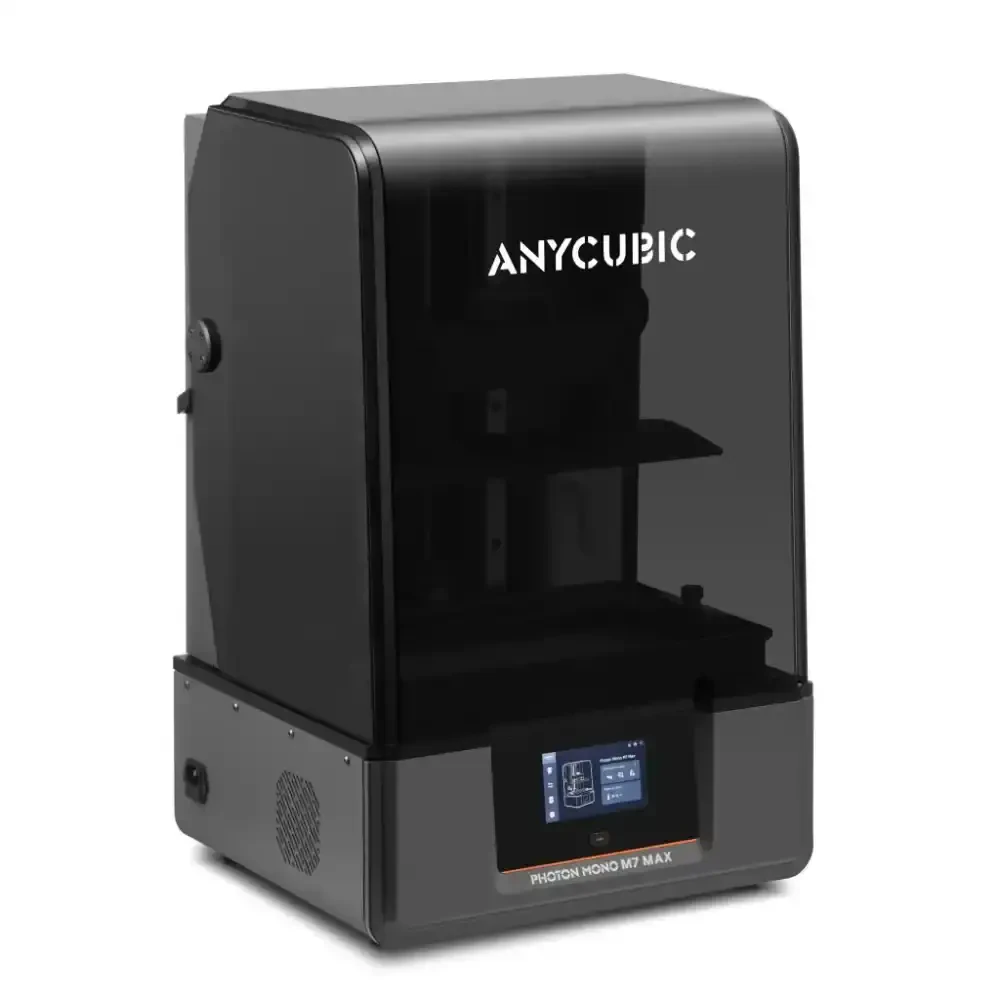

Anycubic PHOTON MONO M7 MAX 3D Printer

Anycubic PHOTON MONO M7 MAX 3D Printer

The Anycubic PHOTON MONO M7 MAX is a 3D printer that enhances your large projects with its high resolution and fast printing capabilities. With its high light intensity and large print area, it allows you to achieve professional-quality results.

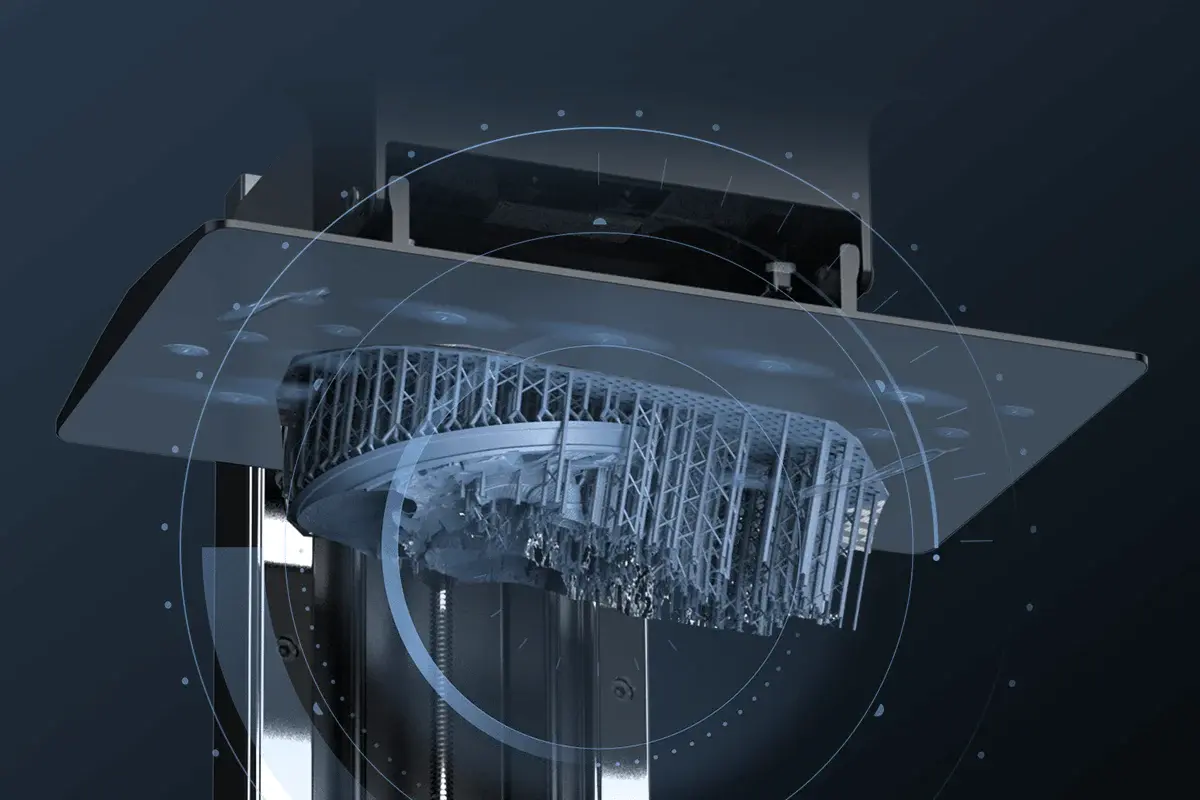

Exceptional Printing Speed of 83mm/hour The Anycubic PHOTON MONO M7 MAX offers an 83mm/hour printing speed, providing an advantage for your projects. The ability to print at high speed reduces production times, allowing you to achieve faster results and make more efficient use of your time.

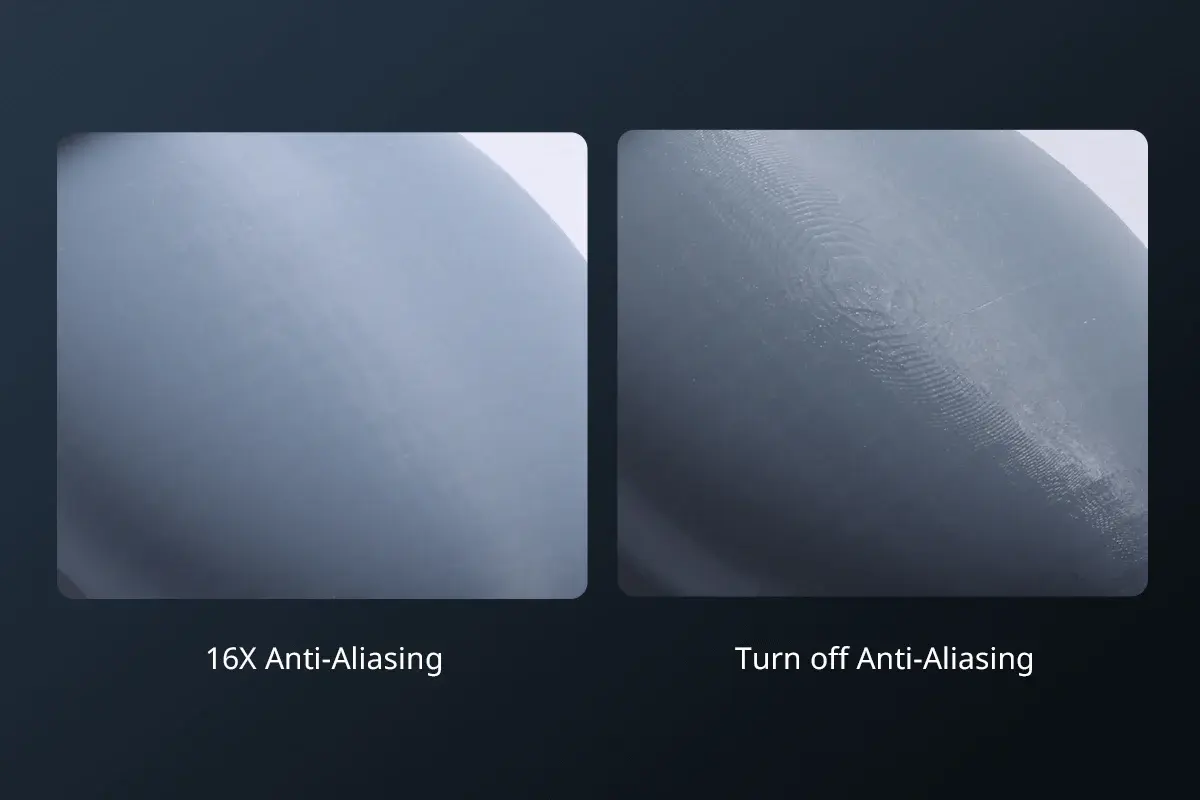

Anti-Aliasing Anti-Aliasing (AA) technology is offered to improve print quality. This feature softens the edges, resulting in smoother and more detailed results on the print surface. Especially in projects that require fine details and sharp lines, this technology reduces the unwanted "stair-step" effects in the image, providing a more professional appearance.

Failed Print Detection The Anycubic PHOTON MONO M7 MAX has an advanced failure detection system that can identify potential errors during printing. This system monitors whether the print is progressing correctly and alerts the user in case of faulty prints. This helps to prevent time and material waste, offering a more efficient printing experience.

Anycubic PHOTON MONO M7 MAX 3D Printer Technical Specifications:

• Build Volume: 298mm x 164mm x 300mm

• Print Volume: 14.7L

• Print Platform: Laser-treated aluminum alloy

• Screen: 4.3" Touch Control

• LCD Screen Size: 13.6", 7K

• Resin Tank: 1.3L One-piece design, with scale lines

• Anten Port: Yes

• Light Source: COB light source + front reflection reflectors + Fresnel Lens

• Light Distribution: ≥90%

• Light Intensity: 4500±500 μw/cm²

• Machine Level: 4-point manual leveling

• XY Resolution: 46*46μm

• Z Axis: Dual rail system, 10μm precision

• Slicing Software: Anycubic Slicing, CHITU and Lychee (Supported until end of 2024)

• File Transfer: USB & WiFi, LAN (Supported from 4th quarter of 2024)

• Free Film: ACF Film

• Power Supply: 180W nominal power

• Anycubic App: Supported

• Weight: Machine Weight: 24kg / 52.91 lbs, Package Weight: 28.5kg / 62.83 lbs

• Dimensions: Machine Dimensions: 425 x 362 x 652mm, Package Dimensions: 785 x 520 x 490mm

• Opening Cover: Effectively blocks UV rays, can be opened with one hand and stays open at an angle greater than 45°

• Printing Speed: Max Speed ≤31mm/hour, 0.05mm Layer Height with Standard Resin; Max Speed ≤63mm/hour, 0.1mm Layer Height with Standard Resin; Max Speed ≤86mm/hour, 0.1mm Layer Height with High-Speed Resin

• Supported Languages: English, Chinese, German, French, Italian, Spanish, Russian, Japanese

• Material Compatibility: Compatible with various resins such as high-speed, water-washable, standard, ABS-like, and plant-based resins

• Resin Tank: 1.3L One-piece design, with scale lines

• Protection Film: Replaceable, scratch-resistant protective film

• Air Purifier: USB

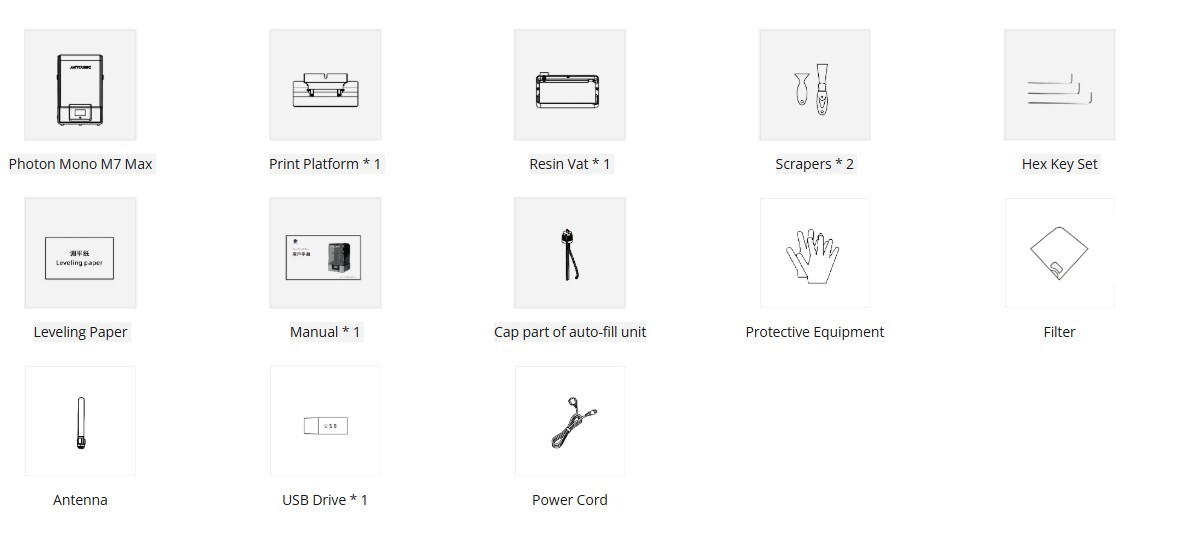

Anycubic PHOTON MONO M7 MAX Package Contents:
