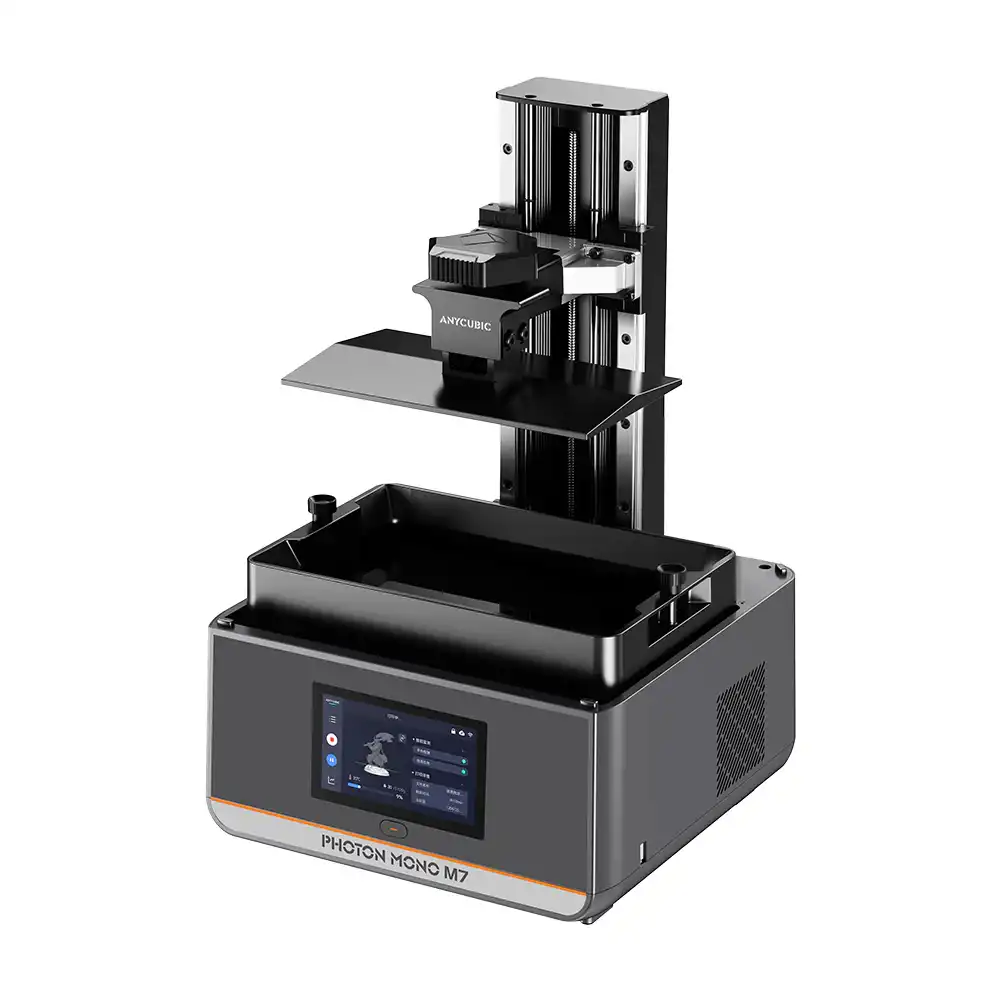

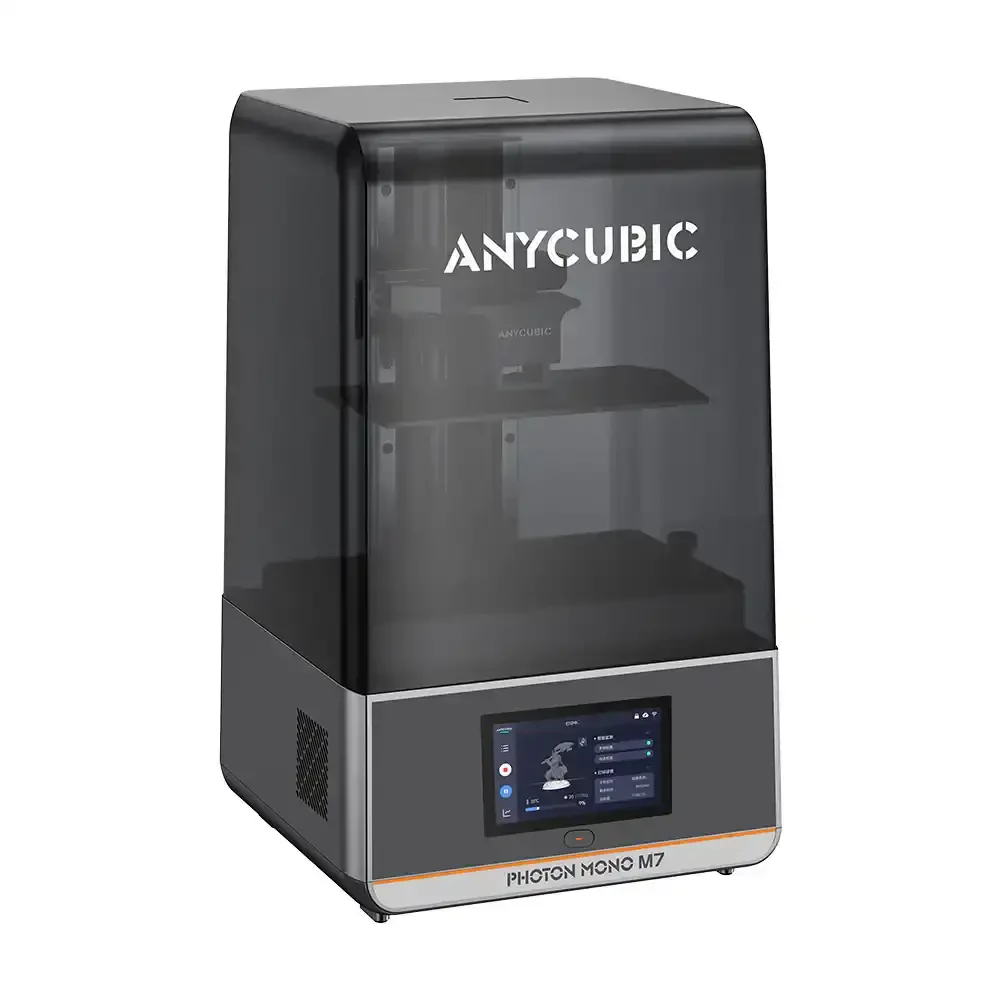

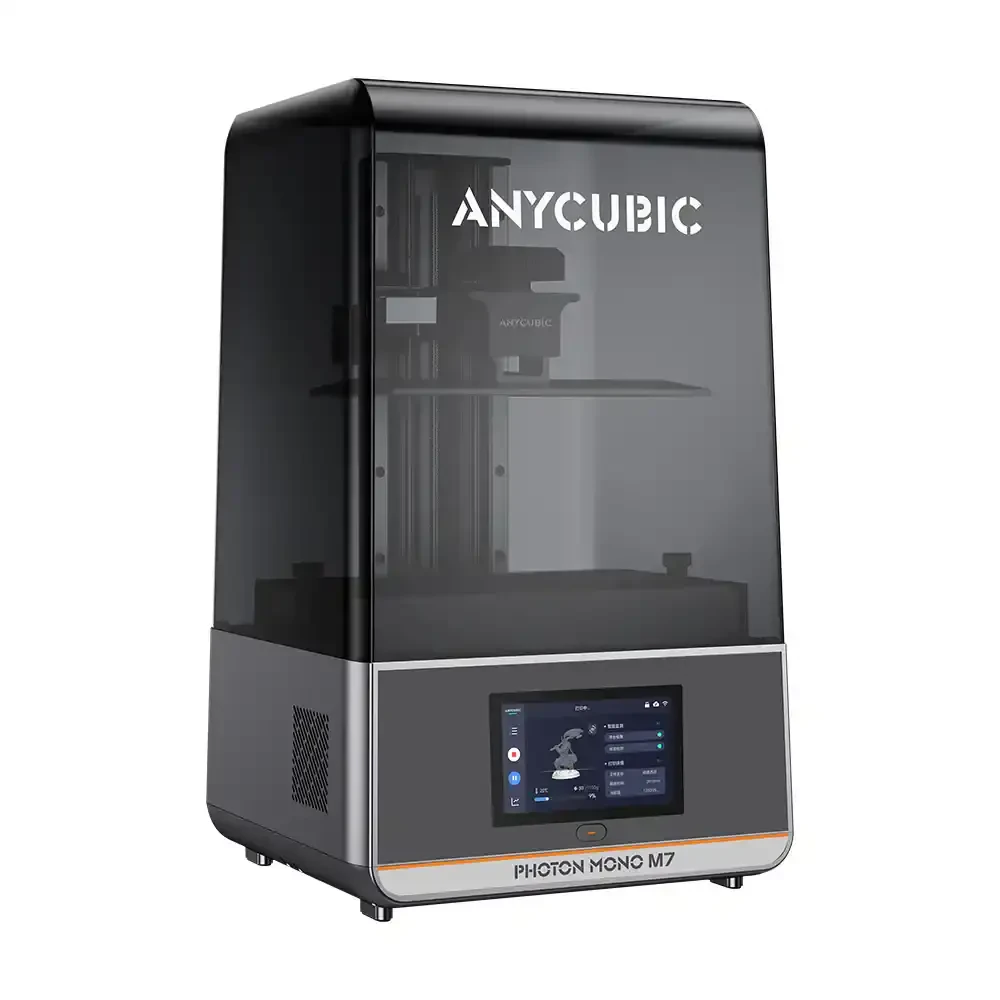

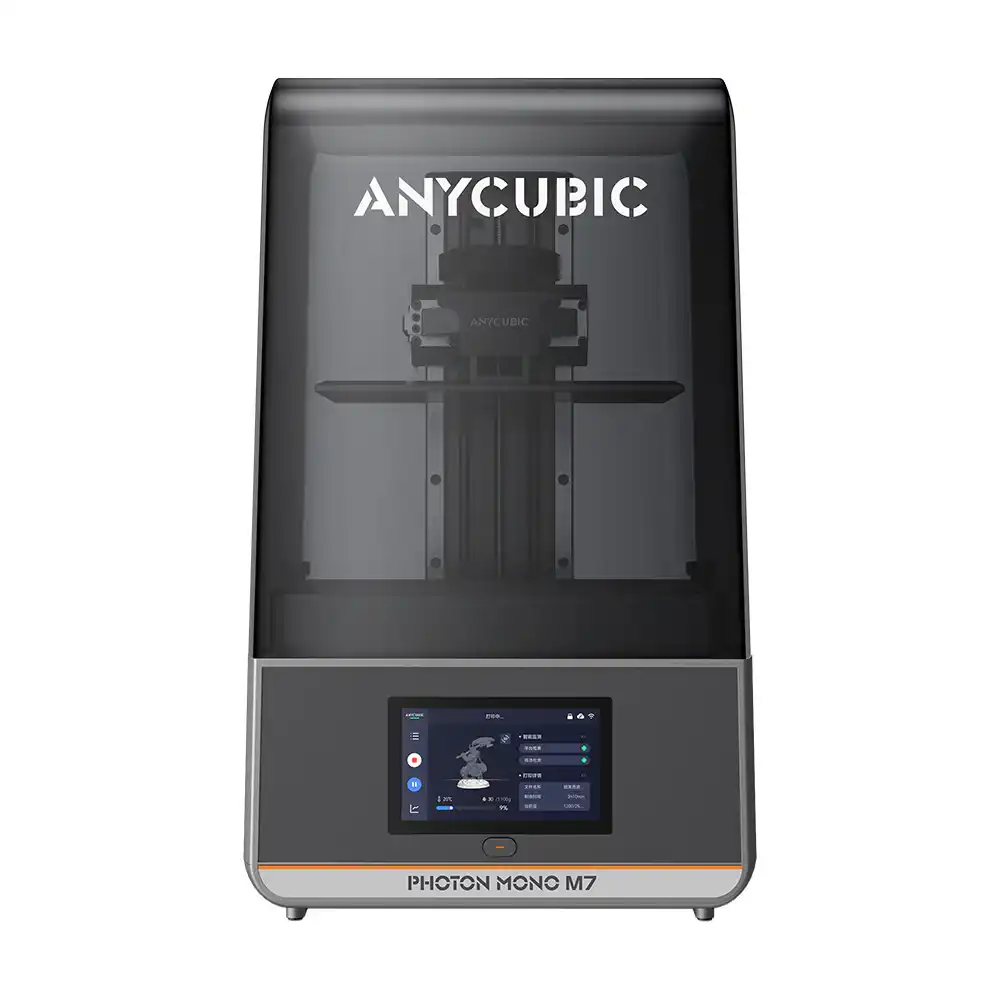

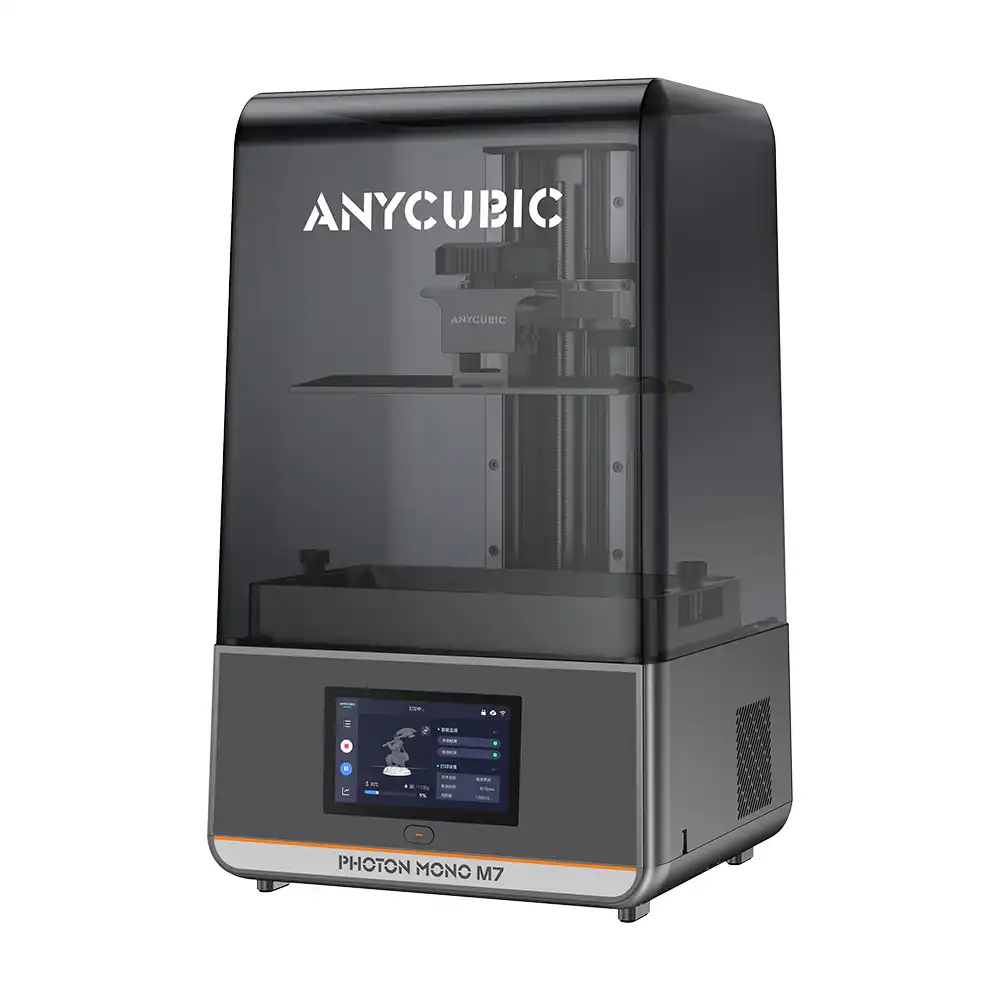

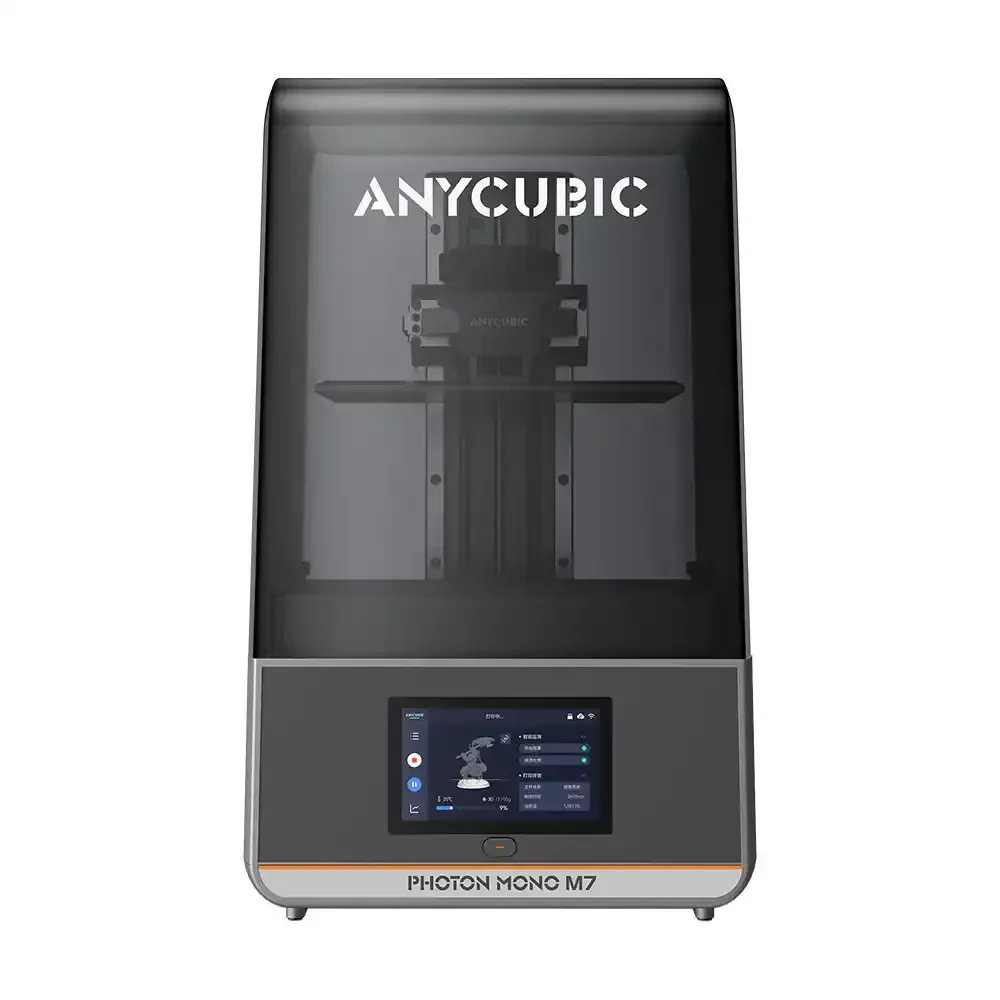

Anycubic PHOTON M7 3D Printer

Anycubic PHOTON M7 3D Printer

Anycubic PHOTON M7 is a 3D printer that takes the resin printing experience a step further with its high-resolution printing quality and reliable performance. Thanks to advanced UV light sources and special cooling systems, it ensures you get high-quality prints.

Increase Your Creativity with a Large Area: Anycubic PHOTON M7 offers a large workspace with its 223*126*230mm build volume, providing you with ample space for your creative projects. This allows you to comfortably execute your projects in a larger area.

Clean Prints with Clean Air: An optional ventilation hose connection is used to reduce resin odor and improve air quality.

Effortless 4-Point Surface Calibration: The enhanced 4-point surface calibration system minimizes the gap between the build platform and the screen, improving the accuracy of surface calibration.

Anycubic PHOTON M7 3D Printer Technical Specifications:

• Build Volume: 223 x 126 x 230 mm (Width x Depth x Height)

• Resolution: 14K (13320 x 5120 px)

• Light Source: COB light source

• Layer Height: ≥0.01 mm

• Light Intensity: 4500±10%μW/cm³

• Light Distribution: ≥90%

• Printing Speed: Standard Resin 0.1mm layer height; 90mm/hour scanning speed; High Speed Resin 0.1mm layer height: 150mm/hour scanning speed

• Screen: 10.1-inch LCD screen, 14K resolution (13320 x 5120)

• Machine Dimensions: 312 x 345 x 520 mm

• Machine Weight: 12 kg

• Package Dimensions: 620 x 395 x 395 mm

Anycubic PHOTON M7 3D Printer Package Contents:
