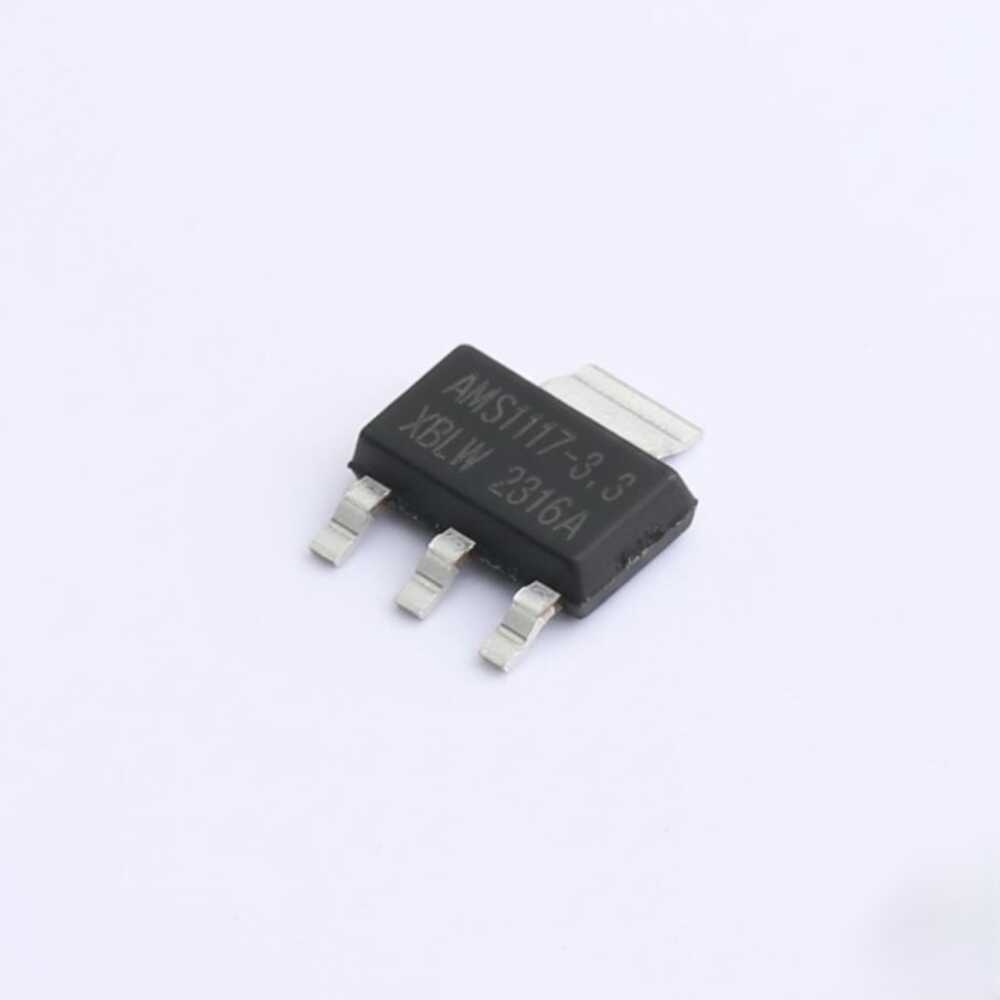

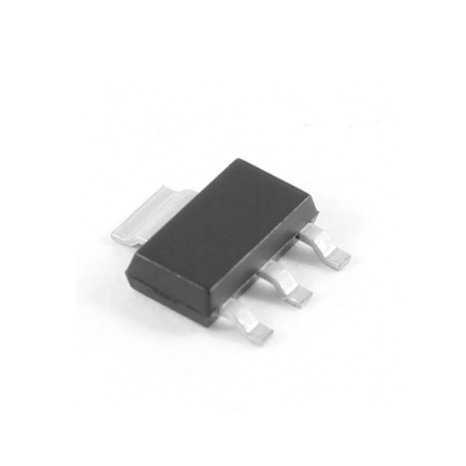

AMS1117-3.3 Integrated Circuit SOT-223-3

AMS1117-3.3 Integrated Circuit SOT-223-3

The AMS1117-3.3 is a low dropout (LDO) linear voltage regulator that provides a fixed 3.3V output. Offered in a compact SOT-223-3 package, this IC is widely used for powering microcontrollers, sensors, and digital circuits thanks to its high stability and low output noise. With its wide input voltage range and thermal protection circuitry, it ensures long-lasting and reliable performance. It is frequently preferred in prototyping, Arduino, and other embedded system projects.

AMS1117-3.3 Integrated Circuit Specifications:

• Input Voltage: 4.75V - 15V

• Output Voltage: 3.3V (fixed)

• Output Current: up to 1A

• Low dropout voltage (approximately 1.1V @ 1A)

• Package Type: SOT-223-3

• Thermal overload protection

• Short-circuit protection

• Operating Temperature Range: 0°C ~ +125°C

Useful Documents:

• Datasheet
