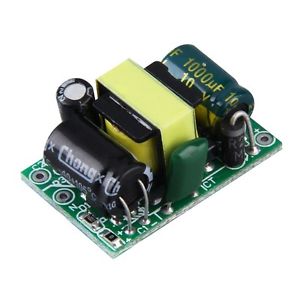

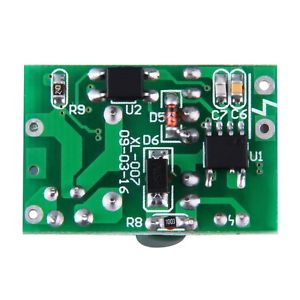

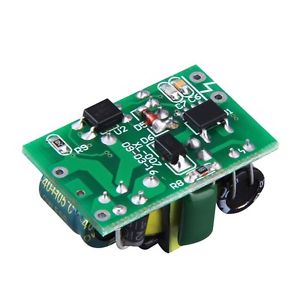

AC-DC 5V 700mA 3.5W Power Supply

AC-DC 5V 700mA 3.5W Power Supply

AC220V-DC5V converter is a device that converts alternating current (AC) 220 volts to direct current (DC) 5 volts and 0.7 amps. It is used in LED lighting, low voltage electronic devices, microcontroller projects, sensors and other low power applications. The converter first outputs alternating current (AC). Then, a rectifier circuit converts AC to DC. It performs filtering and regulating processes to obtain a smooth DC output.

Safety Precautions:

• Overvoltage and current protection.
• Adequate cooling measures for heat dissipation.
• Short circuit and overload protection.

Attention:

Be careful not to exceed the output current (700mA), otherwise the converter may overheat or be damaged. Be sure to connect the AC input line correctly; incorrect connection may cause the device to malfunction.

Technical Specifications:

• Input voltage: AC 85 ~ 265 v 50/60 hz
• Input current: 0.0273A(AC110V)/0.014A(AC220V)
• Output voltage: DC 5V ± 0.2V
• Output current: 700mA
• Output power: 3.5W
• Working environment conditions: -20~60°C, 40-90% relative humidity
• Efficiency: 80%
• Dimensions: 20x30x20mm (Approx.)
