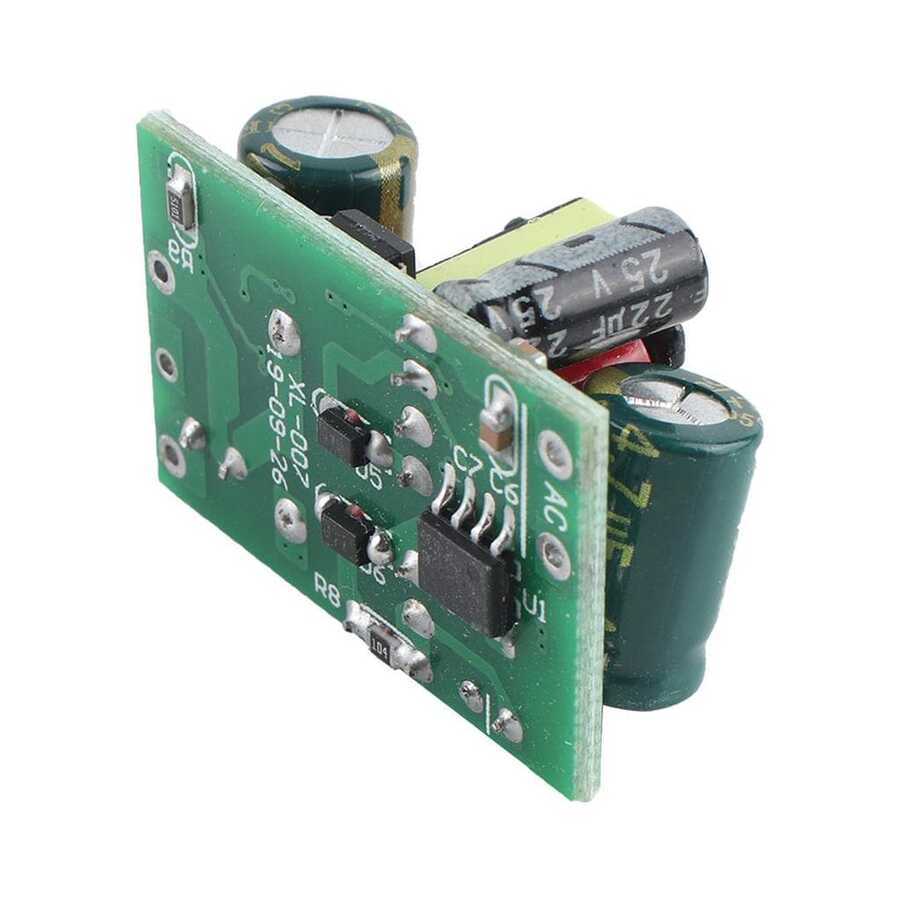

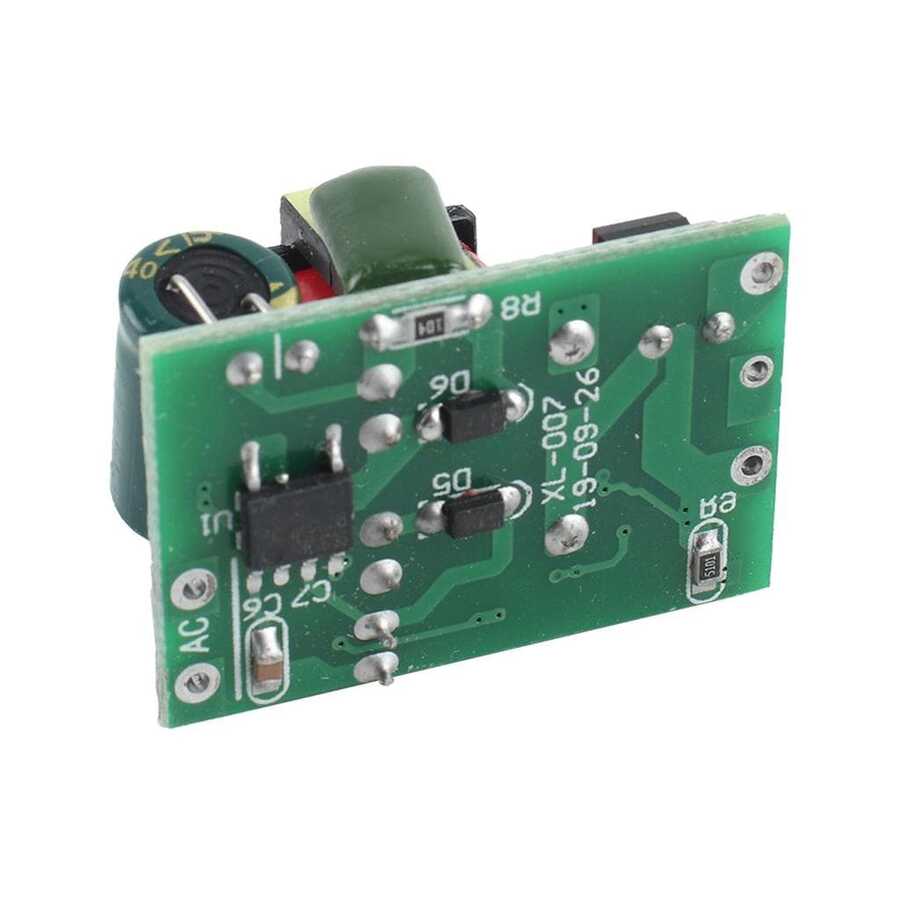

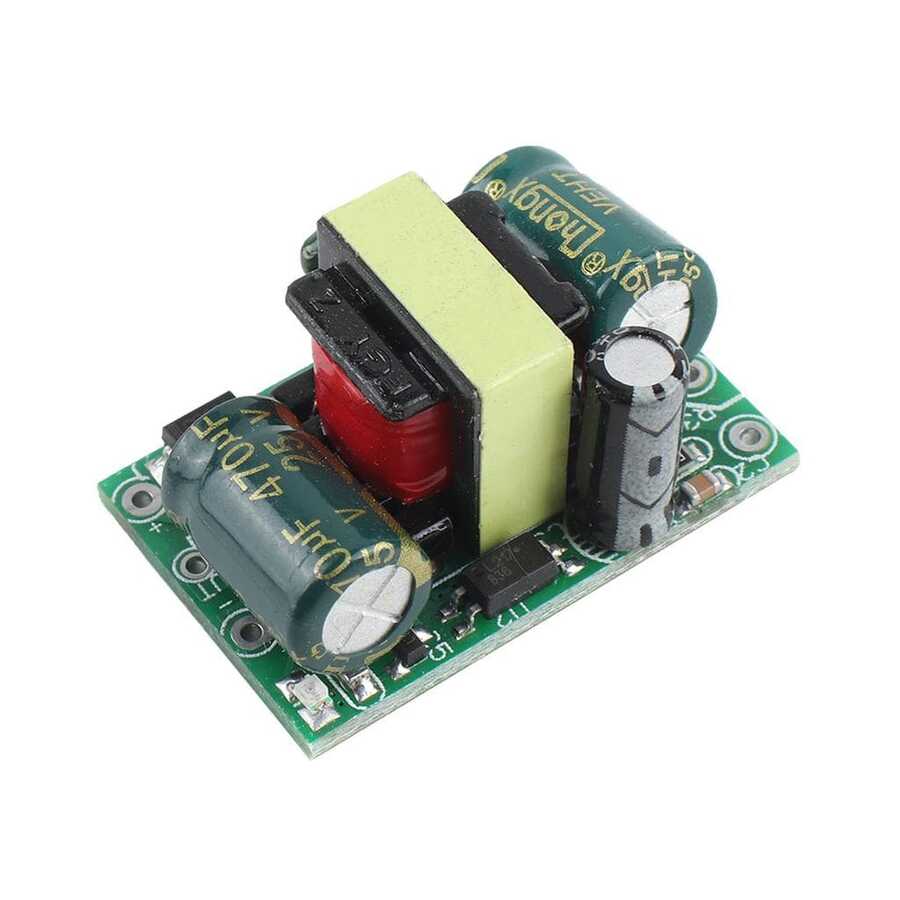

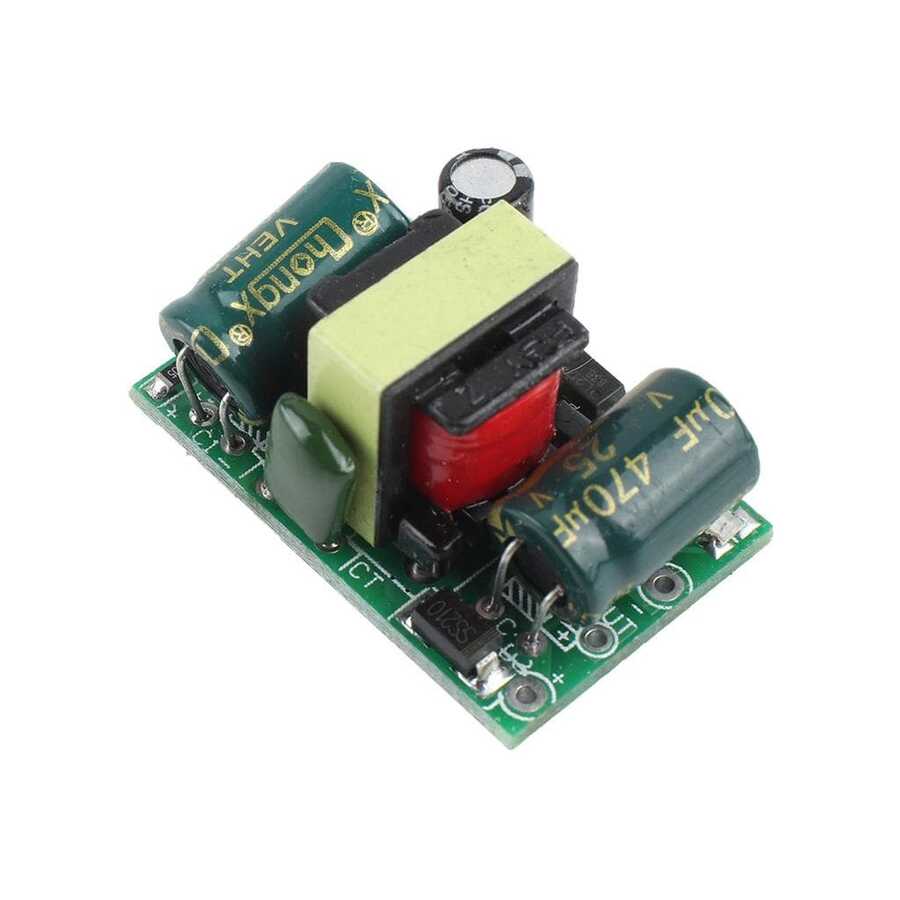

Power Supply Module AC-DC Voltage Regulator 220V AC 12V DC

This regulator converts AC input voltage to DC output voltage. It is a regulator module that you can use to reduce the 220V/AC mains voltage to 12V/DC. It has protection features. It offers safe operation with overload, short circuit and over temperature protection functions. With the developing technology, it provides high efficiency with its ultra small size. In addition, it provides low fluctuation output to protect from bad situations.

Power Supply Module Technical Specifications:

For Entry

  • Input voltage: AC 85 ~ 265 v 50/60 hz
  • Input current: 0.0273A(AC110V)/0.014A(AC220V)
  • Operating ambient conditions: -20~60°C, 40-90% relative humidityy

For Exit

  • Output Voltage: 12V
  • Rated current: 500mA
  • Current range: 0-500mA
  • Ripple: <100mVp-p
  • Output accuracy: ± 3%
  • Voltage adjustment rate: ±1%
  • Load regulation rate: ± 1.2%
  • Rated power: 6w
  • Output adjustable range: not adjustable
  • Setup, rise, hold time: 300ms, 80ms, 80ms /220VAC
