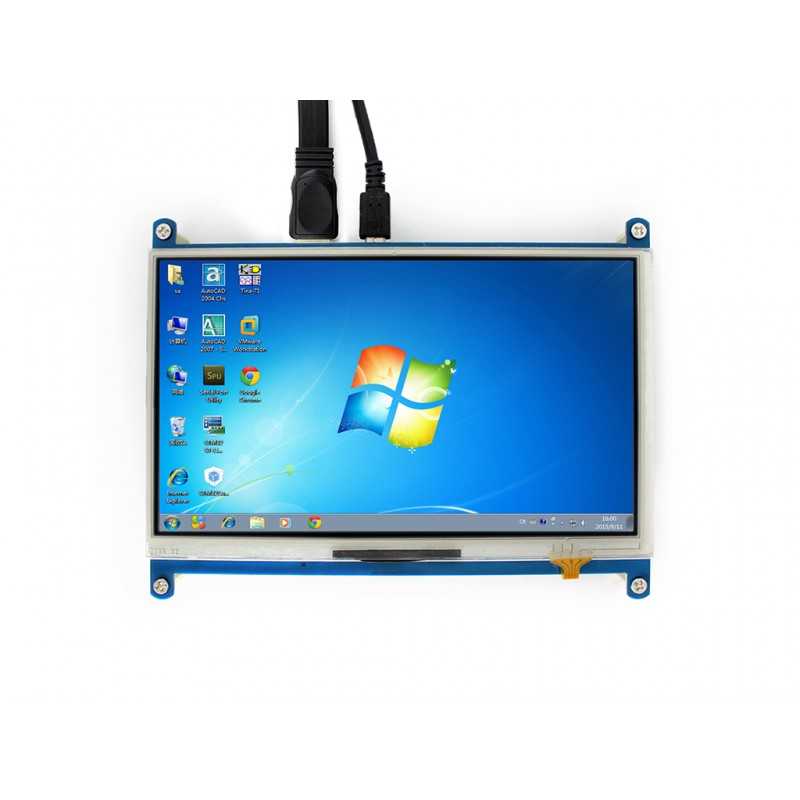

7 inch HDMI Resistive Touch LCD - 1024x600

Product Code
:
18309
Brand / Origin
:
WaveShare
Quantity
:
0
Without Vat
:
1,590.33 TL
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Features:

    • 7inch IPS screen, 1024x600 hardware resolution
    • Resistive touch control

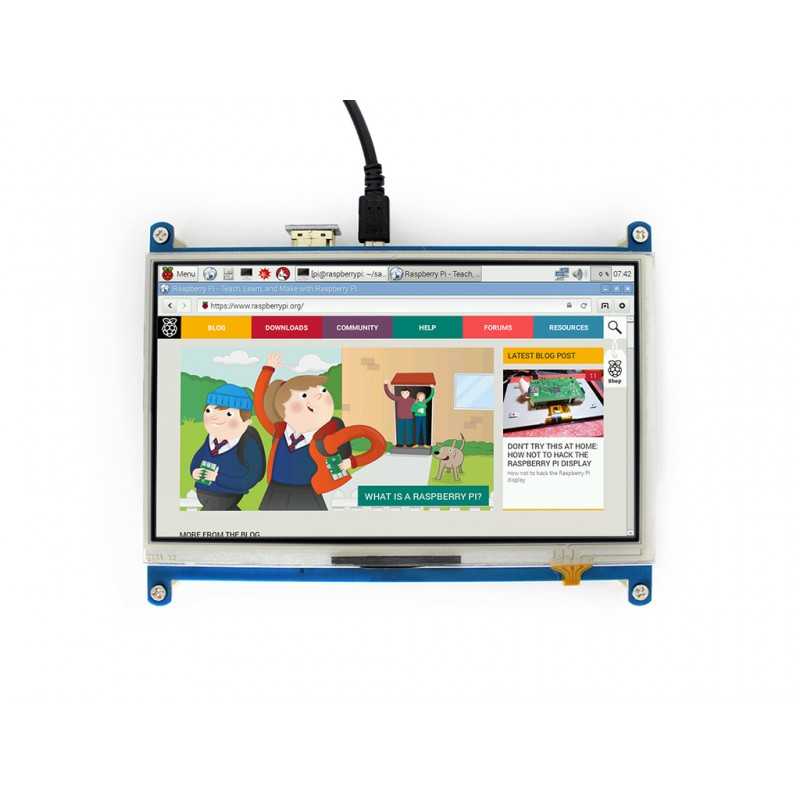

    • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
    • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)

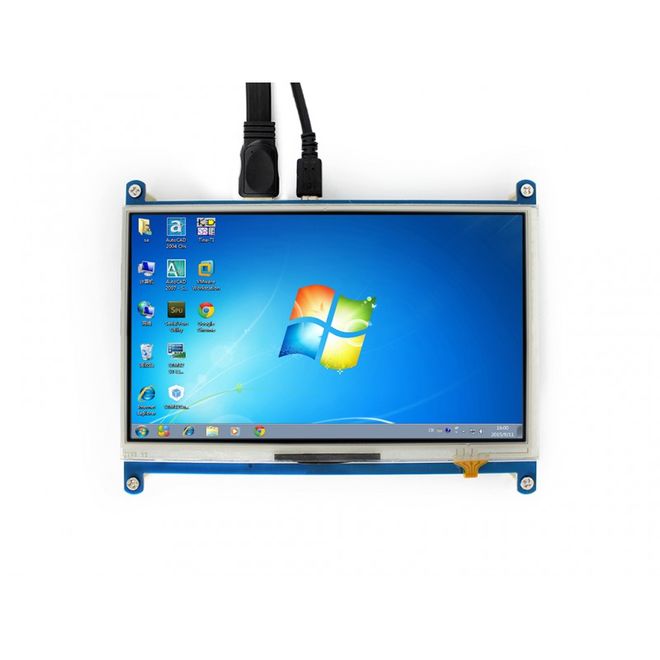

    • Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
    • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
    • Multi-languages OSD menu, for power management, brightness adjustment, contrast adjustment, etc.
    • Supports 100-level backlight adjustment

    Using with Game Consoles:


    Model

    Microsoft Xbox

    Sony PS4

    Nintendo Switch

    Display

    Sound

    Display

    Sound

    Display

    Sound

    3.5inch HDMI LCD

    4.3inch HDMI LCD (B)

    5inch HDMI LCD (G)

    5inch HDMI LCD (H)

    7inch HDMI LCD

    ×

    ×

    ×

    7inch HDMI LCD (H)

    10.1inch HDMI LCD

    ×

    ×

    ×

    10.1inch HDMI LCD (B)

    ×

    ×

    ×

    ×

    ×

    10.1inch HDMI LCD (H)

    ×

    ×

    11.6inch HDMI LCD (H)

    13.3inch HDMI LCD (H) V2

    15.6inch HDMI LCD (H)


    Note: Limited by the game console OS, the touch function is unavailable. Sound support means, it is possible for the game console to output sound signal via LCD embedded speaker, external speaker interface, or earphone jack.

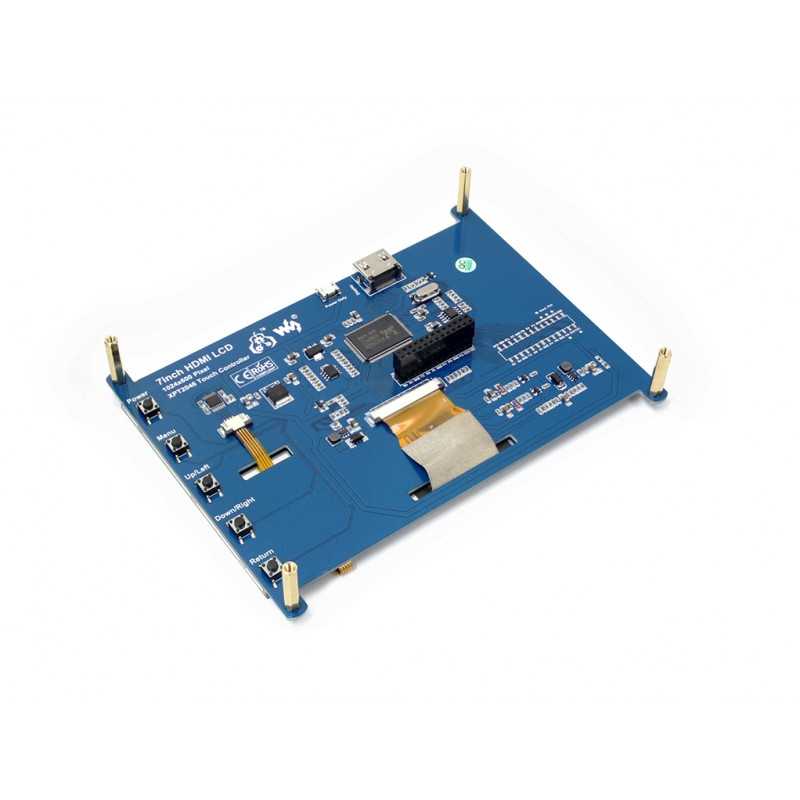

    Interface:

    Pin No.

    Symbol

    Description

    1, 17

    3.3V

    Power positive (3.3V power input)

    2, 4

    5V

    Power positive (5V power input)

    3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24

    NC

    NC

    6, 9, 14, 20, 25

    GND

    Ground

    19

    TP_SI

    SPI data input of Touch Panel

    21

    TP_SO

    SPI data output of Touch Panel

    22

    TP_IRQ

    Touch Panel interrupt, low level while the Touch Panel detects touching

    23

    TP_SCK

    SPI clock of Touch Panel

    26

    TP_CS

    Touch Panel chip selection, low active

    Dimensions:

    Documents and Useful Links:

    Features
    Size
    :
    5.0 inches and above
