5-35V 15A Pair Motor Driver Board

Product Code
:
11776
Brand / Origin
:
Robotistan
Quantity
:
10+
Without Vat
:
366.65 TL
Quantity:

-

+

Buy wholesale for more discount!
Same Day Shipping
Orders placed until 3:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (2)
  • Recommend
  • Images
  • Suggestion Box

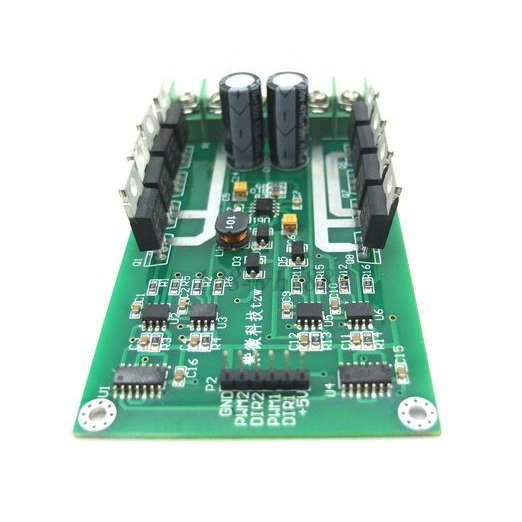

  • This motor driver board can draw current up to 15 Amper under 5-35V DC voltage range condition. Board can drive two motors separately at the same time. Board can resist peak 30A

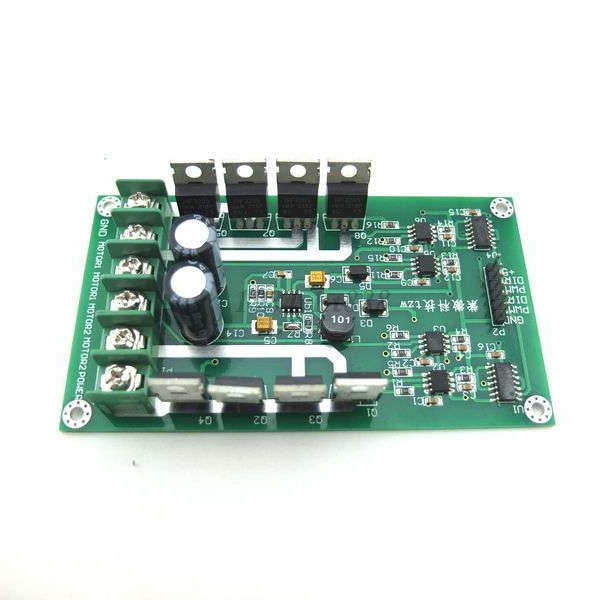

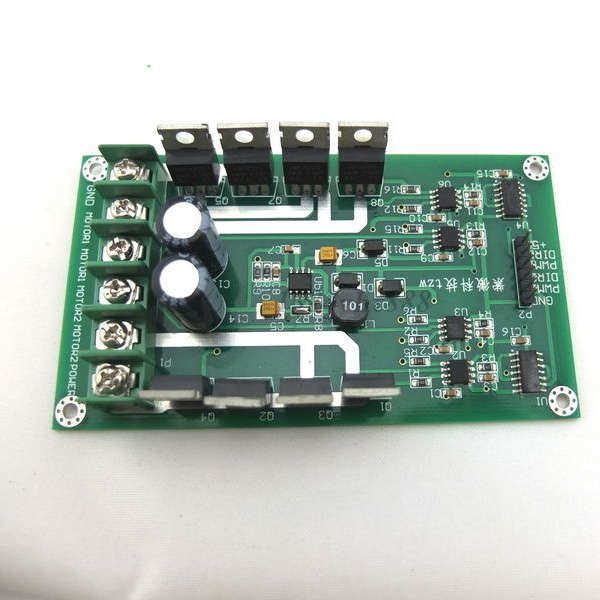

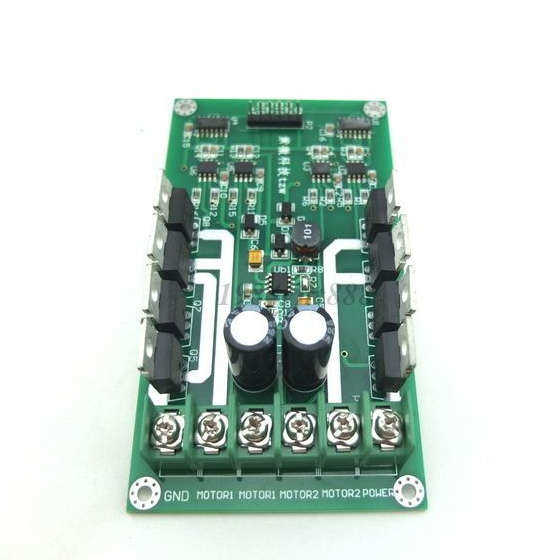

    Two terminals are available on the board. One of these terminals is motor and supply terminal, the other one is control part. Motor and supply parts have GND, MOTOR1, MOTOR1, MOTOR2, MOTOR2 and POWER respectively.

    Board can be supplied with 5-35V voltage range via power connection. Motor1 ve Motor2 pins are motor connection terminals.


    +5V, DIR1, PWM1, DIR2, PWM2 and GND pins are available at control part. Pins can be plugged to the 5V and ground for continuously turn or microcontroller for motor control. PWM pin is speed control pin and you can control speed of motors via this pin. DIR is direction pin and you can change direction of motor via this pin.

    Documents:
