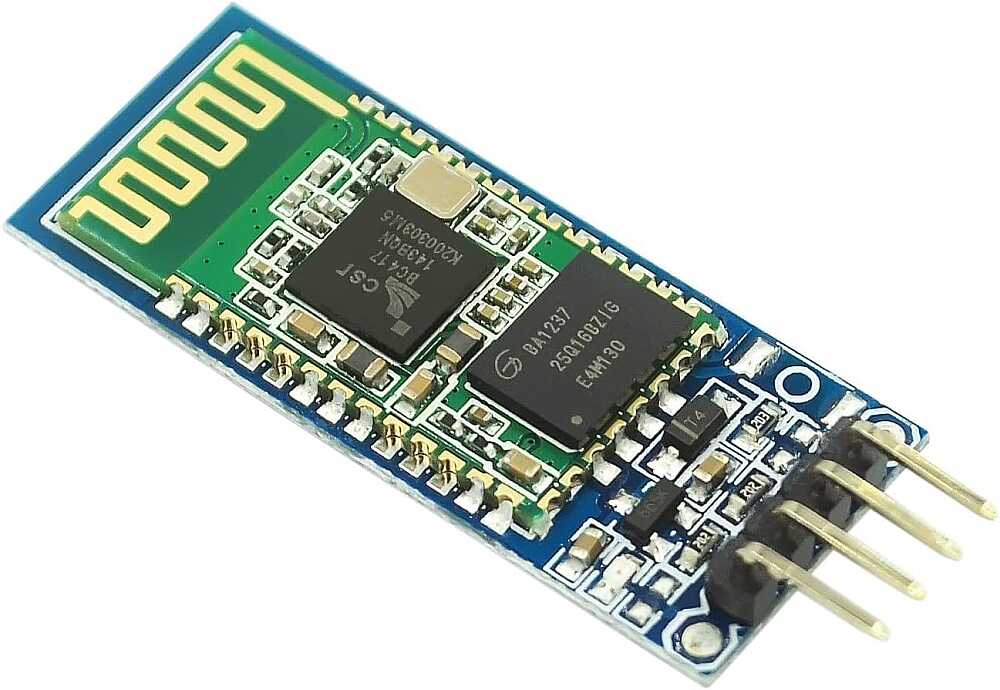

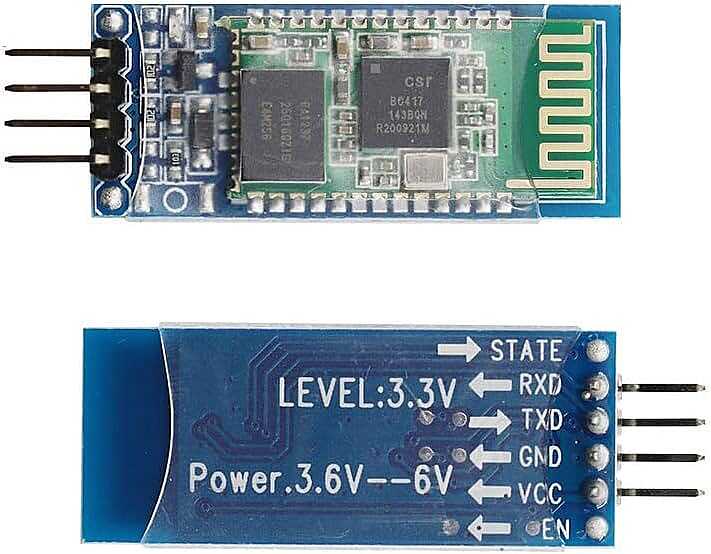

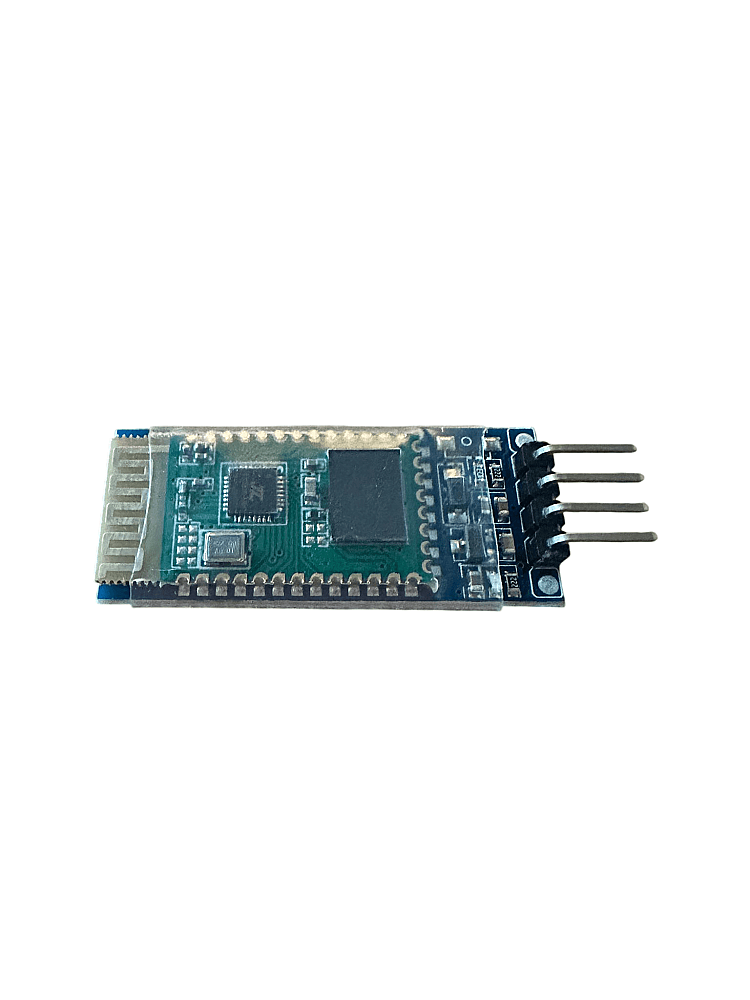

HC06 Bluetooth-Serial Module Board is designed for use of Bluetooth SSP (Serial Port Standard) and wireless serial communication applications. The necessary pins have been taken out thanks to the circuit board to enable rapid prototyping and to be used comfortably in breadboard, arduino and various circuits.
Thanks to its standard pin structure, it can be easily controlled in desired environments. However, connections can be made easily with the jumper cables sent with the product.
Supporting Bluetooth 2.0, this card enables communication at 2.4GHz frequency and has a communication distance of approximately 10 meters in open area.
It can be used in many hobby, robotic and academic projects.

Unlike the HC05, it can only be used in slave mode.

You can find our detailed blog post about the use of the module here.


Properties:
  • Bluetooth Protocol: Bluetooth 2.0+EDR(Enhanced Data Rate)
    2.4GHz communication frequency
    Sensitivity: ≤-80 dBm
    Output Power: ≤+4 dBm
    Asynchronous Speed: 2.1 MBps/160 KBps
    Sync Speed: 1MBps/1MBps
    Security: Authentication and Encryption
    Operating Voltage: 3.6-5V(Recommended 3.6V)
    Current: 50 mA
    Dimensions: 43x16x7mm

Note:

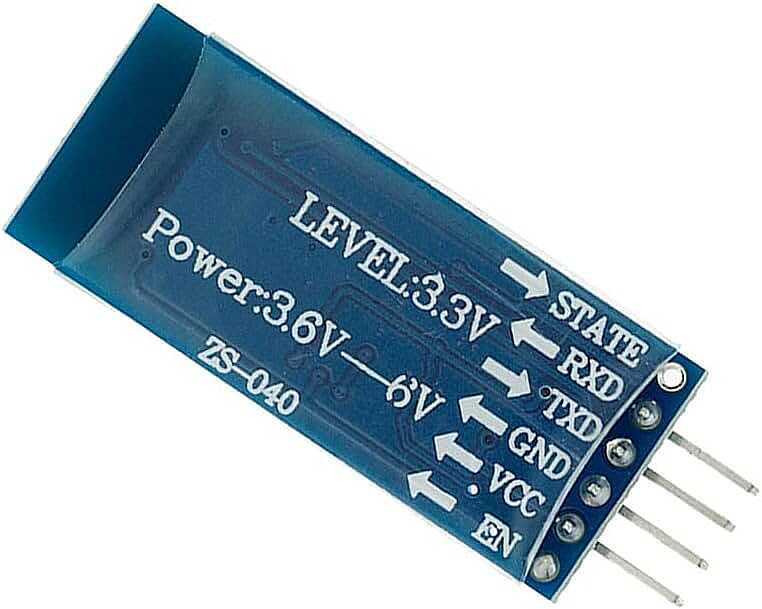

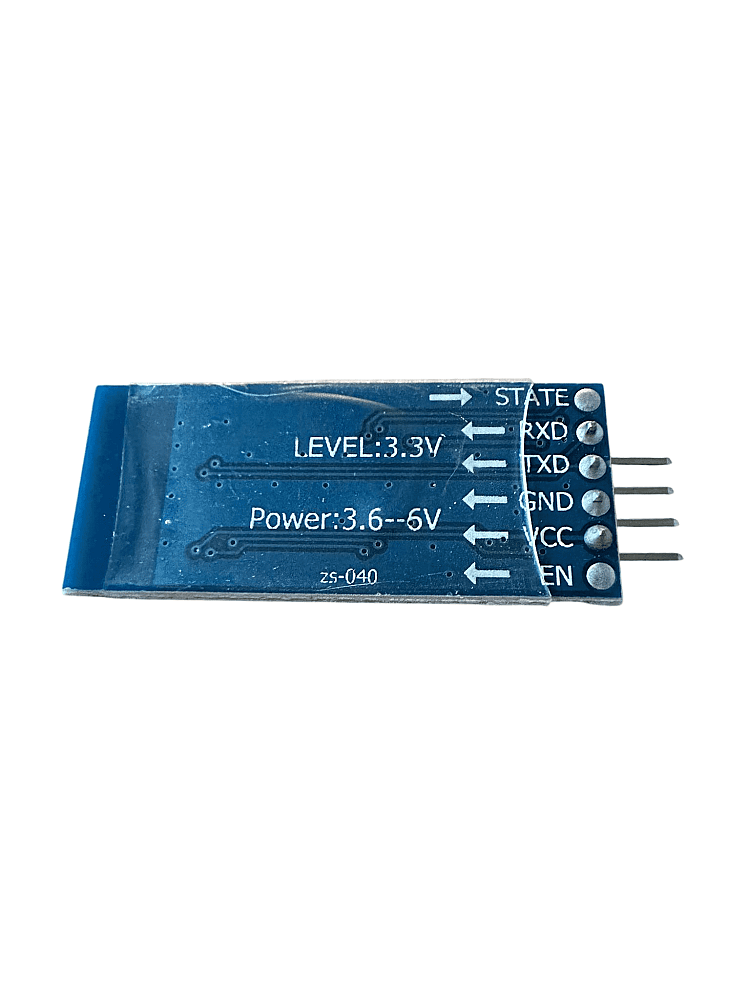

 RX and TX pins are at logic 3.3V. For use with Arduino or other 5V systems, you can use the following connection.

hc06 bluetooth-serial modül kartı örnek uygulama
