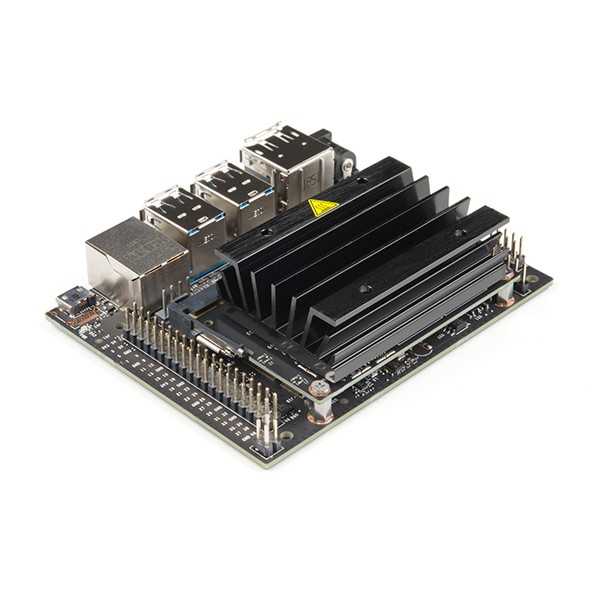

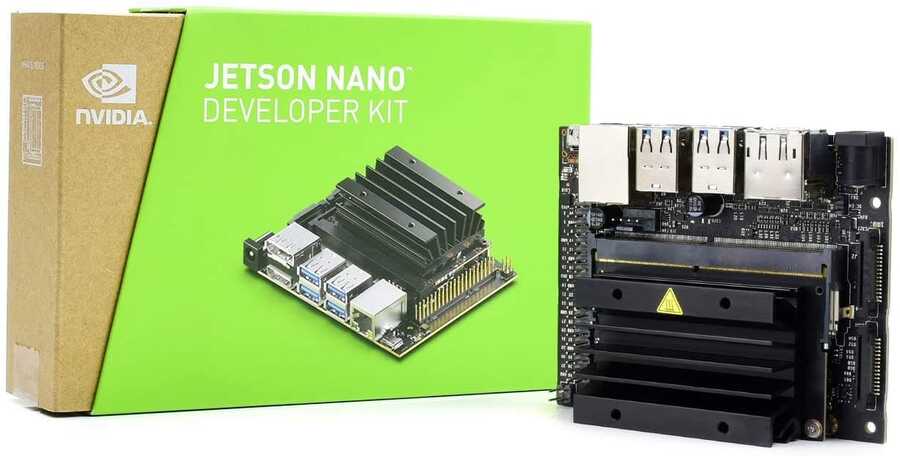

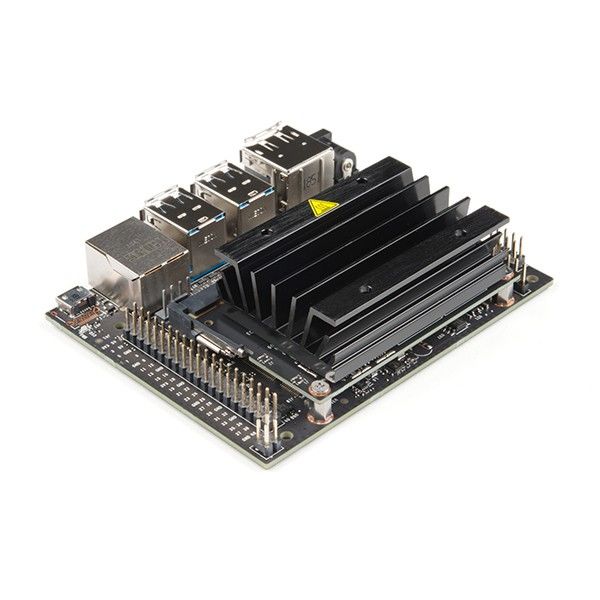

Nvidia Jetson Nano Development Kit

Nvidia Jetson Nano Development Kit

The NVIDIA Jetson Nano Developer Kit delivers the computational capability required to run modern AI algorithms in an unmatched size, power consumption, and price. Developers, self-learners, and makers can now run AI software development environments and models such as image classification, object detection, segmentation, and language processing.

The developer kit can be powered via micro-USB and comes with a wide range of I/O from GPIO to CSI. In this way, developers can easily connect various sensors to bring various AI applications to life. It also has an incredible energy efficiency with a consumption of 5 watts.

Jetson Nano is also powered by NVIDIA JetPack software, which includes the board support package (BSP), Linux Operating System, NVIDIA CUDA®, cuDNN and TensorRT™ software libraries required for deep learning, image processing, GPU programming, multimedia processing and more. The software can even be accessed using an easily formattable SD card image. Thus, a quick and easy start can be made.

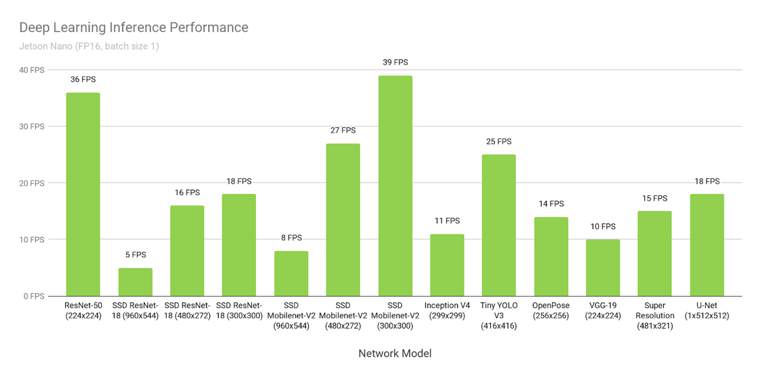

Jetson Nano can be easily used in image processing, artificial intelligence and deep learning projects with its high processing power capacity. It has a processing power of up to 472 GFLOPS. By running multiple neural networks in parallel and processing several high-resolution sensors simultaneously, Jetson Nano can be used for applications such as entry-level Network video recorders, home robots, and smart gateways with full analytics capabilities.

The same JetPack SDK is used across the entire NVIDIA Jetson(™) product family and is fully supported by NVIDIA's world-leading model training and model deployment platform software. This proven software block minimizes complexity and additional developer effort.

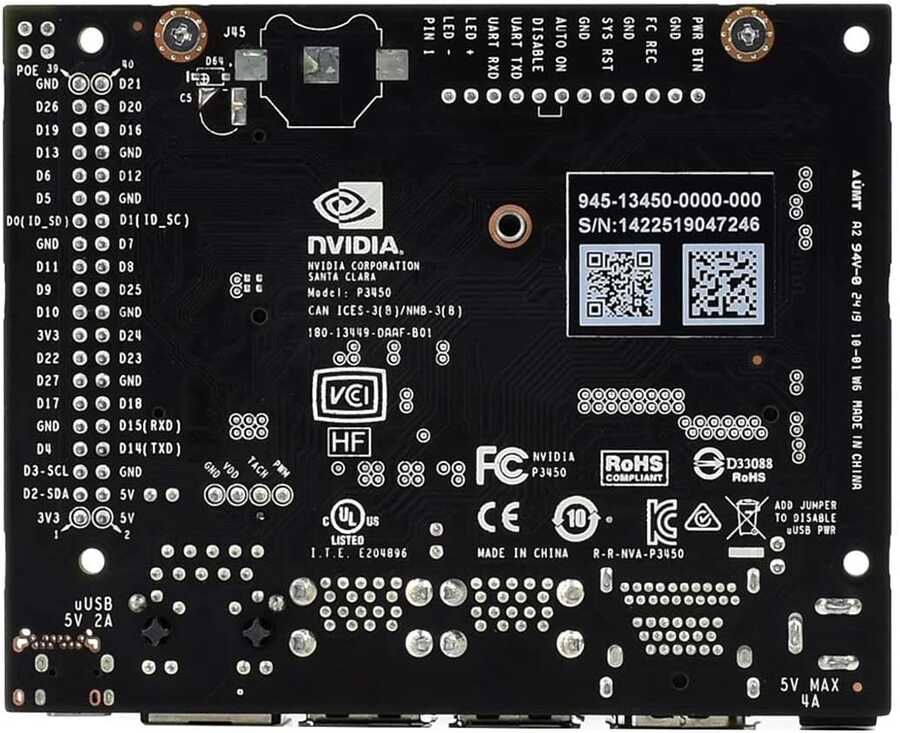

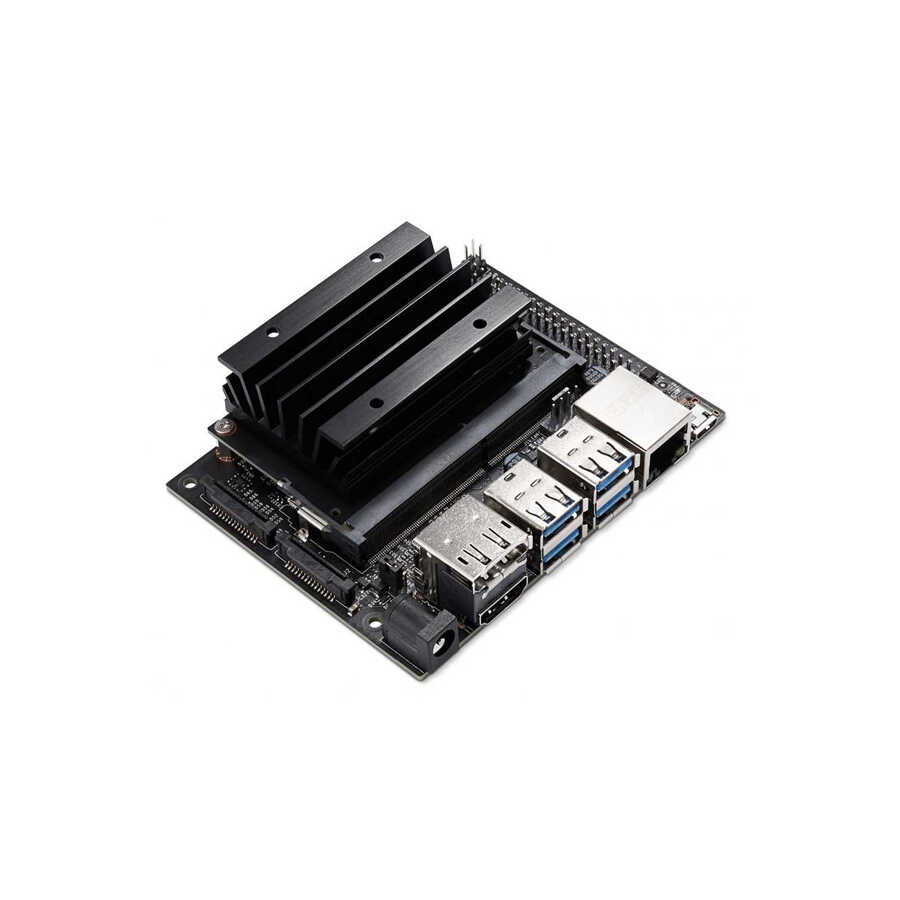

Nvidia Jetson Nano Development Kit Connections:

1 - microSD card slot for main storage
2 - 40-pin expansion header
3 - Micro-USB port for 5V power input or data
4 - Gigabit Ethernet port
5 - USB 3.0 port (x4)
6 - HDMI output port
7 - DisplayPort connector
8 - DC Barrel jack for 5V power input
9 - MIPI CSI camera connections

NVIDIA Jetson Nano Developer Kit Technical Specification:

• 128 Core Maxwell GPU
• Quad-core ARM A57 at 43 GHz
• 4GB 64 bit LPDDR4 Ram (25,6 GB/s)
• microSD card support
• Video Encoding: 4K 30fps | 4x 1080p 30fps | 9x720p 30fps (H.264/H.265)
• Video Decoding : 4K 60fps | 2x4K 30fps | 8x1080p 30fps | 18x720p 30fps (H.264/H.265)
• 2 x MIPI CSI-2DPHY lanes (Camera Connections)
• Gigabit Ethernet Port, M.2 Key E expansion connector (Recommendation AC8265 dual-mode NIC)
• HDMI ve DP ports
• 4xUSB 3.0 – USB 2.0 – Micro-B
• GPIO – I2C – I2S – SPI – UART
• Card Size: 100 x 80 x 29 mm
