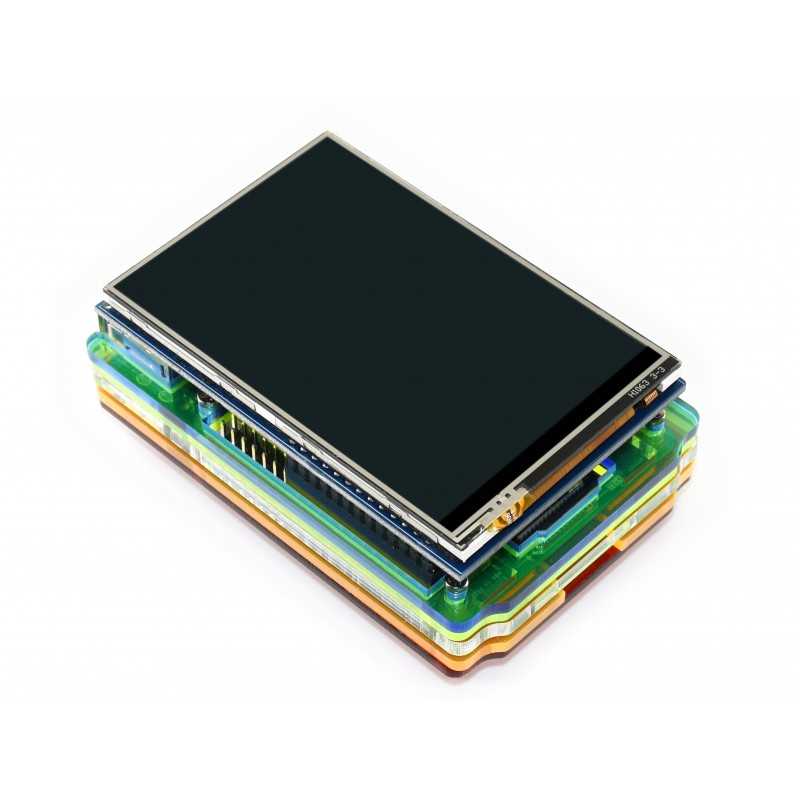

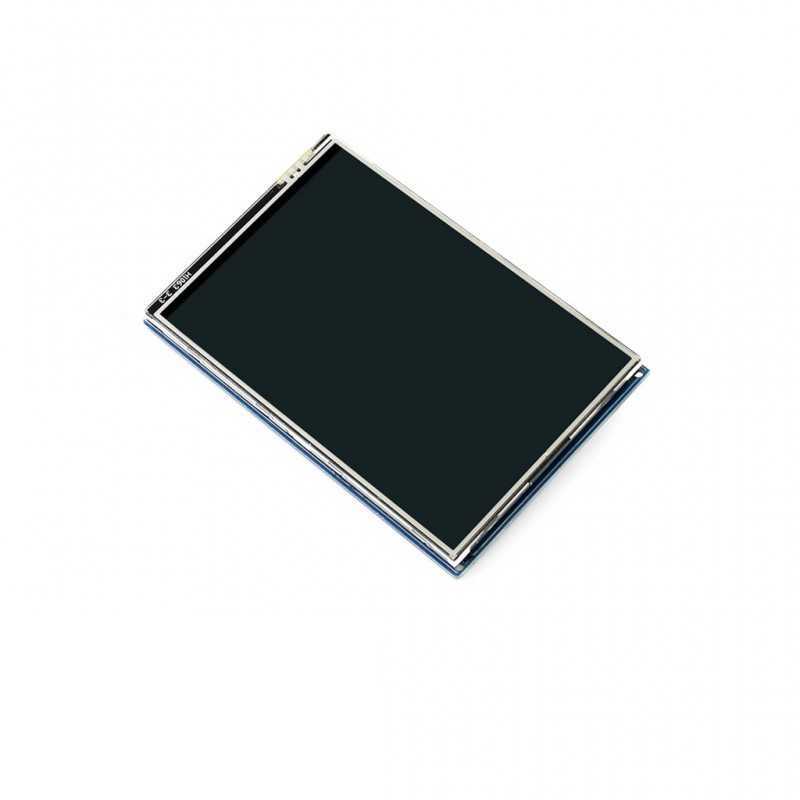

WaveShare 3.5 Inch Rezistif Dokunmatik LCD Ekran - 480x320 (B)

Ürün Kodu
:
18297
Marka / Menşei
:
WaveShare
Miktar
:
4
Fiyat
:
164,82 TL + KDV
KDV Dahil Fiyat
:
194,48 TL
Aynı Gün Kargo
Saat 15:00’e kadar yapılan alımlarda aynı gün kargo imkanı
Alışveriş Listeme Ekle
Bu ürünü listenize ekleyerek daha sonra inceleyebilirsiniz.
Yorum Ekle
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Öneri Kutusu
  • Features:

    • 480x320 hardware resolution
    • Resistive touch control
    • Supports any revision of Raspberry Pi (directly-pluggable)
    • Drivers provided (works with your own Raspbian/Ubuntu/Kali)
    • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
    • IPS technology, high quality and perfect displaying from very wide viewing angle

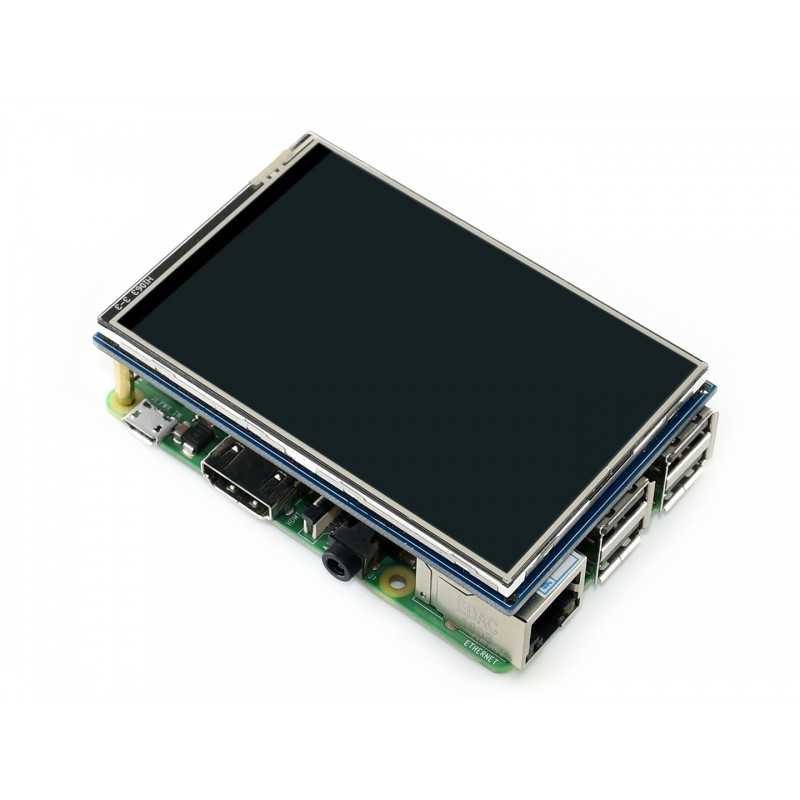

    • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
    • High quality immersion gold surface plating

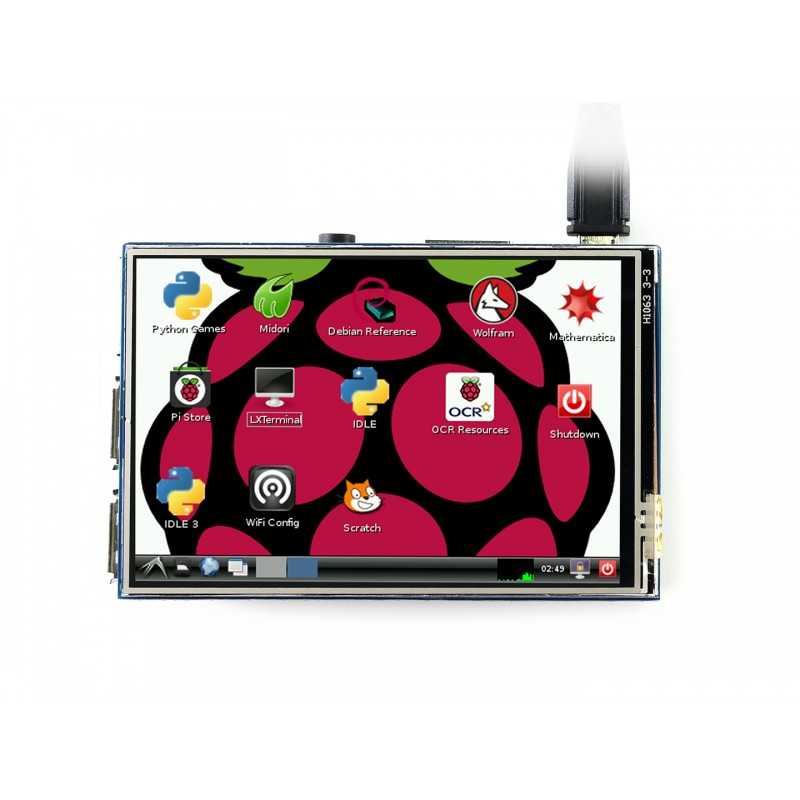

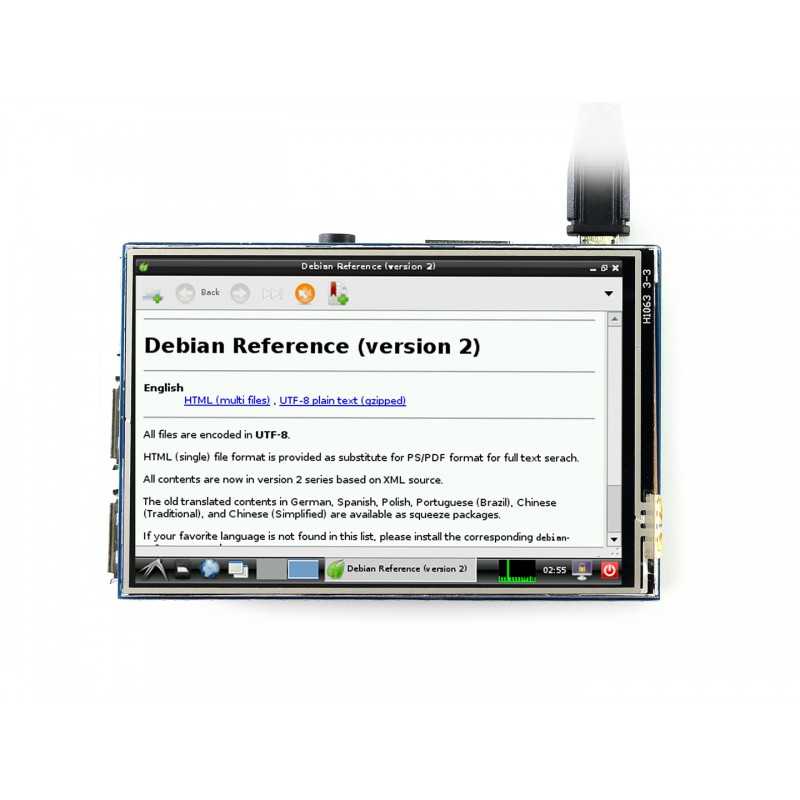

    • Combined with the Raspberry Pi, allows you to:
      • Take photos by touching (up to 17 camera modes)
      • Use software keyboard (system interaction without keyboard/mouse)


    3.5inch RPi LCD (A)
     and 3.5inch RPi LCD (B) are hardware compatible with each other (uses different driver), and can be mutually substituted in most cases. (A) for low cost ver. while (B) for IPS ver. with better displaying.

    Key Parameters:

    LCD TYPEIPS
    LCD INTERFACESPI
    TOUCH SCREEN TYPEResistive
    TOUCH SCREEN CONTROLLERXPT2046
    COLORS65536
    BACKLIGHTLED
    RESOLUTION320*480 (Pixel)
    ASPECT RATIO8:5
    POWER CONSUMPTIONTBD
    BACKLIGHT CURRENTTBD
    OPERATING TEMP. (℃)TBD

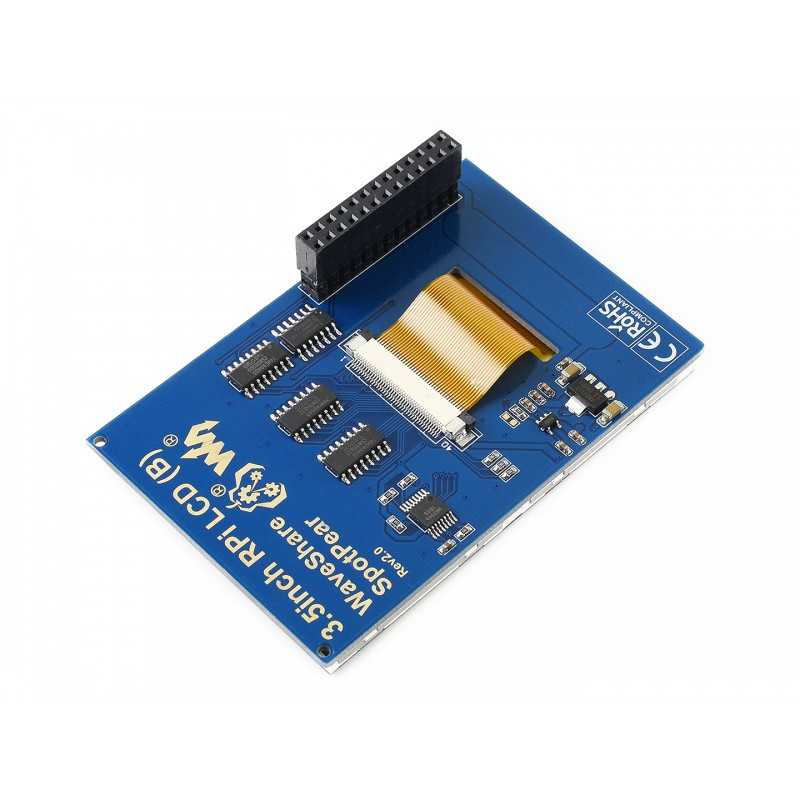

    Interface:

    PIN NO.SYMBOLDESCRIPTION
    1, 173.3VPower positive (3.3V power input)
    2, 45VPower positive (5V power input)
    3, 5, 7, 8, 10, 12, 13, 15, 16NCNC
    6, 9, 14, 20, 25GNDGround
    11TP_IRQTouch Panel interrupt, low level while the Touch Panel detects touching
    18LCD_RSInstruction/Data Register selection
    19LCD_SI / TP_SISPI data input of LCD/Touch Panel
    21TP_SOSPI data output of Touch Panel
    22RSTReset
    23LCD_SCK / TP_SCKSPI clock of LCD/Touch Panel
    24LCD_CSLCD chip selection, low active
    26TP_CSTouch Panel chip selection, low active

    External Dimension:

    3.5inch-RPi-LCD-B-dimension

    Documents:

    Ürün Özellikleri
    Boyut
    :
    3.5 - 5.0 inç
