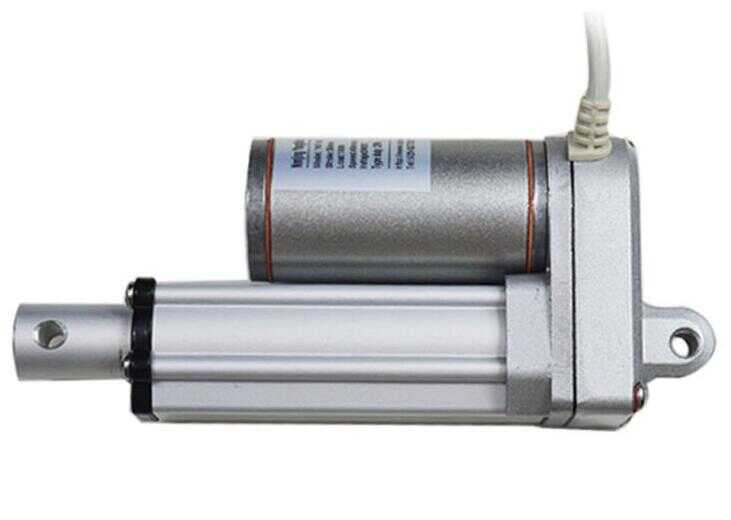

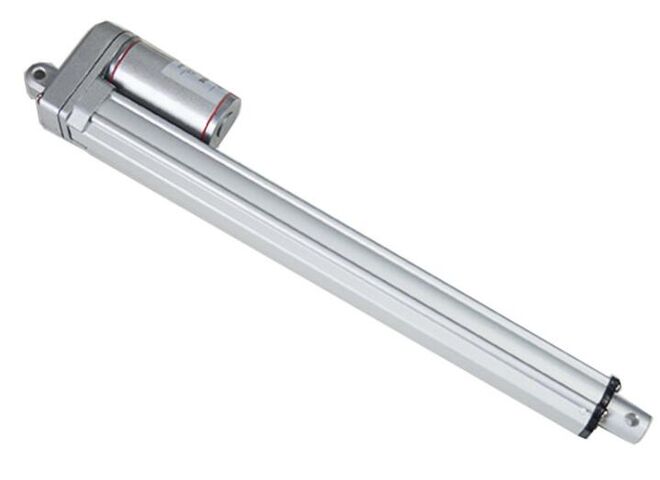

12V DC 200mm Linear Actuator - 7mm/s 1500N

12V DC 200mm Linear Actuator - 7mm/s 1500N

An actuator is a mechanical component created by adding various mechanical modifications to a motor that moves in a circular motion, converting this rotary motion into linear motion. These actuators (linear motors) operate very quietly and can be used in electrically controlled motion systems such as lifting heavy loads, automatic opening and closing drawers and cover systems, industrial applications, and robotics projects. This actuator is equipped with limit switches at both ends. Thanks to these switches, the motor detects when it reaches its limit and stops operating even if voltage is still applied.

12V DC 200mm Linear Actuator Technical Specifications:

• Operating Voltage: 12V DC

• Load Capacity (Force): 1500N

• Stroke Length: 200mm

• Limit Switch: Automatically stops when the actuator is fully extended or retracted

• Body Cross Section: 8 × 4 cm

• Total Length (Retracted): 32 cm

• Total Length (Fully Extended): 52 cm
