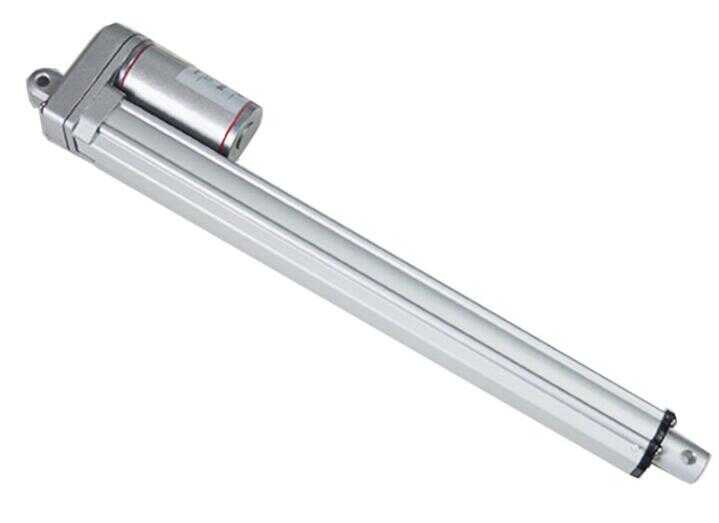

12V DC 500mm Linear Actuator - 7mm/s 1000N

12V DC 500mm Linear Actuator - 7mm/s 1000N

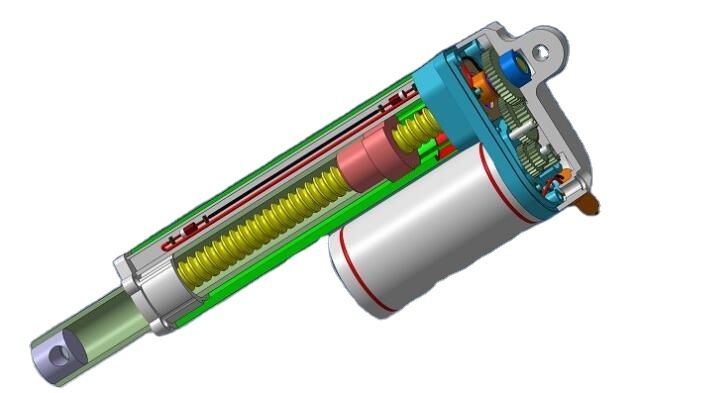

A linear actuator is a mechanical component designed by adding various mechanical modifications to a motor that produces rotary motion, converting that rotary motion into linear motion. This quiet-operating actuator is ideal for use in electrically controlled motion systems such as lifting heavy loads, automatic opening and closing mechanisms, drawers, lids, and many industrial and robotic applications. The built-in limit switches ensure that the motor automatically stops when it reaches its fully extended or retracted position, providing safe operation.

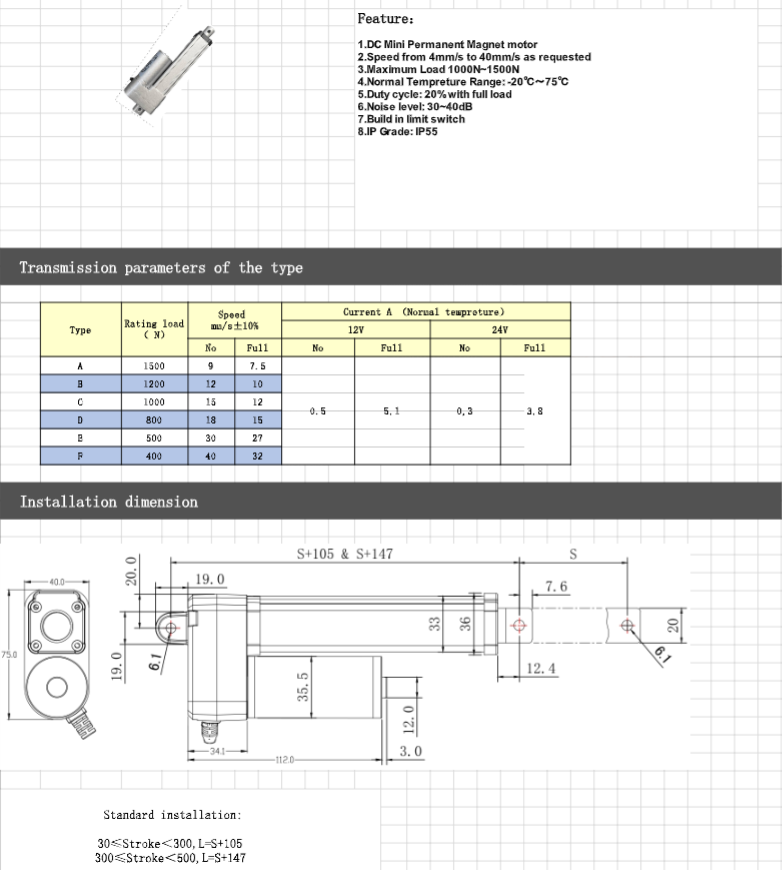

12V DC 500mm Linear Actuator Technical Specifications:

• Operating Voltage: 12V DC

• Load Capacity (Force): 1000N

• Speed: 7mm/s

• Stroke (Travel Distance): 500mm

• Limit Switch: Automatically stops when fully extended or retracted.

• Body Cross Section: 8 × 4 cm

• Total Length (Closed): 63 cm

• Total Length (Fully Extended): 113 cm
