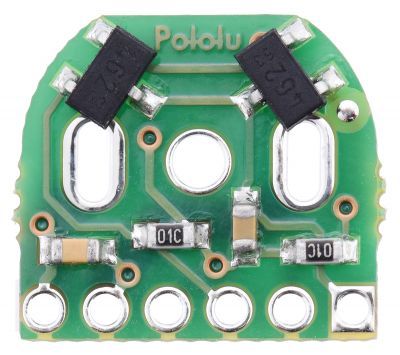

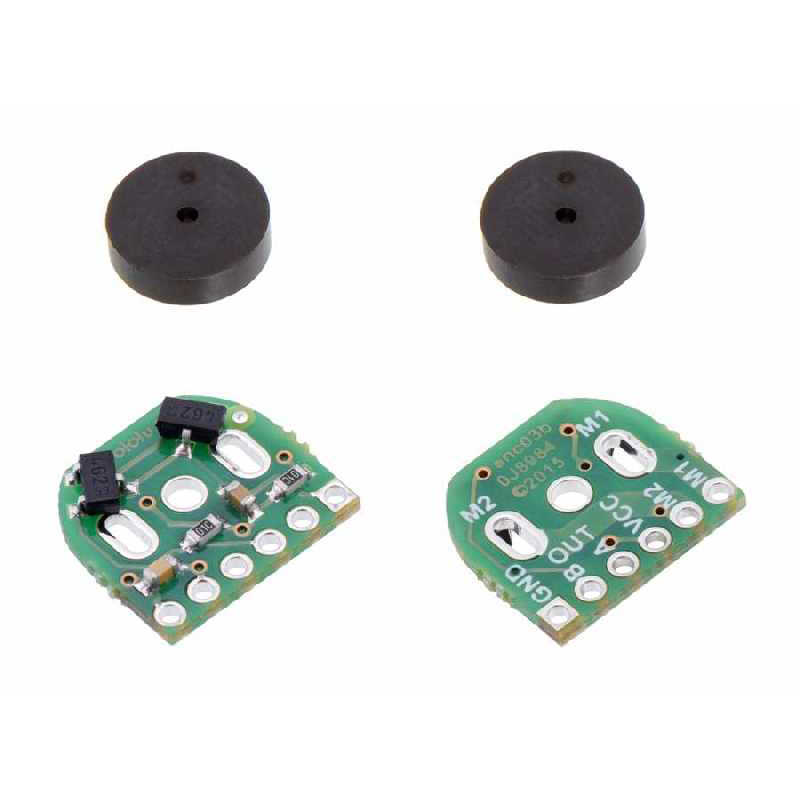

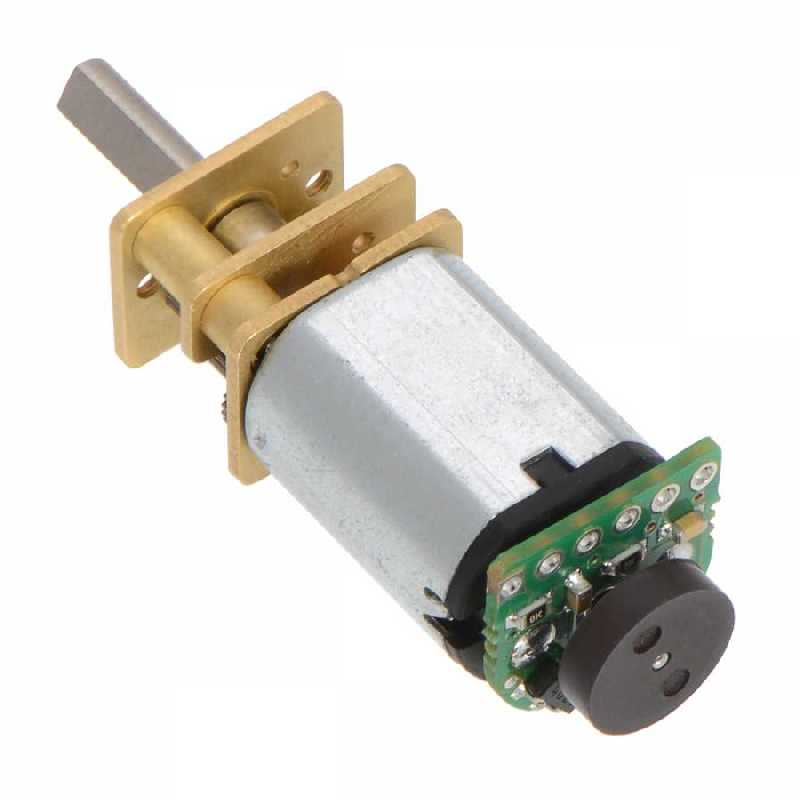

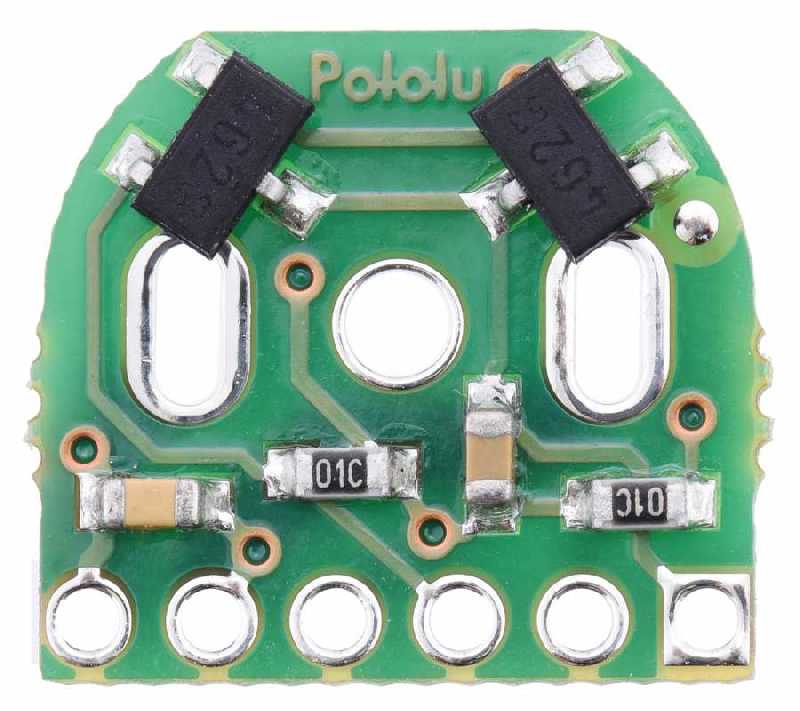

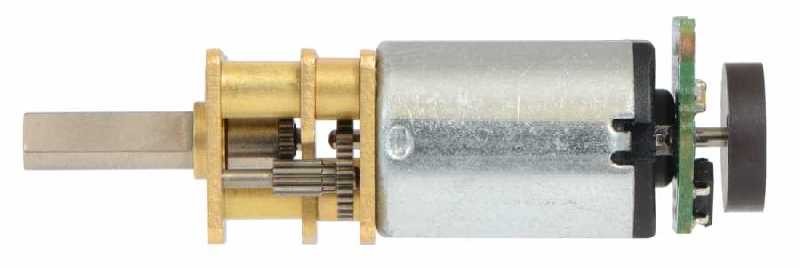

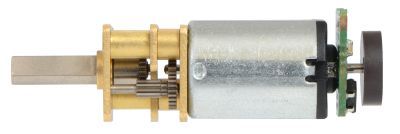

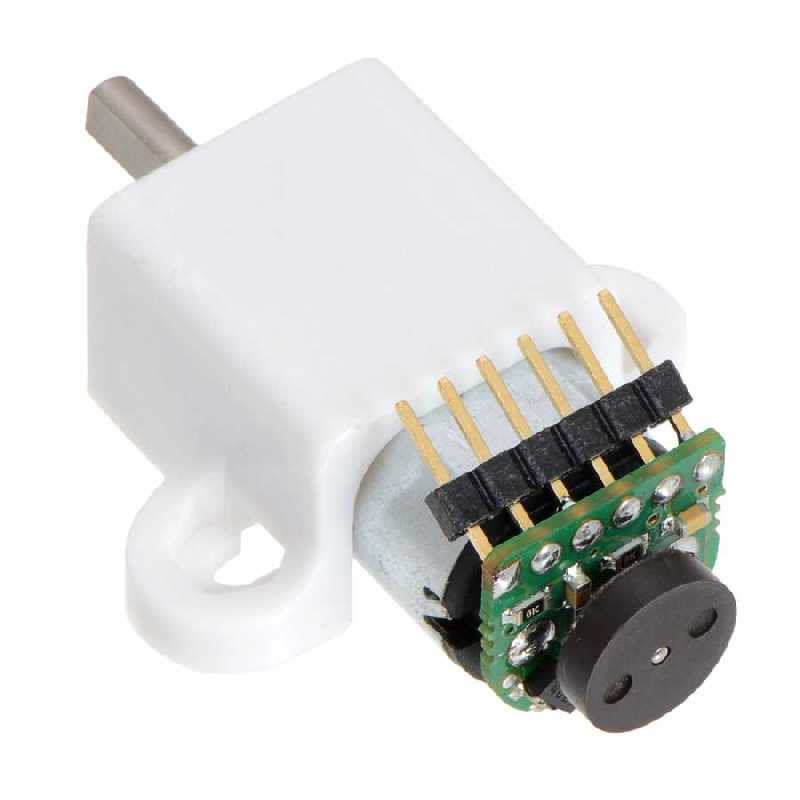

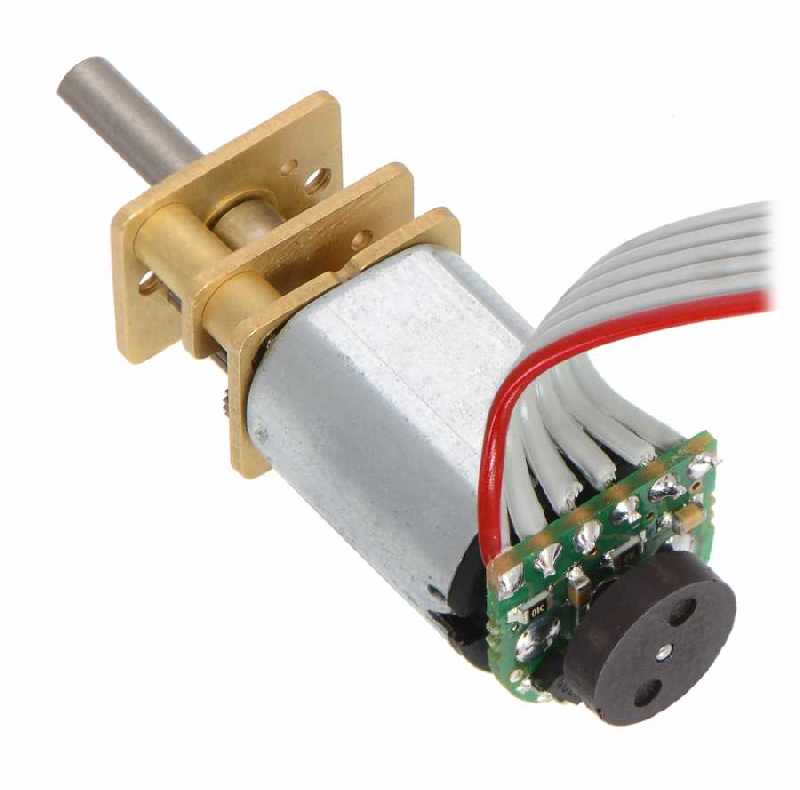

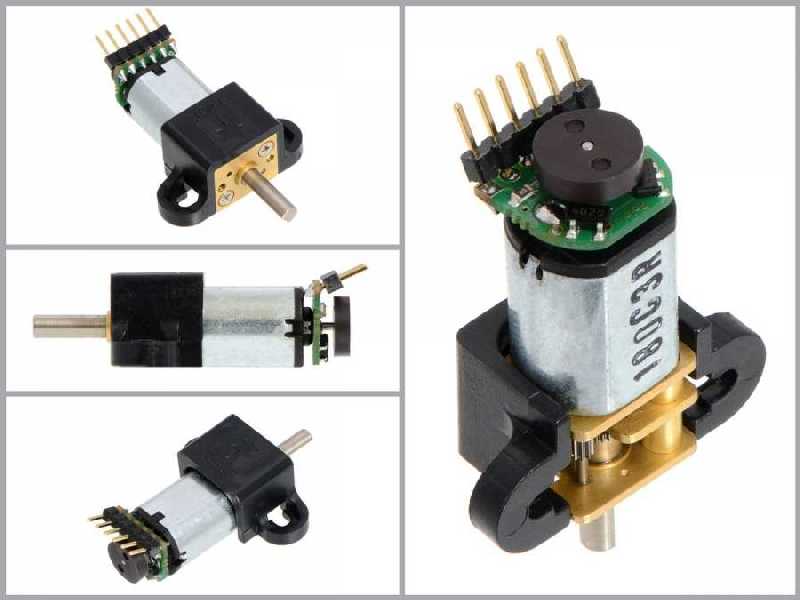

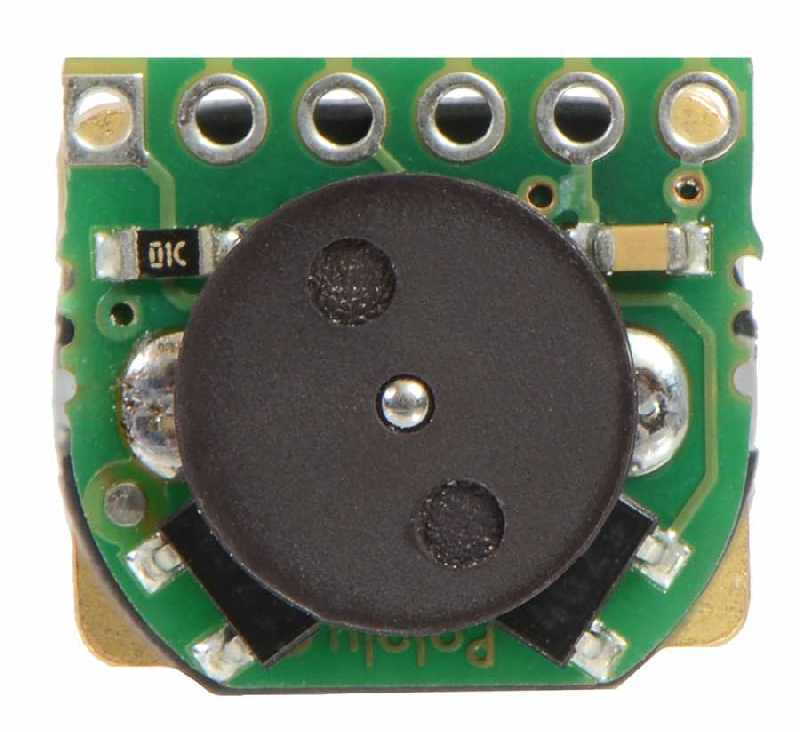

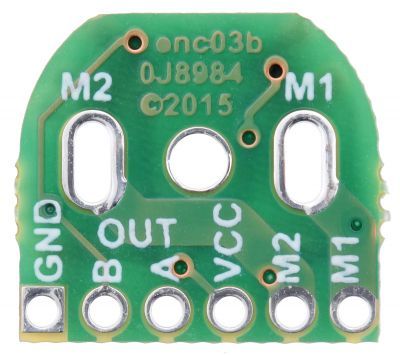

This is a magnetic encoder board that can be used with long shafted micro metal gearmotors. It contains two magnetic sensors and a spinning disk on the board and the board can be soldered to the connections of motor. It is compitable with carbon brushed micro motors. It gives 12 pulse square wave with a whole spin of disk.

12 cpr magnetic encoder pl-3081 black wave output for micro metal motors

Technical Details:
  • Operating Voltage: 2,7 - 18V
  • Dimensions: 10,6 mm x 11,6 mm
  • Weight: 1 gr

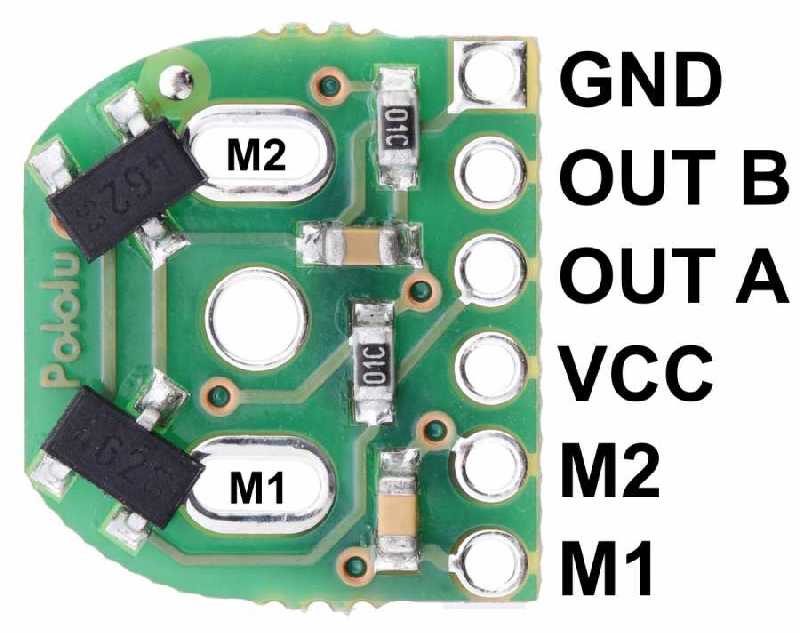

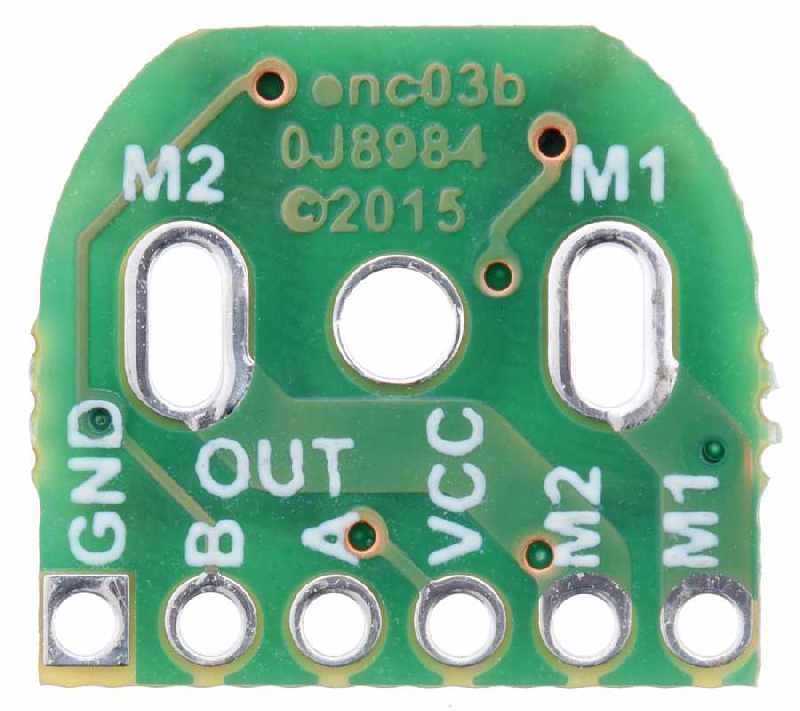

12 cpr magnetic encoder pl-3081 circuit diagram for micro metal motors

14813
12 CPR Magnetic Encoder for Micro Metal Gearmotors
12 CPR Magnetic Encoder for Micro Metal Gearmotors
:
401.95 TL + VAT
:
482.34 TL
