ACS711EX Current Sensor Carrier -15.5A to +15.5A

Product Code
:
13150
Brand / Origin
:
Pololu
Quantity
:
9
Without Vat
:
30.06 TL
Quantity:

-

+

Same Day Shipping
Orders placed until 3:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

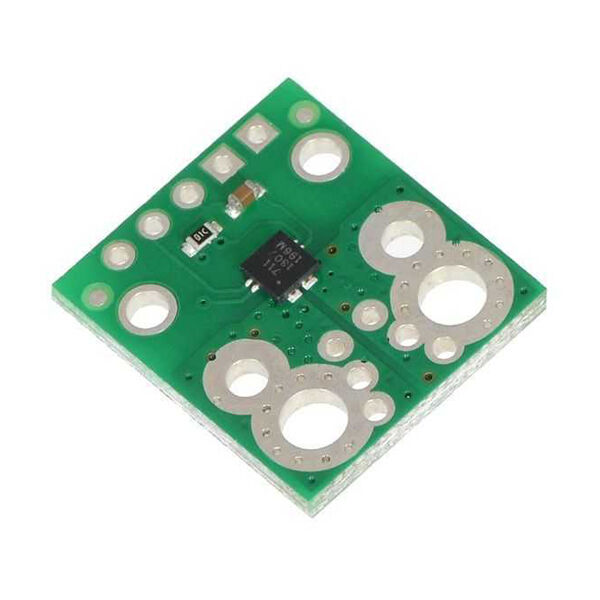

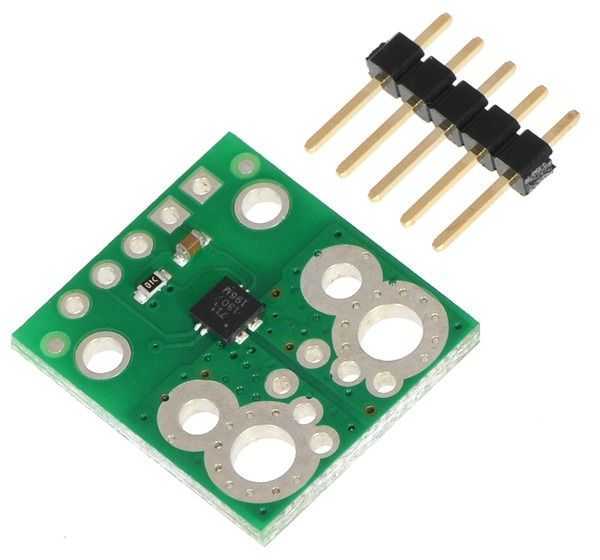

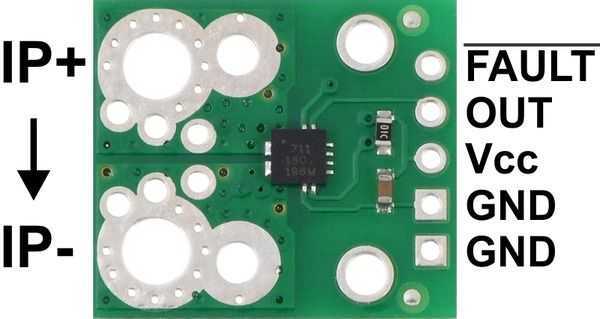

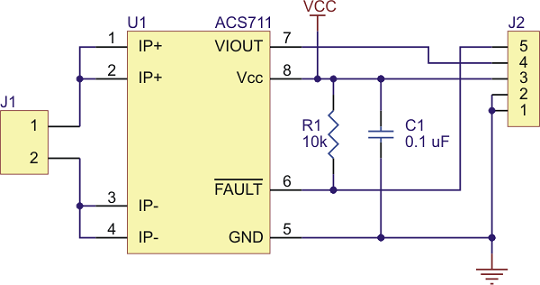

  • This board is a simple carrier of Allegro’s ±15.5 A ACS711 Hall effect-based linear current sensor. This version accepts a bidirectional current input with a magnitude up to 15.5 A and outputs a proportional analog voltage centered at Vcc/2 with a typical error of ±5%. It operates from 3 V to 5.5 V, so it can interface directly to both 3.3 V and 5 V systems.

    • Designed for bidirectional input current from -15.5 A to 15.5 A (though the robust sensor IC can tolerate 100 ms transient current spikes up to 100 A).
    • Conductive path internal resistance is typically 0.6 mΩ, and the PCB is made with 2-oz copper, so very little power is lost in the board.
    • Use of a Hall effect sensor means the IC is able to electrically isolate the current path from the sensor’s electronics (for applications up to 100 V), which allows the sensor to be inserted anywhere along the current path and to be used in applications that require electrical isolation.
    • 100 kHz bandwidth.
    • Good accuracy and reliability: factory calibration results in a typical total output error of ±5% at room temperature, the output offset voltage is extremely stable, and the sensor has zero magnetic hysteresis.
    • Overcurrent FAULT output latches low when current magnitude exceeds 15.5 A.
    • Operating temperature range of -40°C to 125°C.

    Note: This product is intended for use below 30 V. Working with higher voltages can be extremely dangerous and should only be attempted by qualified individuals with appropriate equipment and protective gear.

    Features:
    • Current Sensitivity: 0.009V/A(Vcc=3.3V)
    • Minimum Operating Voltage: 3V
    • Maximum Operating Voltage: 5.5V
    • Supply Current: 4mA

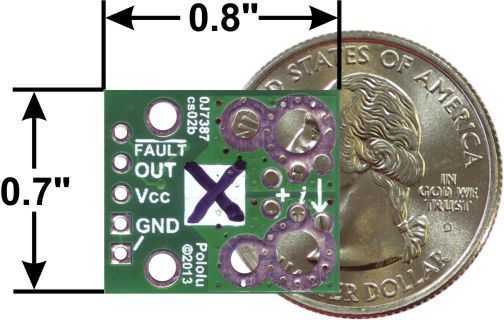

    • Dimensions: 1.8x2.0 cm
    • Weight: 1.0 gr
