Zynq-7000 ARM/FPGA SoC Development Board
Fiyat
:
20,342.79
TL + VAT
KDV Dahil Fiyat
:
24,411.35
TL
Money Order Price :
23,923.12
TL
%2 Discount
Out Of Stock
Notify me when its in stockImportant Note: This product is sold for academic use. Before purchasing the product, you must fill out the EUI_form_for_Digilent and Academic Request form and send it to [email protected] If you are going to use the product for external purposes, you must purchase the Zybo Z7-20 ARM&FPGA SoC

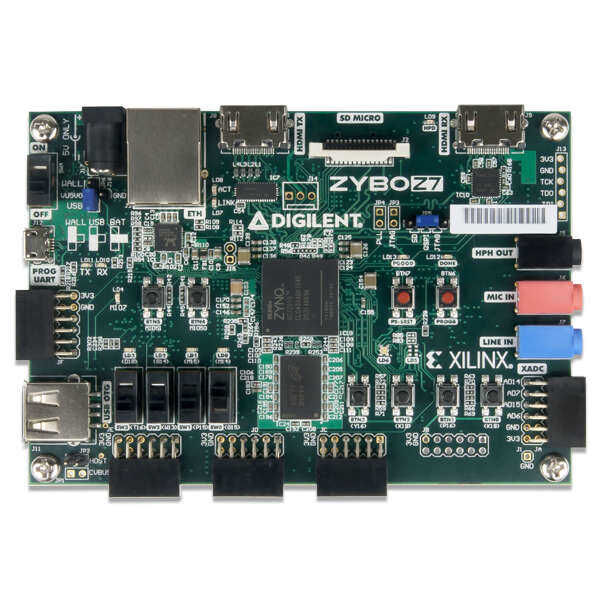

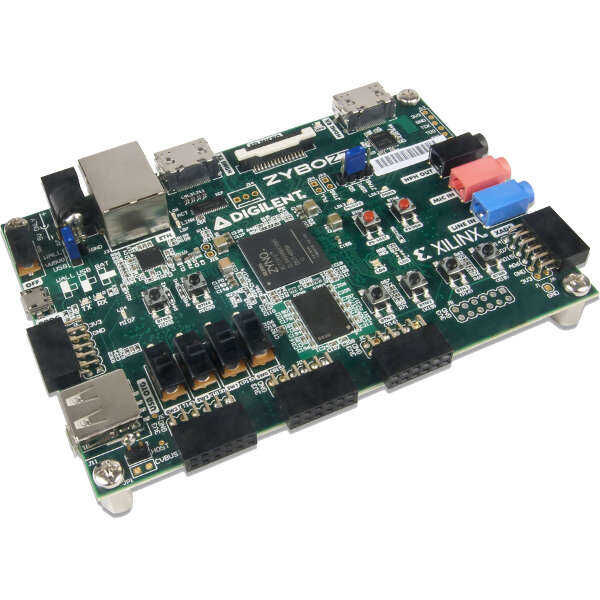

Zynq-7000 ARM/FPGA SoC Development Board
Launched in 2012, Zybo Z7, the second-generation update of Zybo, is a ready-to-use embedded software and digital circuit development board built on the Xilinx Zynq-7000 family.
The Zynq family, which successfully integrates a dual-core ARM Cortex-A9 processor with a Xilinx 7-Series FPGA, is based on the Xilinx All Programmable System-on-Chip (AP SoC) architecture.
On the Zybo Z7, Zynq is equipped with rich multimedia and connectivity peripherals to create a powerful single-board computer. The rich video features of Zybo Z7, including MIPI CSI-2 compatible PCam connector, HDMI input and output, and high DDR3L bandwidth, have been carefully selected to be an economical solution for visual applications.
The Zybo Z7’s Pmod connectors allow connection of over 70 Pmod peripheral cards from the Digilent catalog, such as motor controllers, sensors, and displays, making it easier to implement applications that require additional hardware.
Product content: ZYBO Z7-20 Card
You can find the comparison table of the Zybo series in the table below.
|
|
ZYBO |
ZYBO Z7-10 |
ZYBO Z7-20 |
||
|
Zynq Özellikleri |
Zynq Part No. |
XC7Z010-1CLG400C |
XC7Z020-1CLG400C |
||
|
CPU |
650 MHz dual core Cortex-A9 |
667 MHz dual core Cortex-A9 |
|||
|
Programming Options |
JTAG, Quad-SPI Flash, microSD |
||||
|
1 MSPS On-chip ADC |
No |
||||
|
Look-up Tables (LUTs) |
17,600 |
53,200 |
|||
|
Flip-Flops |
35,200 |
106,400 |
|||
|
Block RAM |
270 KB |
630 KB |
|||
|
Clock Management Block |
2 |
4 |
|||
|
Memory |
DDR |
512 MB DDR3 with 32-bit bus @ 1050 MHz |
1 GB DDR3L with 32-bit bus @ 1066 MHz |
||
|
Quad SPI Flash |
16 MB |
||||
|
micro SD Socket |
Yes |
||||
|
Power |
Login Options |
USB or 5V external power supply |
|||
|
Fan connector |
No |
Yes |
|||
|
USB & Ethernet |
Gigabit Ethernet |
Yes |
|||
|
USB-JTAG circuit |
Yes |
||||
|
USB to UART converter |
Yes |
||||
|
USB 2.0 OTG |
Host ve Slave |
||||
|
Audio and Video |
Audio Codec |
SSM2603 |
|||
|
VGA |
Yes |
No |
|||
|
Bidirectional HDMI |
Yes |
No |
|||
|
HDMI Output |
No |
Yes |
|||
|
HDMI Input |
No |
Yes |
|||
|
Pcam MIPI CSI-2 Camera Port |
No |
Yes |
|||
|
GPIO Aygıtlar |
Buttons |
6 |
|||
|
Keys |
4 |
||||
|
Led |
5 |
||||
|
RGB Led |
0 |
1 |
2 |
||
|
Extras |
Pmod |
6 |
5 |
6 |
|
|
Dimension |
H |
88 mm |
|||
|
V |
122 mm |
||||
Zybo Z7-20 ARM&FPGA SoC Technical Specifications:
ZYNQ Processor:
- 667 MHz dual-core Cortex-A9 processor
- DDR3L memory controller with 8 DMA channels and 4 high-performance AXI3 Slave ports
- High-bandwidth peripherals: 1G Ethernet, USB 2.0, SDIO
- Low-bandwidth peripherals: SPI, UART, CAN, I2C
- Programmable via JTAG, Quad-SPI flash, and micro SD card
- Programmable logic equivalent to Artix-7 FPGA
- 1GB DDR3L 32-bit bus-capable memory @ 1066MHz
- 16MB Quad-SPI flash, factory 128-bit random number, 48-bit globally unique EUI-48/64™ compliant identifier
- Micro SD card slot
- Can be powered by USB or any other external 5V
- Gigabit Ethernet PHY
- USB-JTAG programming circuit
- USB-UART bridge
- Host supported USB 2.0 OTG PHY
- MIPI CSI-2 supported PCam camera connector
- HDMI sink (in) port, CEC supported
- HDMI source (out) port, CEC supported
- Audio codec with stereo headphone, stereo line-in and microphone jacks
- 6 push-buttons (2 processor-connected)
- 4 slide switches
- 5 LEDs (1 processor-connected)
- 2 RGB LEDs
- 5 Pmod ports
- 8 total processor I/O
- 40 FPGA I/O
- 4 analog-capable 0-1.0V differential pairs connected via XADC
