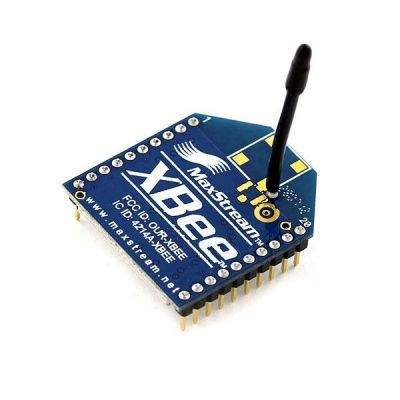

XBee modules are developed by Digi. They operates in 2.4 GHz frequency. They are wireless communication modules which are compatible with 802.15.4 communication protocol. Through to high-level design and easy usage, it makes serial communication in a reliable and easy way with computer and microprocessor systems. XBee supports communication within point to point and multi point networks such as Point to Point and Multi-Point. It offers the possibility of very easy matching and using with DigiMesh support.
Module output power is 1 mW. Module's communication range is 100 meter.
There is required two XBee modules for using them. The antenna is not available within the product.
Features:
- 3.3V @ 45mA
- Data Speed: 115.2 Kbps maximum
- 1mW output (+0 dBm)
- Communication Range: 100 meter
- Wire Antenna
- FCC Certificate
- 6x 10-bit ADC input pin
- 13x digital I/O pin
- 128-bit Encryption
- Indoor or outdoor field configuration
- AT and API Setting Commands
