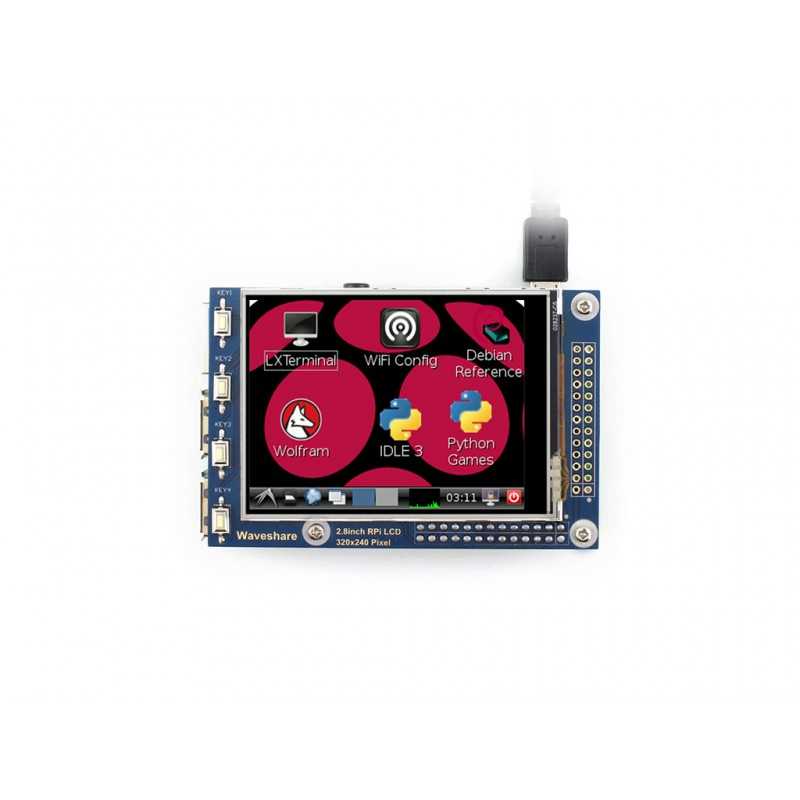

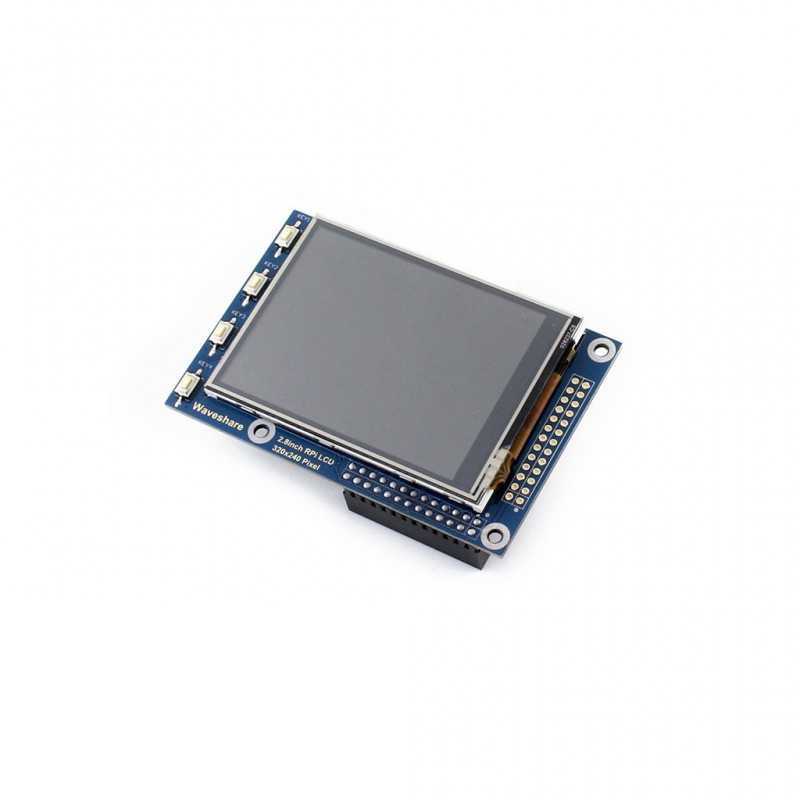

  • 320×240, 2.8 inch Resistive Touch Screen TFT LCD, Designed for Raspberry Pi

    Features:

    • 320x240 hardware resolution
    • Resistive touch control
    • Supports any revision of Raspberry Pi (directly-pluggable)
    • Drivers provided (works with your own Raspbian/Ubuntu/Kali)
    • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
    • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+)
    • 4 user keys
    • High quality immersion gold surface plating

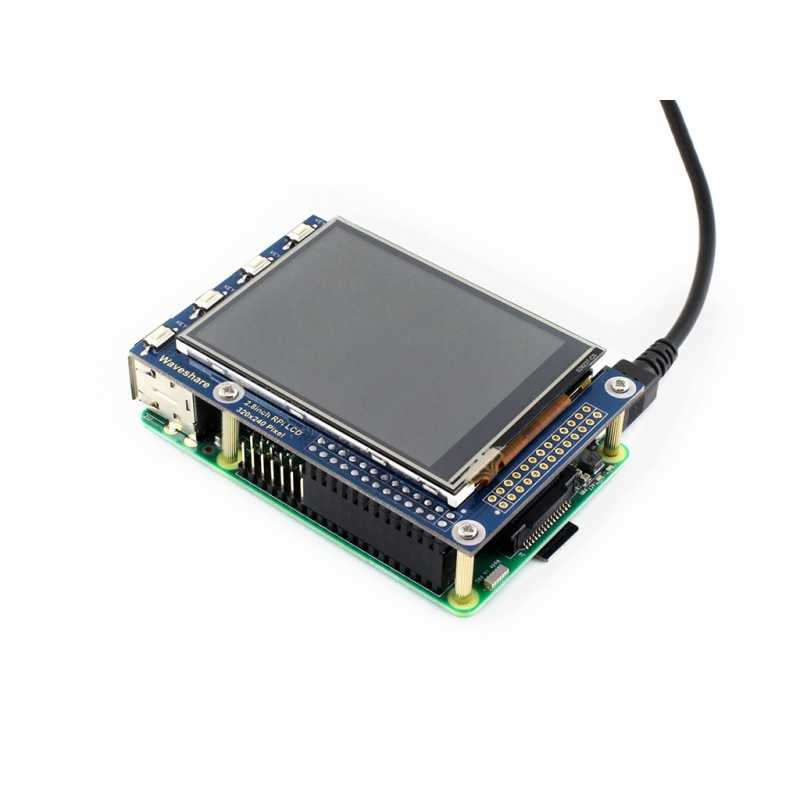

    • Combined with the Raspberry Pi, allows you to:
    • Take photos by touching (up to 17 camera modes)
    • Use software keyboard (system interaction without keyboard/mouse)

    2.8inch RPi LCD (A) and 3.2inch RPi LCD (B) are compatible with each other (the only differences are screen size and keys count), and can be mutually substituted in most cases.

    Technical Specs:

    • LCD type: TFT
    • LCD interface: SPI
    • Touch screen type: Resistive

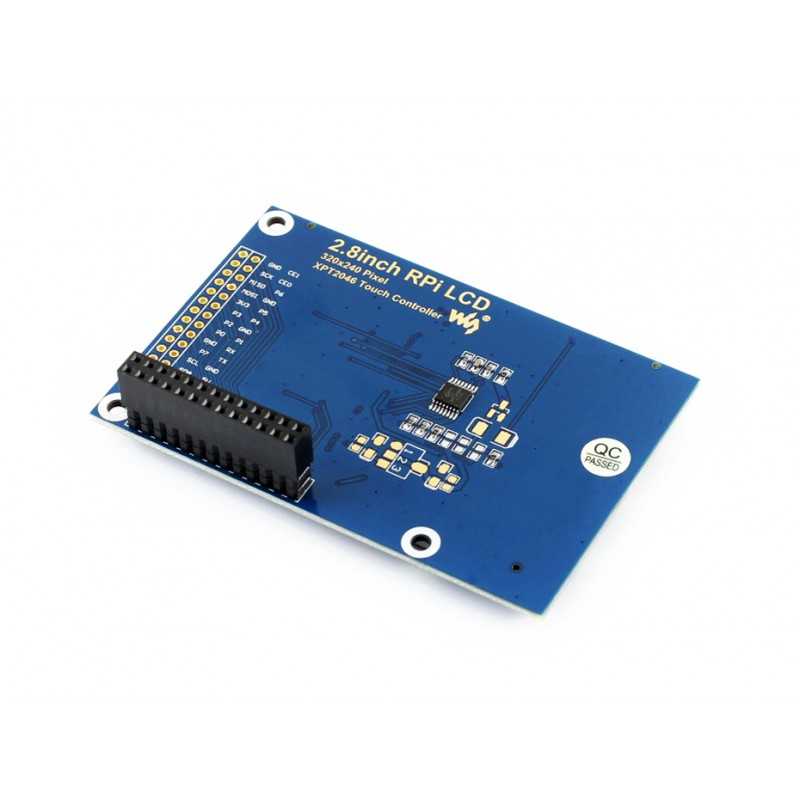

    • Touch screen controller: XPT2046
    • Colours: 65536
    • Backlight: LED
    • Resolution: 320x240 pixel
    • Aspect ratio: 4:3



    Interface Table:

    PIN NO.

    SYMBOL

    DESCRIPTION

    1, 17

    3.3V

    Power positive (3.3V power input)

    2, 4

    5V

    Power positive (5V power input)

    3, 5, 7, 8, 10

    NC

    NC

    6, 9, 14, 20, 25

    GND

    Ground

    11

    TP_IRQ

    Touch Panel interrupt, low level while the Touch Panel detects touching

    12

    KEY1

    Key

    13

    RST

    Reset

    15

    LCD_RS

    LCD instruction control, Instruction/Data Register selection

    16

    KEY2

    Key

    18

    KEY3

    Key

    19

    LCD_SI / TP_SI

    SPI data input of LCD/Touch Panel

    21

    TP_SO

    SPI data output of Touch Panel

    22

    KEY4

    Key

    23

    LCD_SCK / TP_SCK

    SPI clock of LCD/Touch Panel

    24

    LCD_CS

    LCD chip selection, low active

    26

    TP_CS

    Touch Panel chip selection, low active


    Dimensions:
