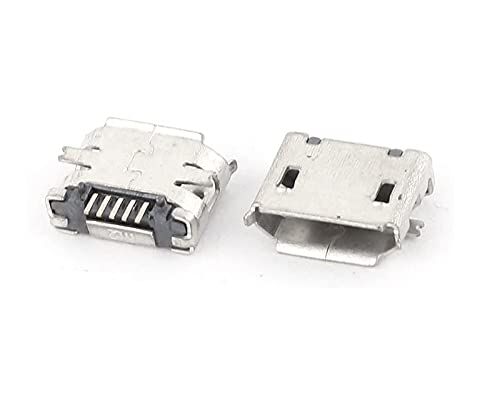

USB 2.0 Micro USB Connector - SMD
The USB 2.0 Micro USB Connector - SMD is a commonly used connection component in electronic projects. Widely preferred in portable devices, this connector stands out with its robust structure and compact size. Thanks to its SMD (Surface Mount Device) type structure, it can be easily mounted on circuit boards. It provides an ideal solution for data transfer and charging applications.
Technical Specifications:
- Type: USB 2.0 Micro USB Connector
- Mounting Type: Surface Mounted (SMD)
- Number of Pins: 5
- Application: Charging and Data Transfer
- Compatibility: Smartphones, tablets, wearable devices, and portable electronic circuits
- Durability: High usage life
- Operating Temperature: -20°C to +70°C
- Data Transfer Rate: 480 Mbps (USB 2.0 standard)
- Current Carrying Capacity: Maximum 1.8A
- Power Voltage: 5V DC
- Connector Type: Female (SMD Type)
- Material: Stainless steel and durable plastic body
- Contact Resistance: Maximum 30 mΩ
- Insulation Resistance: Minimum 100 MΩ
- Operating Life: 10,000 mating cycles
Dimensions:
- Length: 7.15 mm
- Width: 2.40 mm
- Height: 1.85 mm
- Mounting Foot Distance: 5.90 mm
- Pin Pitch: 0.65 mm
- Metal Shell Length: 3.10 mm
