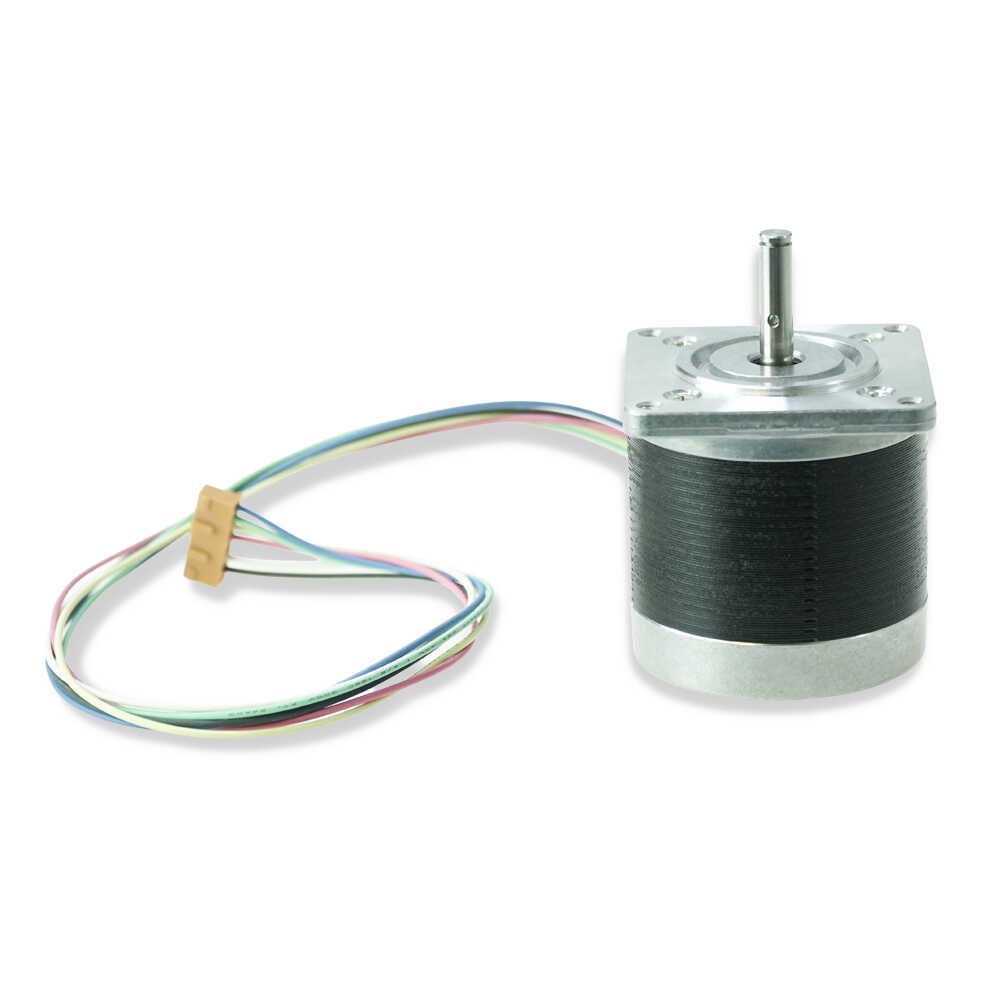

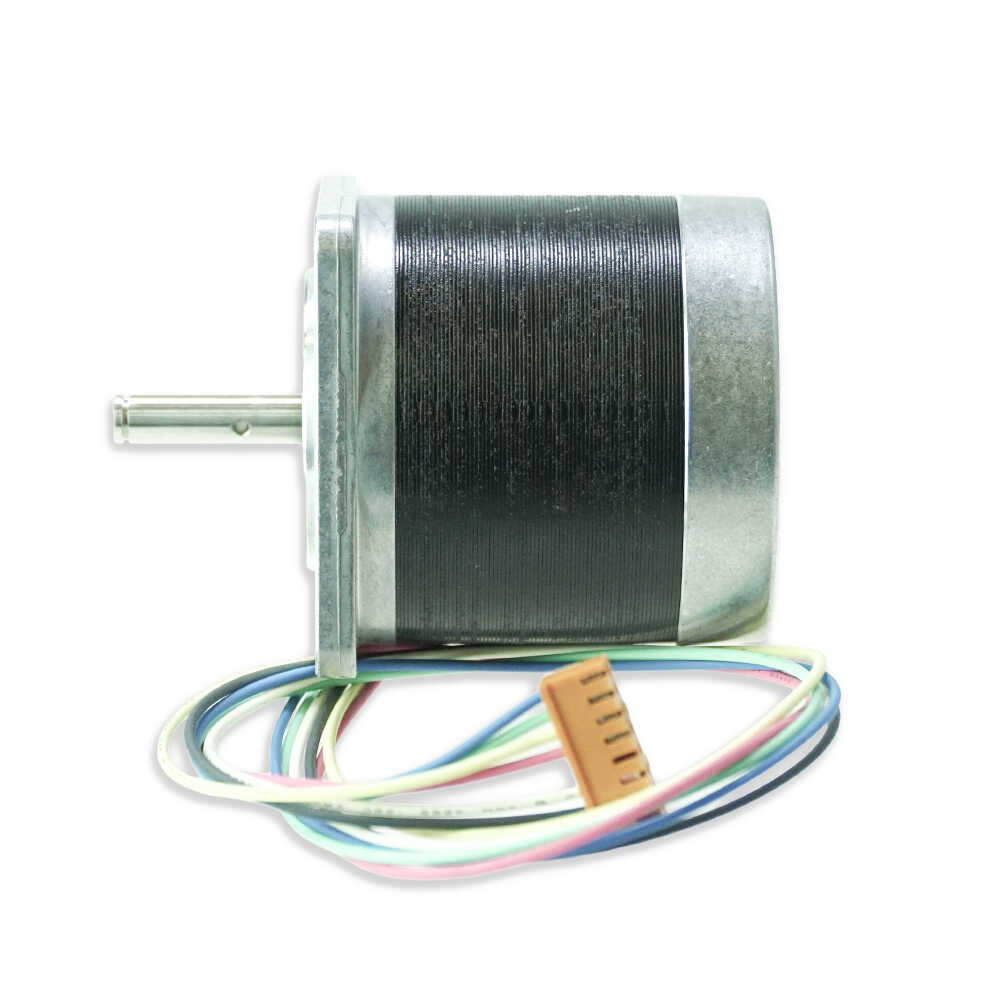

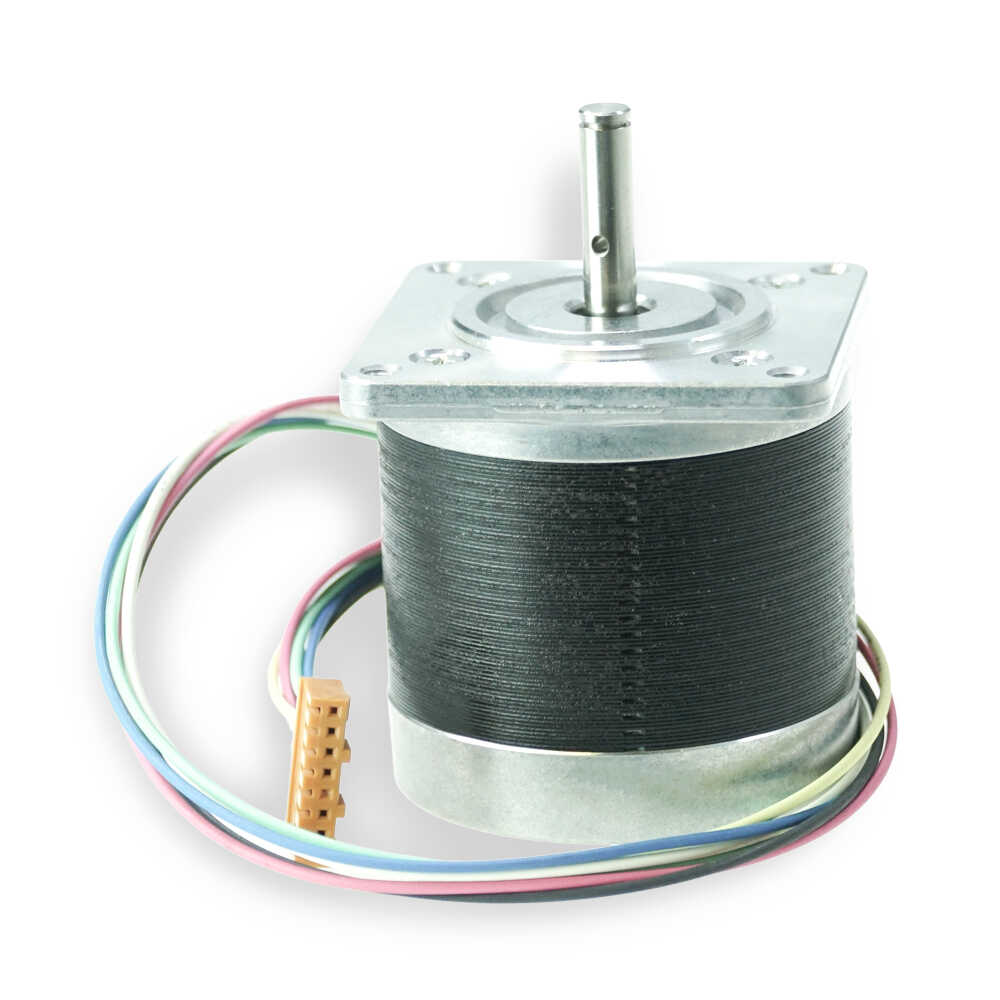

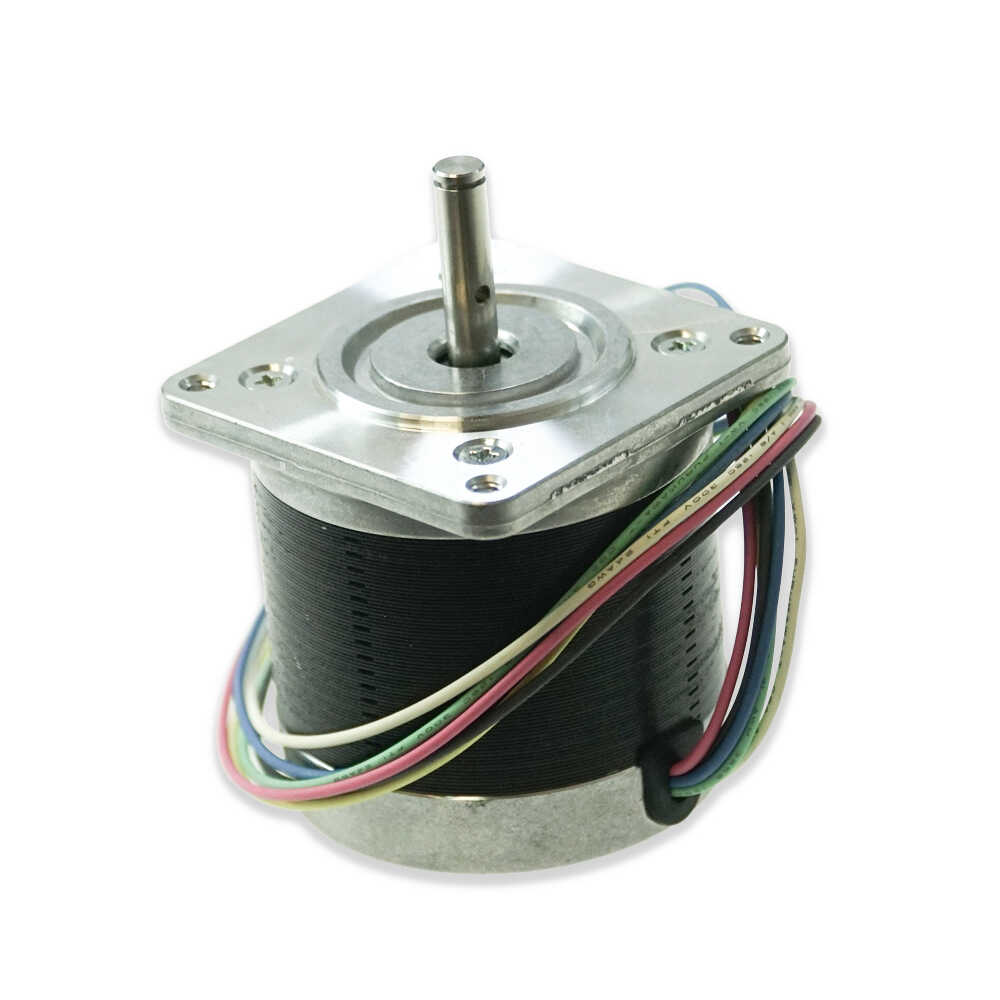

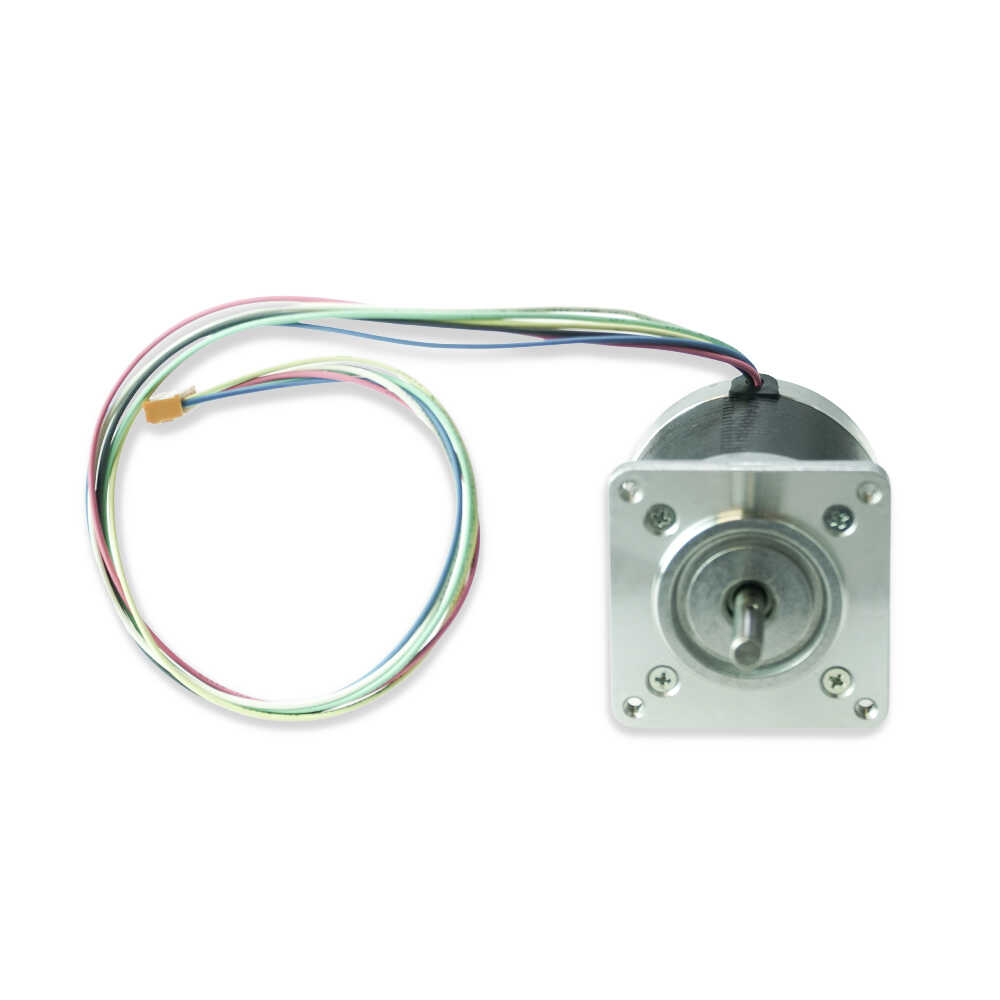

Unipolar Nema 23 Stepper Motor

Unipolar Nema 23 Stepper Motor

The 23LM-C047-09W Stepper Motor is an ideal solution for precise motion applications that require high torque. Compatible with unipolar drive type, this motor can be reliably used in many fields such as robotics, automation, CNC machines, and 3D printers. Its 1.8° step angle provides high positioning accuracy.

Unipolar Nema 23 Stepper Motor Technical Specifications:

• Motor Model: 23LM-C047-09W

• Step Angle: 1.8°

• Drive Type: Unipolar

• Rated Current: 1.5 A

• Winding Resistance: 3.1 Ω

• Holding Torque: 0.624 Nm

• Inductance: 6.1 mH

• Rotor Inertia: 0.16 kg-cm²

• Detent Torque: 0.0588 Nm

• Weight: 540g
