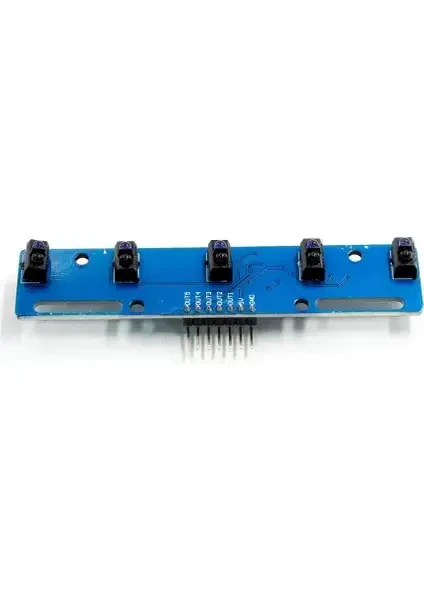

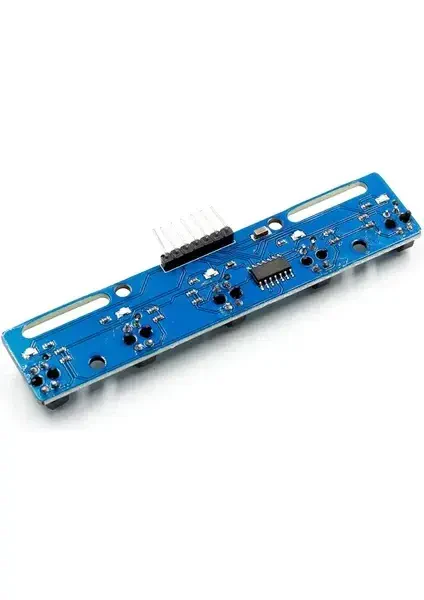

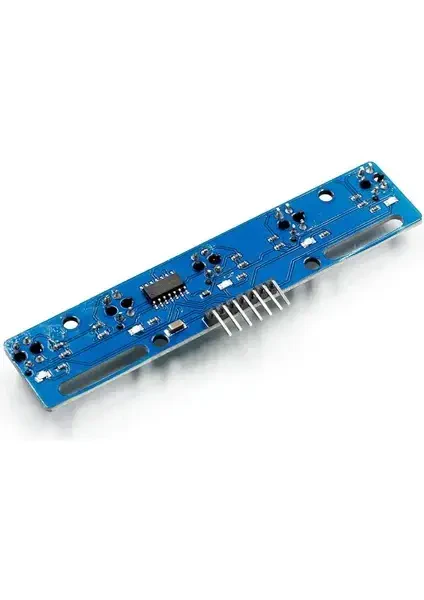

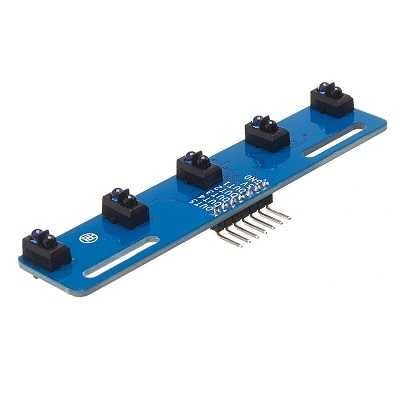

Notify me when its in stockTCRT5000 5 Channel Sensor Board
The TCRT5000 5 Channel Infrared Sensor Module is an ideal sensor for line-following robots and optical sensing projects. This module uses reflective optical sensor technology and combines an IR emitter with a phototransistor receiver to detect surrounding objects. It outputs analog signals, allowing easy evaluation of the detection distance and the object based on its reflection.
The TCRT5000 is capable of high-precision detection and can detect surface colors and lines, making it widely used in robotic applications. It operates efficiently with a high output current (typically 1 mA) and low power consumption. This sensor can be used in projects such as line tracking, distance measurement, and object color detection.
TCRT5000 and TCRT5000L are technically identical sensors; their detection range, output type, and performance are the same. The only difference is the lead length: the TCRT5000 model has a 3.5 mm short lead, while the TCRT5000L model has a 15 mm long lead. This difference allows the sensors to be suitable for different mounting requirements. Their electrical and optical properties are identical.
Technical Specifications:
Type: Reflective optical sensor
Detection Type: IR emitter + phototransistor receiver
Output Type: Transistor (outputs analog signal)
Lead Length: TCRT5000: 3.5 mm
Ideal Detection Range: 2.5 mm
Detection Range: 0.2 mm – 15 mm (with >20% collector current)
Typical Output Current: 1 mA
Daylight Filter: Yes
IR Wavelength (Emission): 950 nm
Operating Temperature: -25°C to +85°C
IR LED Maximum Current: 60 mA continuous, 3 A pulse (10 µs)
Total Power Consumption: 200 mW (at 25°C)
Collector-Emitter Voltage (Vceo): 70 V
Collector Current (Ic): 100 mA
Collector-Emitter Saturation Voltage: 0.4 V (IF = 10 mA, IC = 0.1 mA, D = 12 mm)
Typical ICEO (Dark Current): 10 – 200 nA (VCE = 20 V, IF = 0)
PCB Mounting Style: Through-Hole
Package Type: 50 pieces/tube
Lead-Free Production: Yes (RoHS compliant)
