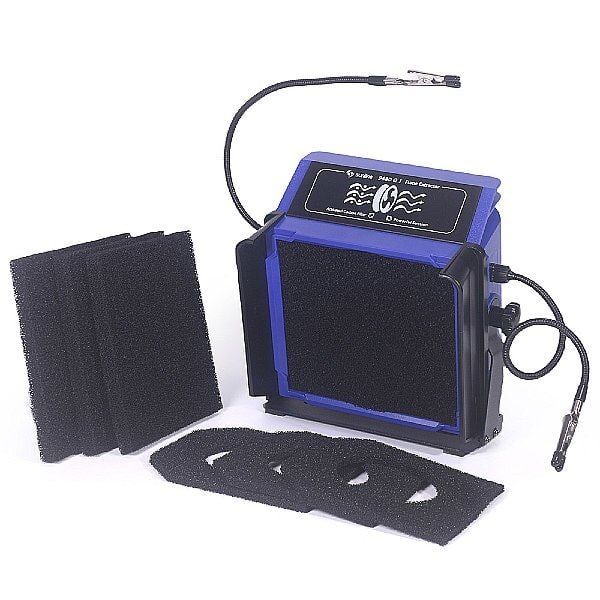

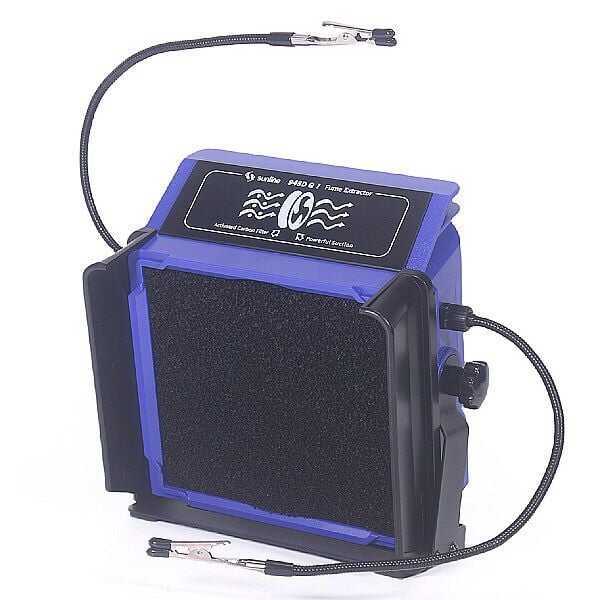

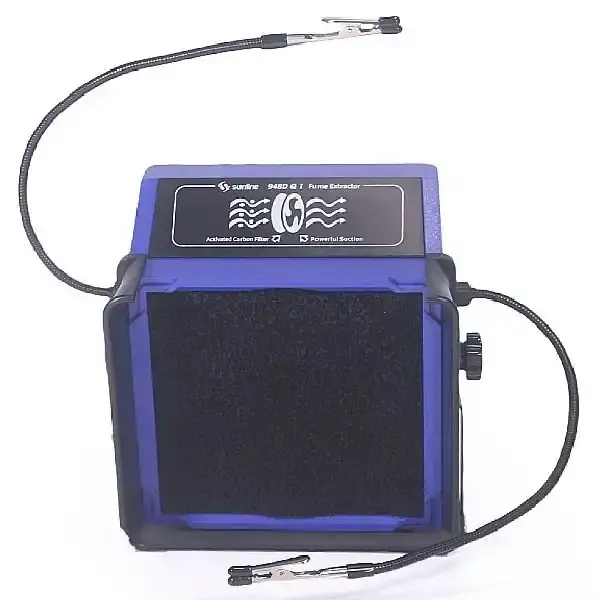

Sunline 948 DQI Soldering Station with Smoke Absorber

Sunline 948 DQI Soldering Station with Smoke Absorber

The Sunline 948 DQI is a high-performance soldering station with an integrated smoke absorber, designed for professional soldering applications. This model provides both efficient and safe operation with its strong heating capacity and smoke absorption feature. Temperature tracking is easy thanks to its LED Nixie display.

Thanks to its temperature stability and low tip grounding resistance, it is suitable for working with sensitive electronic components. Its compact design saves space on your desk and offers ergonomic use.

Product Features:

• The soldering station features a sleep mode that activates after 10 minutes of inactivity.

• Sleep mode helps extend the life of soldering tips and the heating element.

• Equipped with a high-power 110W soldering iron for fast and stable heating performance.

• Provides precise temperature control with PID temperature stabilization feature.

• Energy-saving with automatic shutdown feature.

• Temperature unit can be switched between °C/°F for user preference.

• Digital temperature calibration ensures accurate temperature over long-term use.

Technical Specifications:

• Model Number: 948DQ-I

• Nominal Voltage Range: 220V

• Maximum Power: 200W

• Soldering Iron Power: 110W

• Rated Power: 25W

• Main Unit Dimensions: L90 x W145 x H164 mm ±5mm

• Temperature Range: 200 ~ 480°C

• Display: LED Nixie

• Tip Grounding Resistance: <2 Ohm

Package Contents:

• LED Nixie Display

• X-2 Soldering Iron Holder

• Helping Hand
