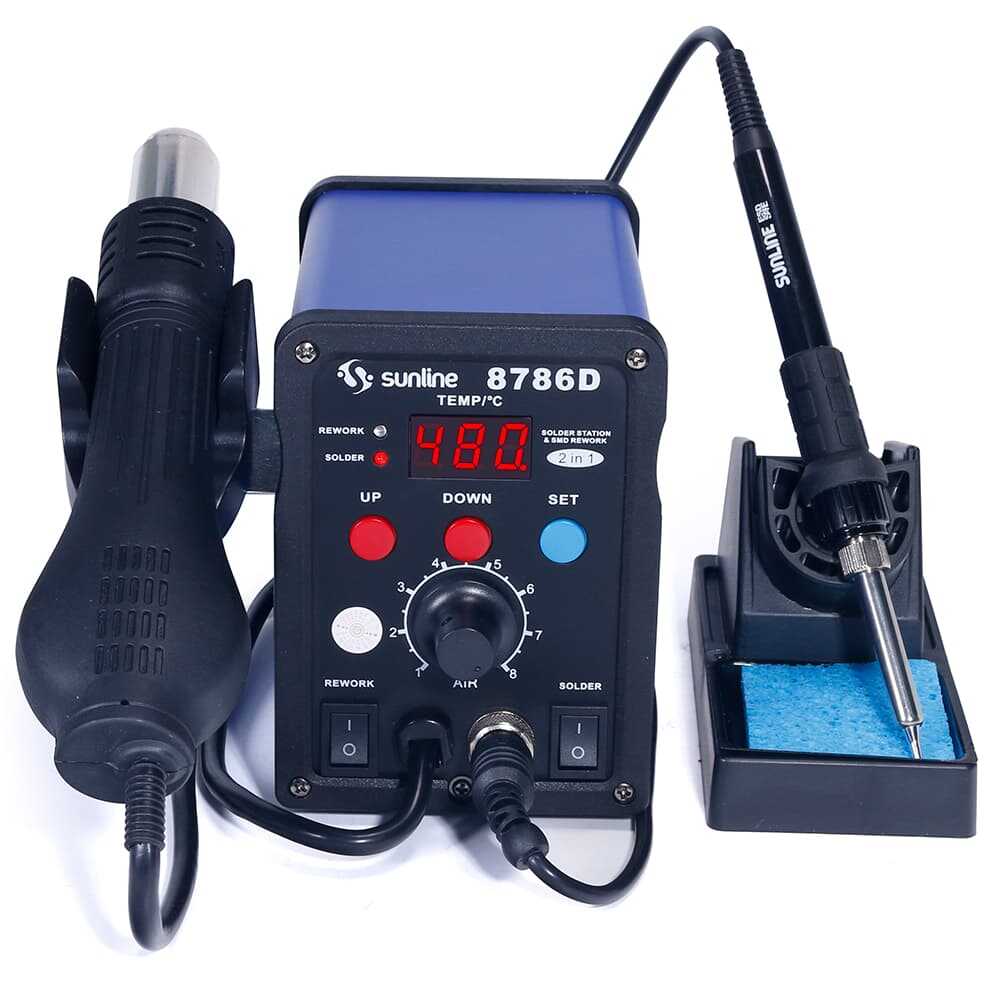

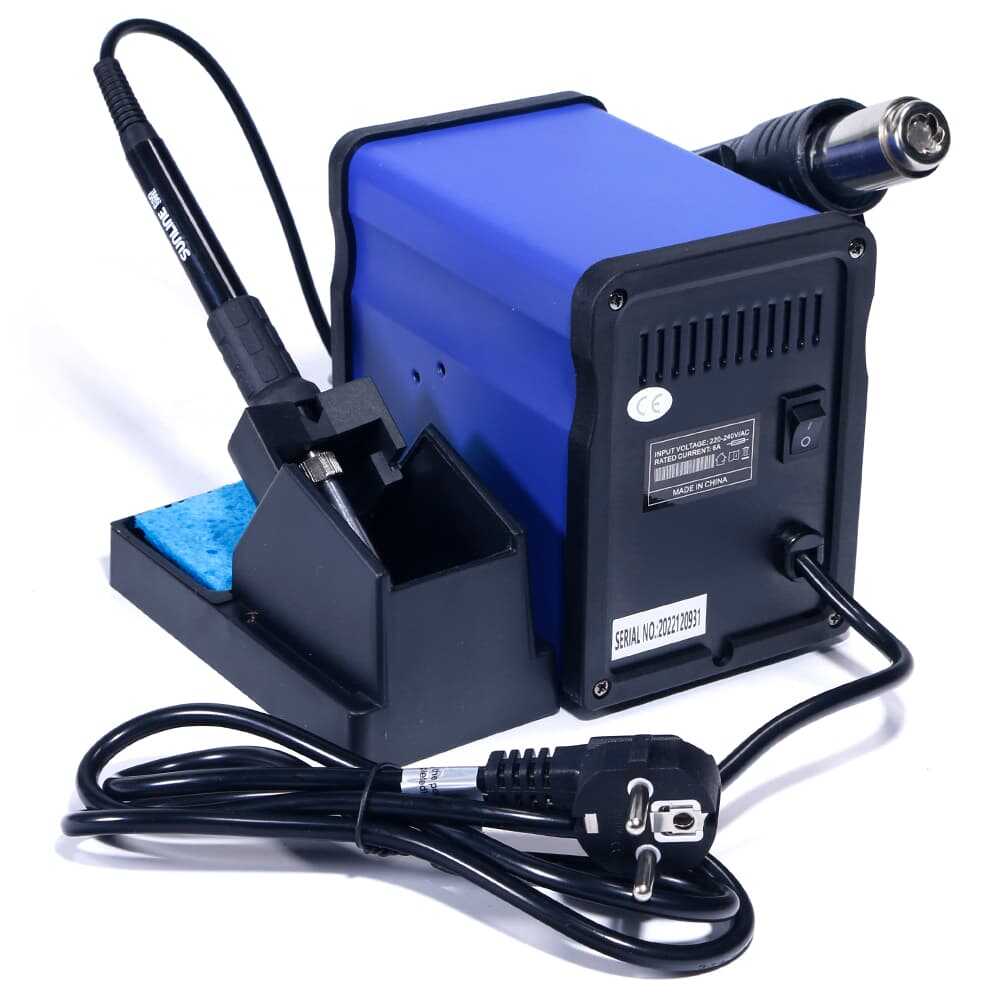

Sunline 8786D Soldering Iron Station

Sunline 8786D Soldering Iron Station

Sunline 8786D Soldering Iron Station, one of the best in its class with its superior features, is ideal for safe use. It has been transformed into a device that takes up much less space, combining "soldering" and "hot air installations", with the use of the management of the needs of the sector. Energy saving and high performance production as well as practicality and ergonomic design increase the operations in your applications. Intelligent P.I.D and intelligent sensing, which is microcomputer-controlled, providing short-circuit, open-circuit, over-temperature and overload protection, adapting to the harsh environment of low and high temperature compensation, cool airflow content are just a few of them!

Sunline 8786D Soldering Iron Station Technical Specifications:

• Model: 8786D
• Power Consumption: 700W
• ESD: ✓
• Hot Air Station Section:
  • Airflow Type: Brushless Fan
  • Blowing Flow: 120L/MIN
  • Temperature Range: 100-450 oC
  • Temperature Stability: ± 1 °C
  • Display Type: LED
  • Arm Cable Length: 100 cm
  • Manual Operation: ✓
  • Automatic Operation: ✓
• Soldering station Part:
  • Power Consumption: 75W ± 10%
  • Temperature Range: 200-450 oC
  • Temperature Stability: ± 1 °C
  • Grounding Voltage: 2 mV
  • Earth Impedance: 2 ohms
  • Display Type: LED
  • Arm Cable Length: 100 cm
  • Arm Warmer: 15Ω
  • Calibration Mode: PID Digital Programmed Calibration
  • Manual Operation: ✓
  • Automatic Operation: ✓
• Weight: 2.85 kg
• Size: 260x165x148mm

Brushless Fan Advantages:

• High Efficiency
• Quiet Operation
• Long life
• More Torque
• High Moment Volume Ratio
• Linear Moment Velocity Relationship
• Does not create electrical voltages

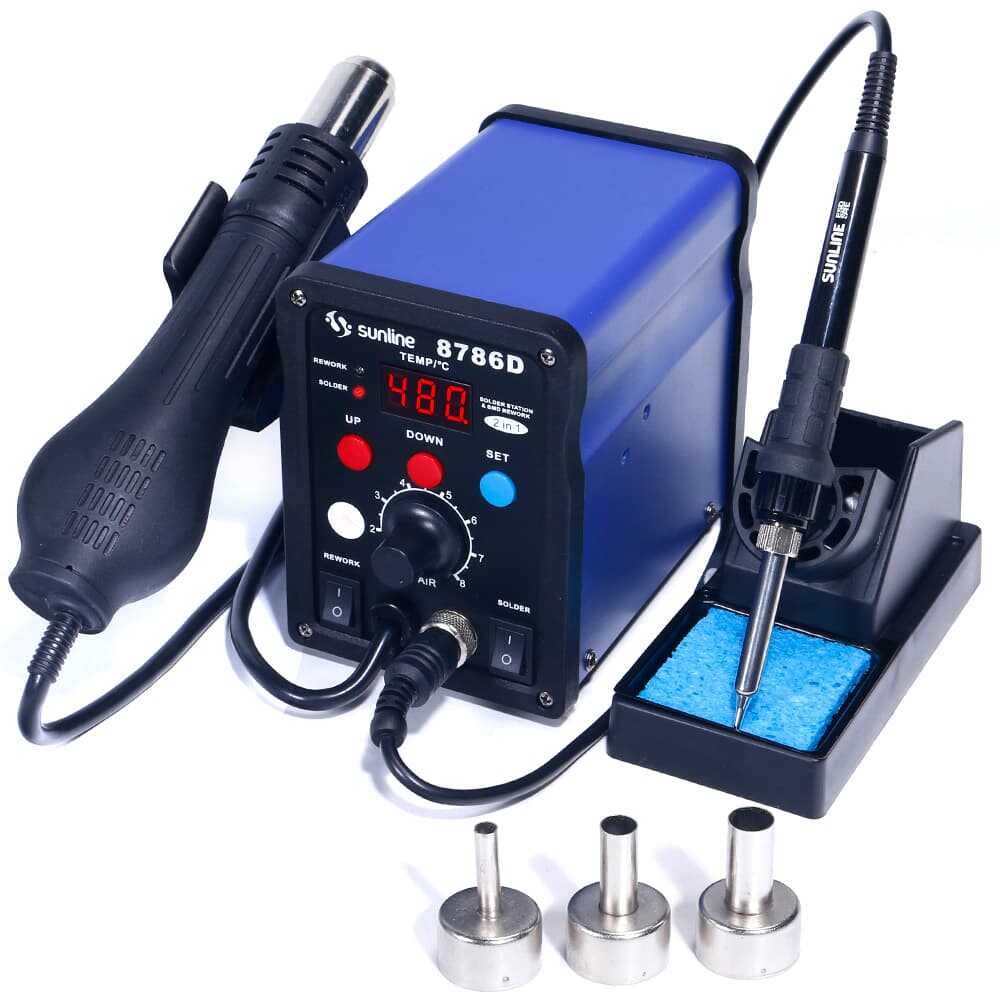

Sunline 8786D Soldering Iron Station Package Contents:

• 1 Piece Unit Main Unit
• 1 Piece Hot Air Blowing Arm
• 1 Piece Hot Air Blowing Arm Stand
• 1 Piece 907 F 6 Pin Soldering Arm
• 1 Piece Soldering Arm Stand
• 4 Nozzles in Different Sizes
• 1 Piece Power Connection Cable (AC)
• 1 Piece Soldering Iron Tip Cleaning Sponge
• 1 Piece IC Integrated Holder
