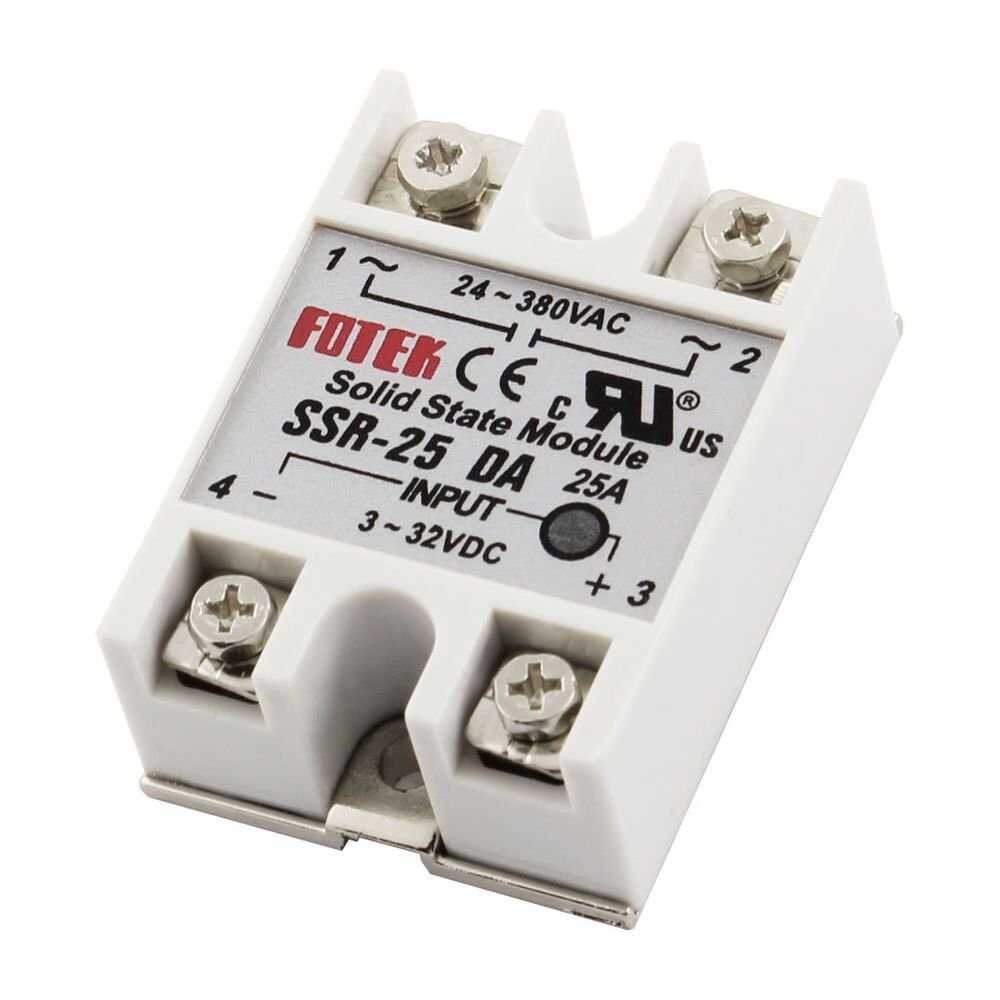

SSR-25DA Solid State Relay - Solid State Relay (25A)

SSR-25DA (25A) Solid State Relay - Solid State Relay works like conventional relays or contactors where they are used. Since they are made of semiconductor circuit, they have a longer life and durability than other products with mechanical and contact outputs. This product, which is triggered by a Solid State Relay supply between 3 and 32 volts, also has the ability to switch AC 24-380V electricity. It can also work in harmony with programming cards such as Arduino and Raspberry Pi.


SSR-25DA (25A) Solid State Relay - Solid State Relay Technical Specifications:



  • Model: SSR-25 DA
  • Load Voltage: 24-380VAC
  • Load Current: 25A
  • Working Indicator: LED
  • Control Mode: DC-AC
  • Control Voltage: 3-32VDC
  • Shutdown Voltage: <3.5 VDC
  • Trigger Current: Max. 12.0 mA
  • Control Method: Zero cross switching
  • Leakage Current: Max. 5 mA
  • Response Time: Max. 8.3ms (60Hz)
  • Input Voltage Immunity: 2 KV (EN61000-4-4)
  • Insulation Strength: 4 KVrms (EN60950/VDE0805)
  • Insulation Power: 100MΩ / 500VDC (EN60950/VDE0805)
  • Coating Material: ABS (UL:94V0)
  • Ambient Conditions: -40°C ~ +80°C;35~85%RH
