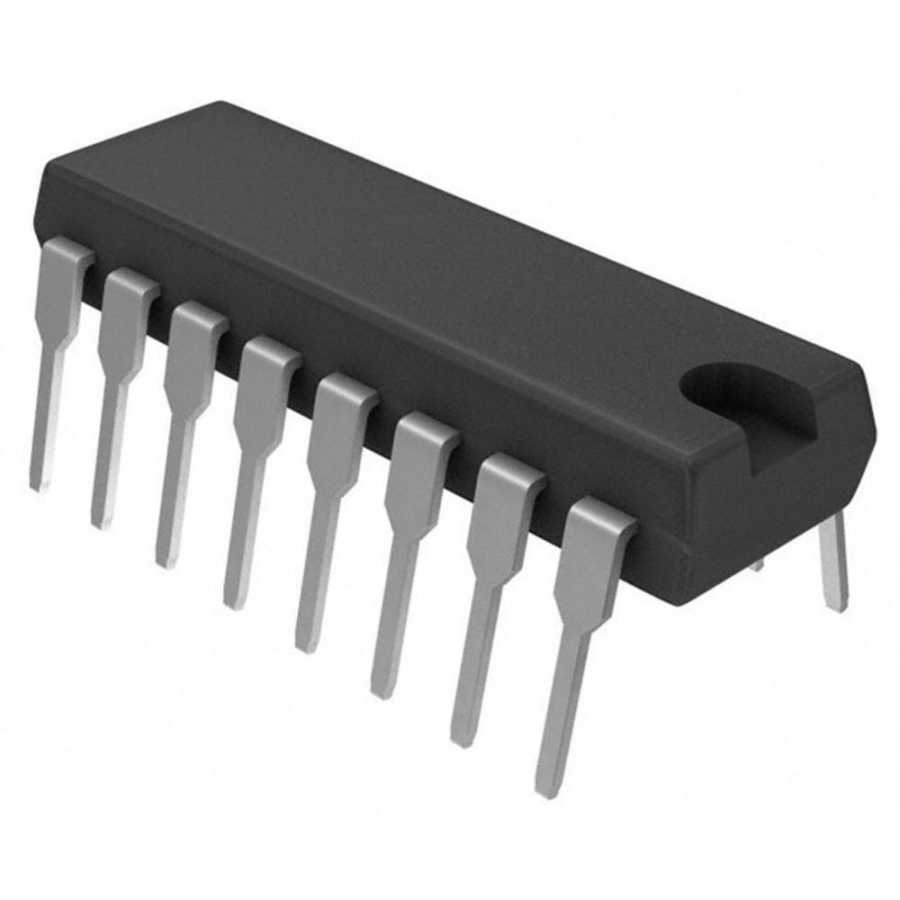

Lingxingic SN74LS76N (LX) JK Flip-Flop IC

Lingxingic SN74LS76N (LX) JK Flip-Flop IC

Lingxingic SN74LS76N (LX) is an integrated circuit containing dual J-K flip-flops, built using TTL technology. With its positive edge-triggered structure, this IC can be used in digital circuits as a counter, memory element, or control circuit. Thanks to its high speed, low power consumption, and stable operation, it is commonly preferred in educational, industrial, and hobby electronics projects.

Lingxingic SN74LS76N (LX) Technical Specifications:

• TTL-based dual J-K flip-flop IC

• Positive edge-triggered operation

• Asynchronous set and reset inputs

• Wide operating voltage range: 4.75V - 5.25V

• High switching speed

• Low power consumption

• Package type: DIP-16

• Operating temperature range: 0°C ~ 70°C

Useful Documents:

• SN74LS76N (LX) Datasheet
