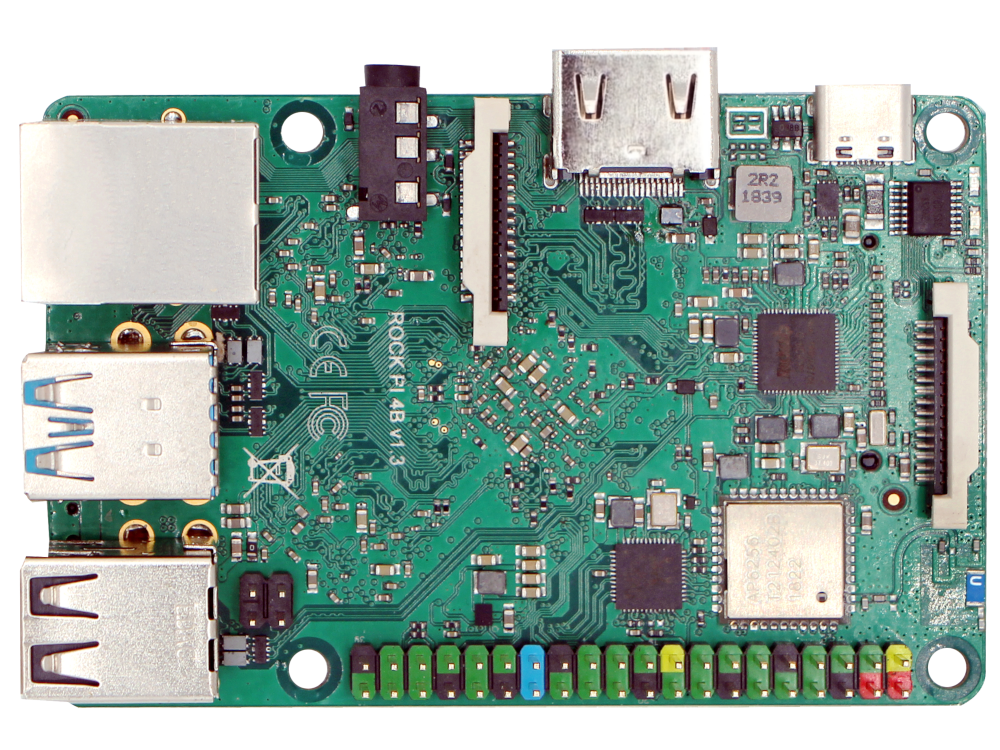

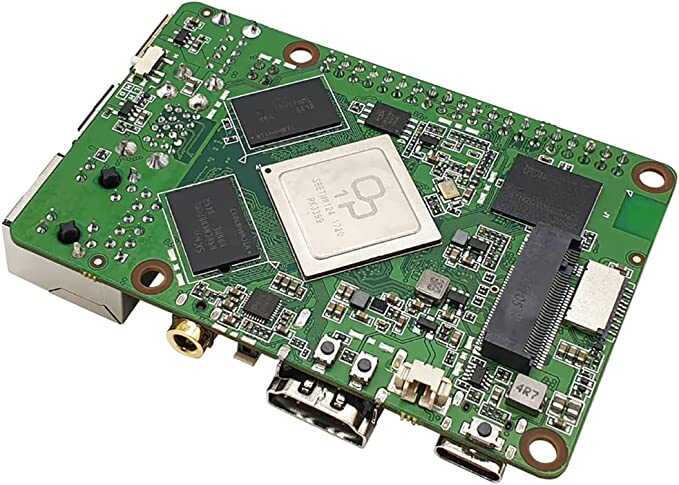

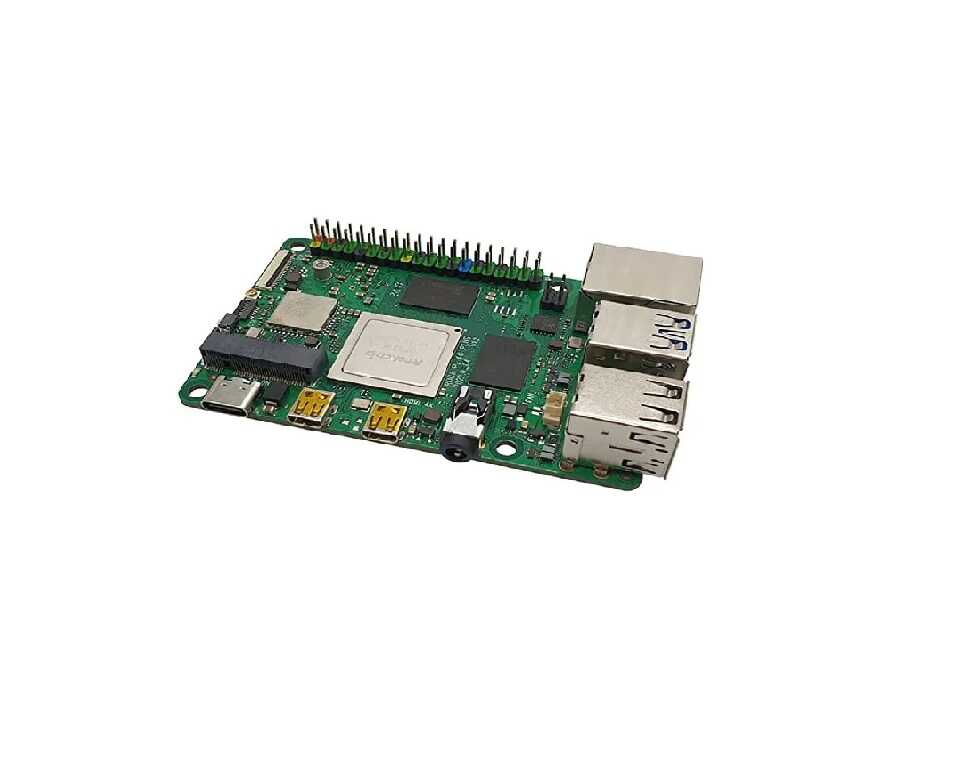

Rock Pi 4C+ Development Board 4GB - Wi-Fi Bluetooth Supported

Rock Pi 4C+ Development Board 4GB - Wi-Fi Bluetooth Supported

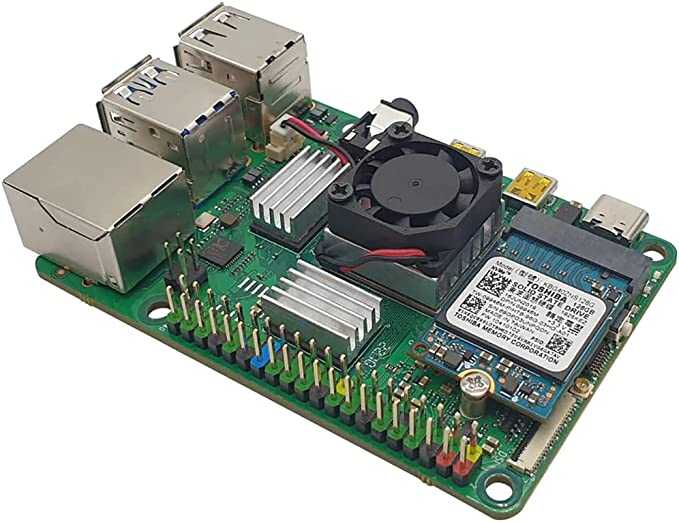

NOTE: This product only includes the ROCK Pi 4C development board. Fan and SSD are NOT INCLUDED in the package. The fan and SSD shown in the product images are for illustration purposes only.

ROCK 4 is a Single Board Computer (SBC) in an ultra small form factor that offers class-leading performance while benefiting from outstanding mechanical compatibility. ROCK 4 provides makers, IoT enthusiasts, hobbyists, PC DIY fans and more with a reliable and highly capable platform to build and bring their ideas to life.

Inside, ROCK 4 features a modern and powerful RK3399, a hexa-core ARM-based processor, and delivers significantly improved performance compared to other popular SBC boards. All models include LPDDR4 3200Mb/s RAM and optional high-performance eMMC modules, which boost all applications.

ROCK 4 offers maker-friendly expansion options including a 40-pin GPIO interface that allows you to connect and interface with a range of inputs such as buttons, switches, sensors, LEDs and much more.

ROCK 4 also features a Gbit LAN for networking, which, with a dedicated bus and controller, operates under heavy network loads without latency. The built-in 802.11ac Wi-Fi provides 2.4G and 5G WLAN connectivity. With Bluetooth 5.0, ROCK 4 benefits from improved Bluetooth speed and longer range.

ROCK 4 also comes with one USB 3.0 host port and one USB 3.0 OTG port, each running at 5Gbps/s. The USB 3.0 OTG can operate as a USB device, such as for Android ADB or USB peripherals. A hardware switch is provided for OTG mode selection.

ROCK 4 supports mainstream AI stacks with GPU acceleration. Furthermore, a dedicated hardware NPU accelerator is on the roadmap for ROCK 4, which will boost complex Machine Learning algorithms while reducing power consumption.

The industry-standard MIPI CSI connector makes it easy to connect external cameras to ROCK 4, and ROCK 4 also supports industry-standard MIPI DSI for LCD and touch screens. With hardware-accelerated algorithms, it is great for Image Processing applications, Robotics and much more.

Rock Pi 4C+ Development Board 4GB - Wi-Fi Bluetooth Supported Specifications:

• Processor System:
  • Dual Cortex-A72 at 1.5 GHz (up to 2 GHz)
  • Quad Cortex-A53 with NEON coprocessor at 1.4 GHz (up to 1.6 GHz)
  • Mali-T864 GPU
• Memory & Storage:
  • 4GB LPDDR4
  • MicroSD card slot (supports up to 128GB)
  • M.2 2230 NVMe SSD support up to 2TB (PCIe 2.0 x4)
  • Optional eMMC socket (16GB, 32GB, 64GB, 128GB)
  • Pluggable 32Mb SPI flash – supports NVMe boot or, for example, network boot via SPI*
• Display/Audio:
  • Micro HDMI 2.0 Type D (up to 4K@60)
  • Micro HDMI 2.0 Type D (up to 2K@60)
  • MIPI DSI 4-lane display (with FPC connector)
  • Audio 3.5 mm jack with microphone
  • HD codec, supports audio up to 24-bit/96 kHz
• Camera Interface:
  • MIPI CSI 2-lane for 8MP camera (via FPC connector)
• Networking:
  • Gigabit LAN port (with PoE support via PoE HAT add-on)
  • Wireless 802.11 b/g/n/ac
  • Bluetooth 5.0
• USB Connectivity:
  • 2 x USB 2.0 host ports
  • 1 x USB 3.0 host
  • 1 x USB 3.0 OTG port
• I/O Expansion:
  • 1 x UART
  • 2 x SPI bus
  • 2 x I2C bus
  • 1 x PCM/I2S
  • 1 x SPDIF
  • 1 x PWM
  • 1 x ADC
  • 6 x GPIO
  • 2 x 5V DC power input pins
  • 2 x 3.3V power pins
• Other Features:
  • Power button
  • 2-pin PWM fan header
• Power:
  • 5V/3A USB-C
• Dimensions:
  • 85 x 54 mm

Rock Pi Models:

ROCK 4A/4B



ROCK 4A/4B PLUS

ROCK 4 SE
