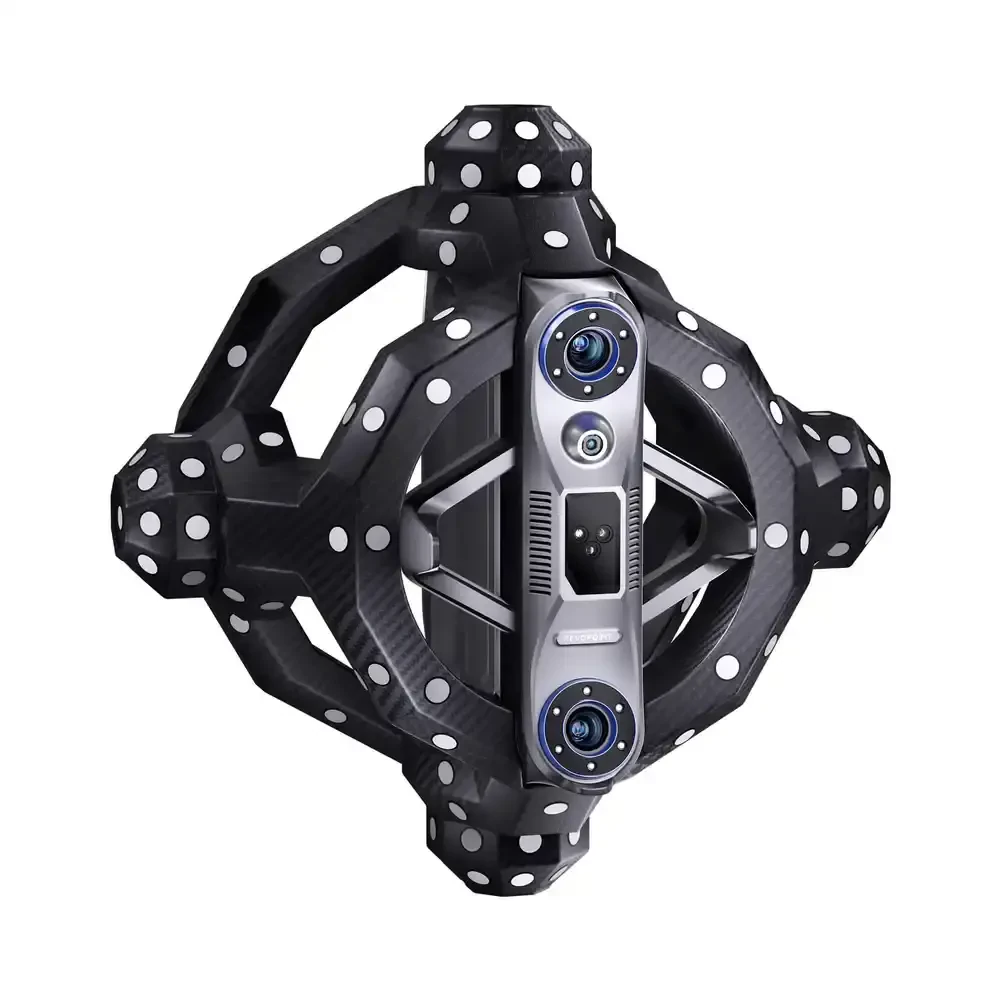

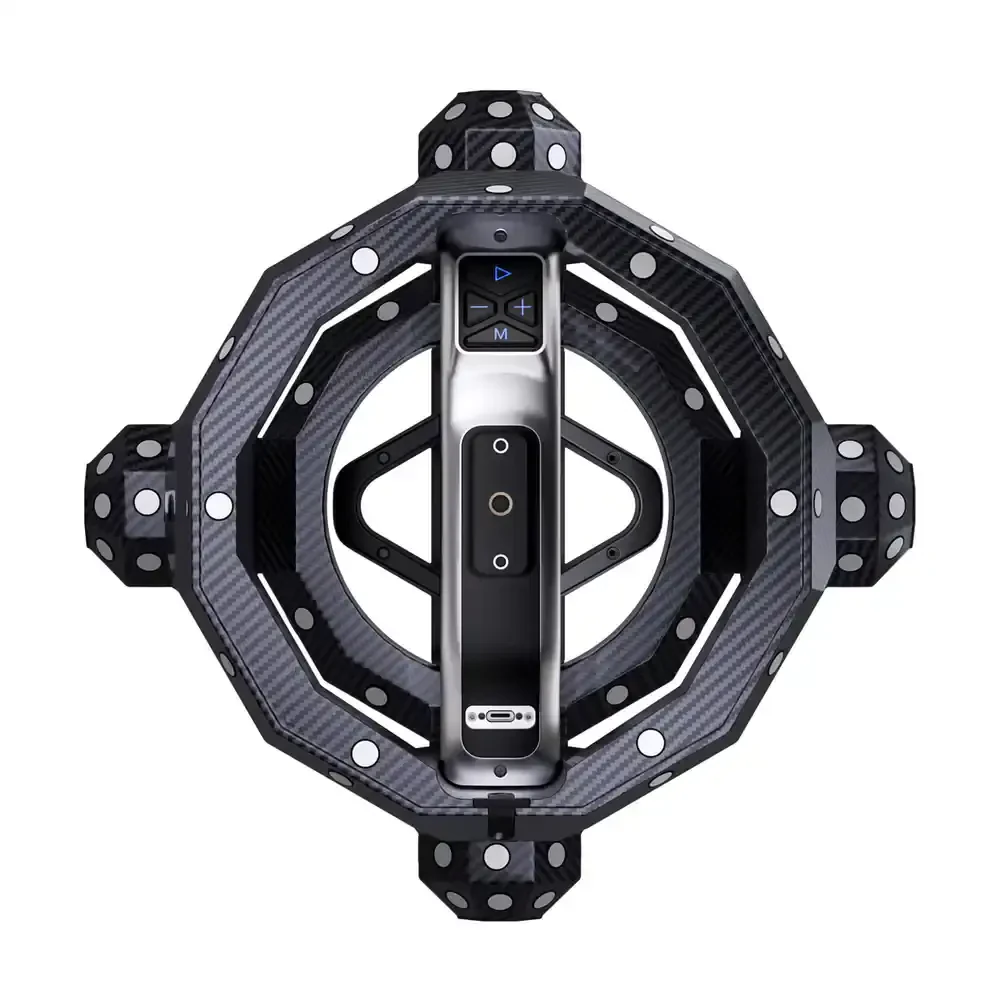

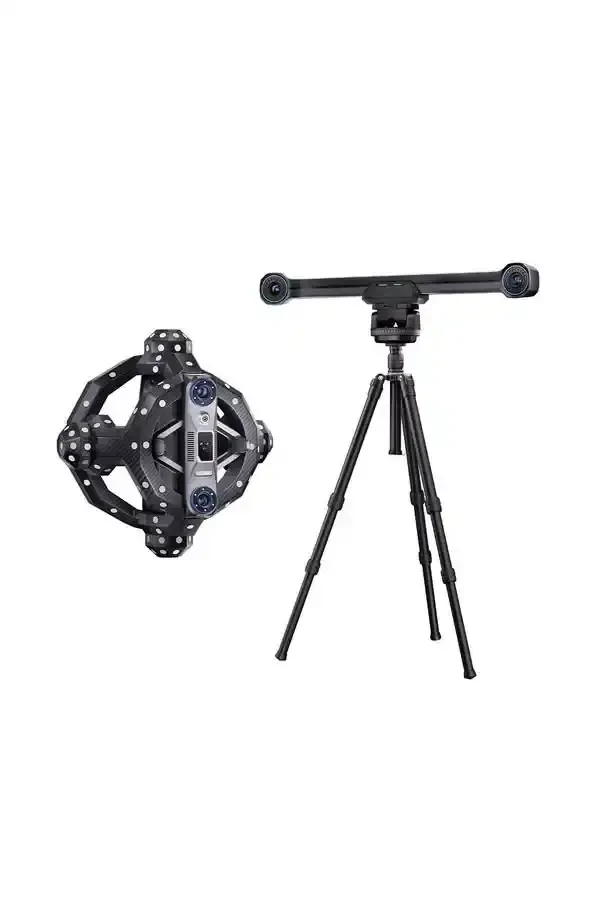

Revopoint Trackit 3D Scanner

Revopoint Trackit 3D Scanner

The Revopoint Trackit 3D Scanner is a powerful industrial 3D scanning solution that operates with optical tracking technology without the need for markers. Thanks to its compact design and easy setup, it saves users time while providing fast and accurate scans of everything from small details to large-scale objects. With its automatic calibration system, durable carbon fiber body, and user-friendly software, Trackit is ideal for professional use, from reverse engineering and product development to industrial design and cultural heritage digitization. It delivers stable results even on shiny, dark, or reflective surfaces, making the scanning process effortless.

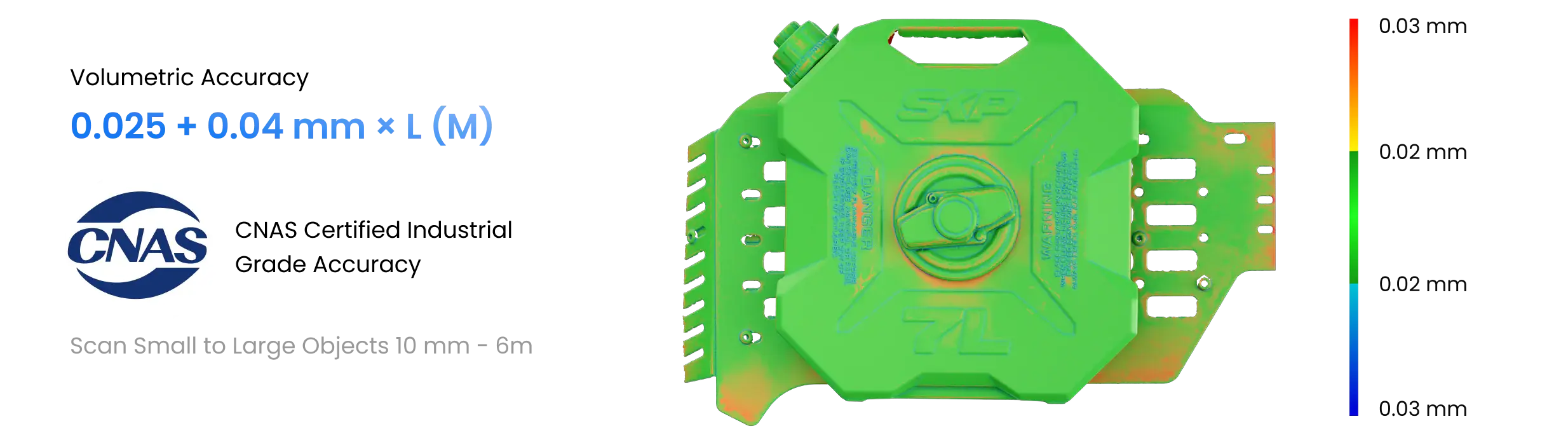

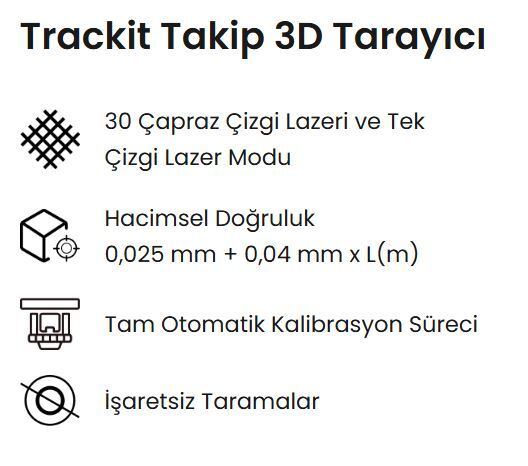

High Accuracy from Small to Large Scans:

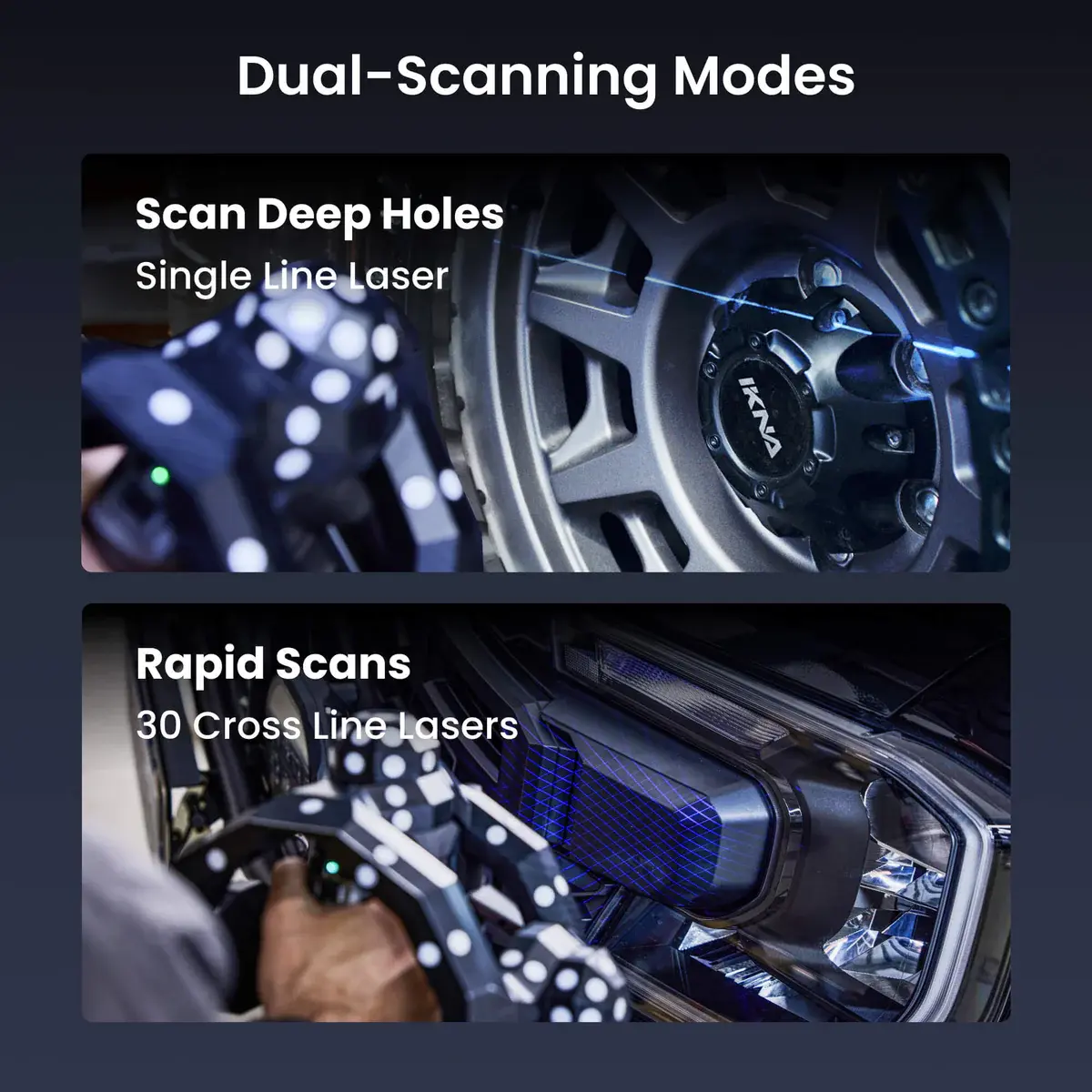

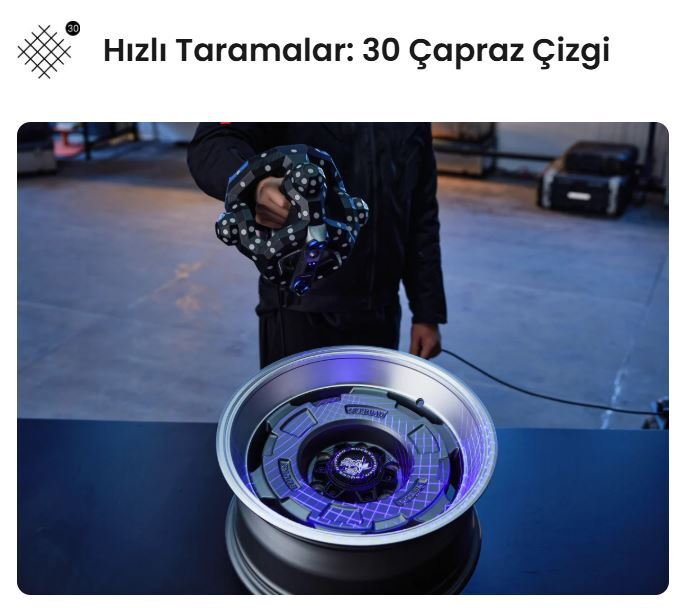

Dual Blue Laser Capture Mode:

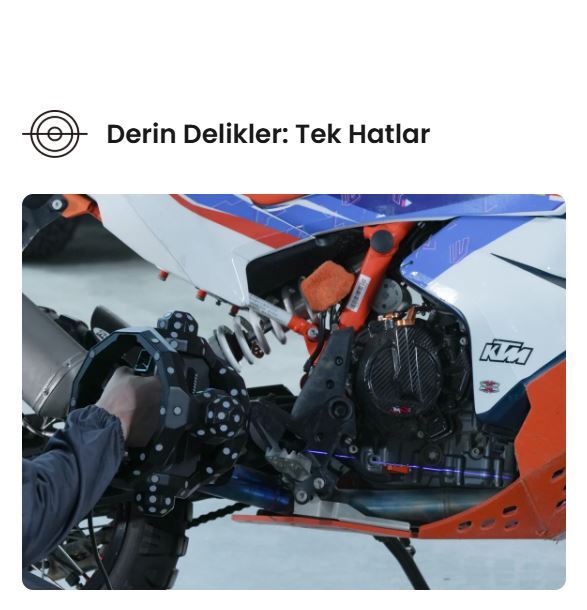

Efficiently scan surface areas without the use of scanning spray, including dark or shiny ones.	Ensure that fine details such as gear teeth, deep holes, slots, and recessed areas are fully captured.

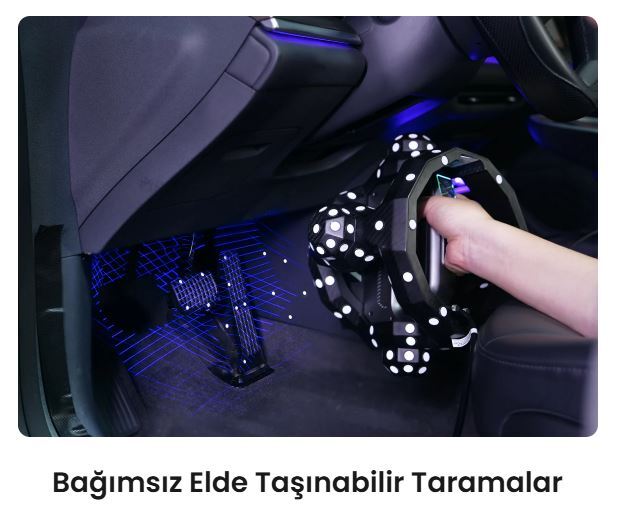

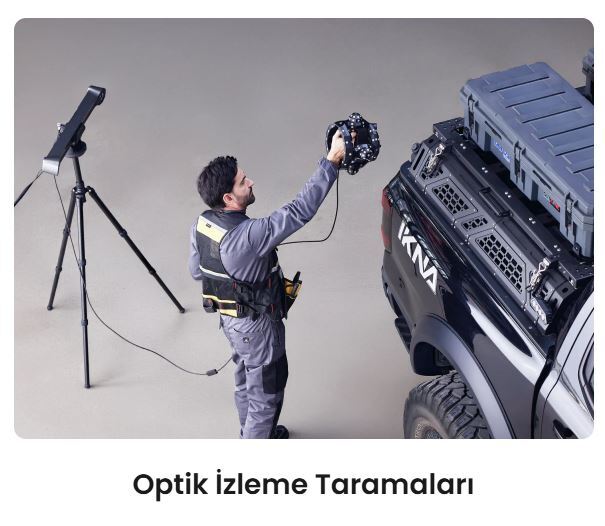

Optical Tracking or Independent Handheld Scanning:

Switch between optical tracking and independent handheld 3D scanning to adapt to various scenarios. Using Trackit’s standalone features, you can easily capture hidden or internal areas that the base station cannot see.

Automatic Calibration Saves Time and Effort:

Skip complex and lengthy calibration processes and achieve perfect multi-position calibration free from human error. Trackit’s intelligent dual-axis gimbal with automatic calibration handles all the hard work with precision, ensuring a reliable, accurate, and effortless calibration process every time.

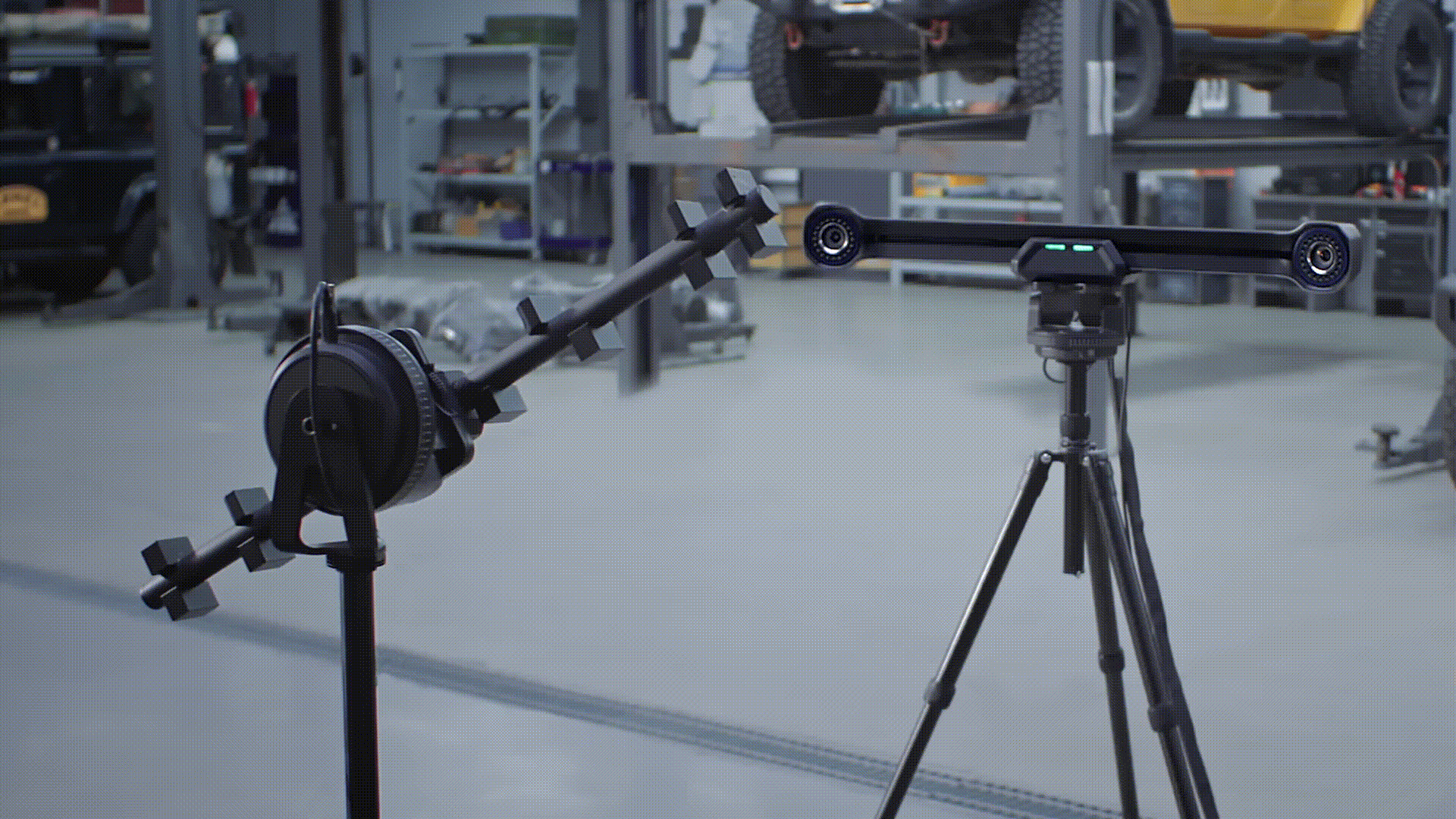

Easily Scan Large Workpieces:

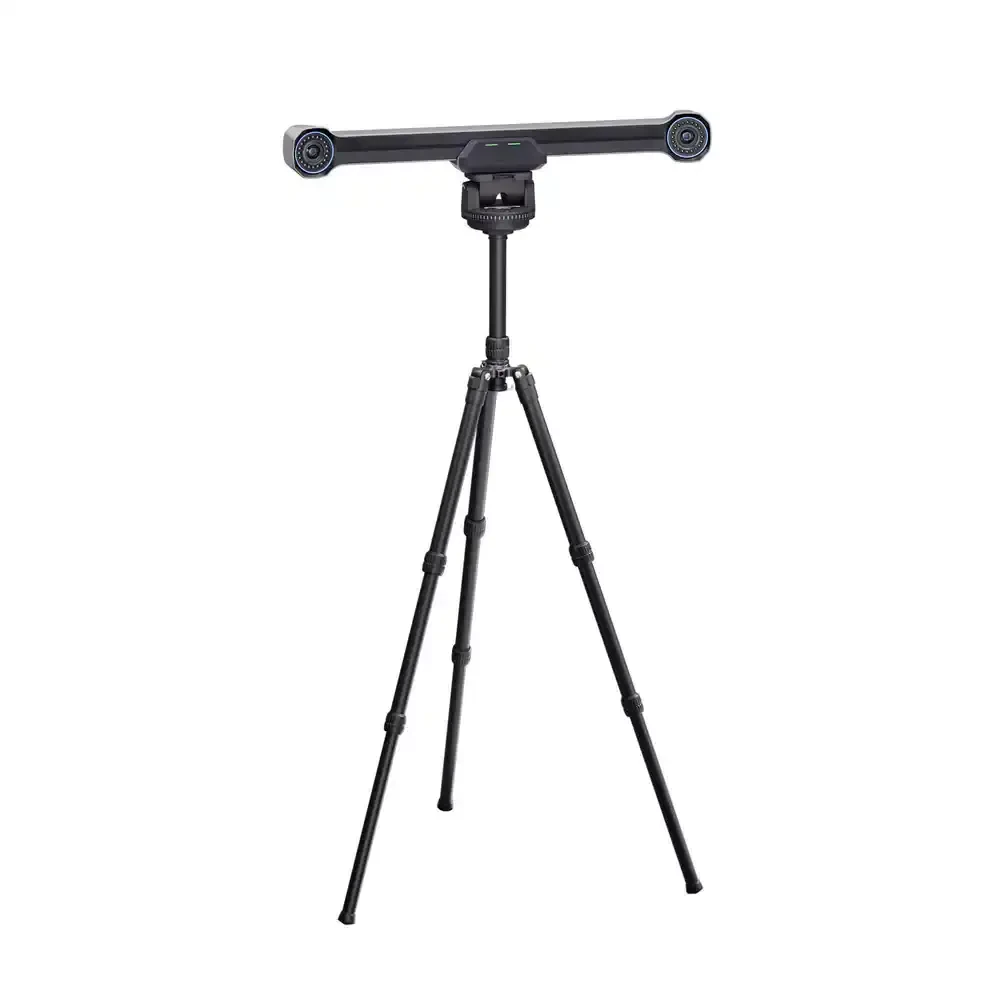

Effortlessly capture large workpieces by moving Trackit’s base station around them, recording surfaces at up to 1.5 million measurements per second. The anchoring block system ensures seamless frame alignment at each repositioning, enabling efficient creation of professional 3D models. The highly adjustable tripod makes it easy to position Trackit for multiple capture scenarios.

Robust Carbon Fiber Frame
With Trackit’s durable one-piece carbon fiber frame, you can achieve consistent scan data every time while eliminating accuracy errors caused by frame deformation and shifting markers. Designed for challenging environments, its strong yet lightweight build ensures comfort during long scanning sessions.

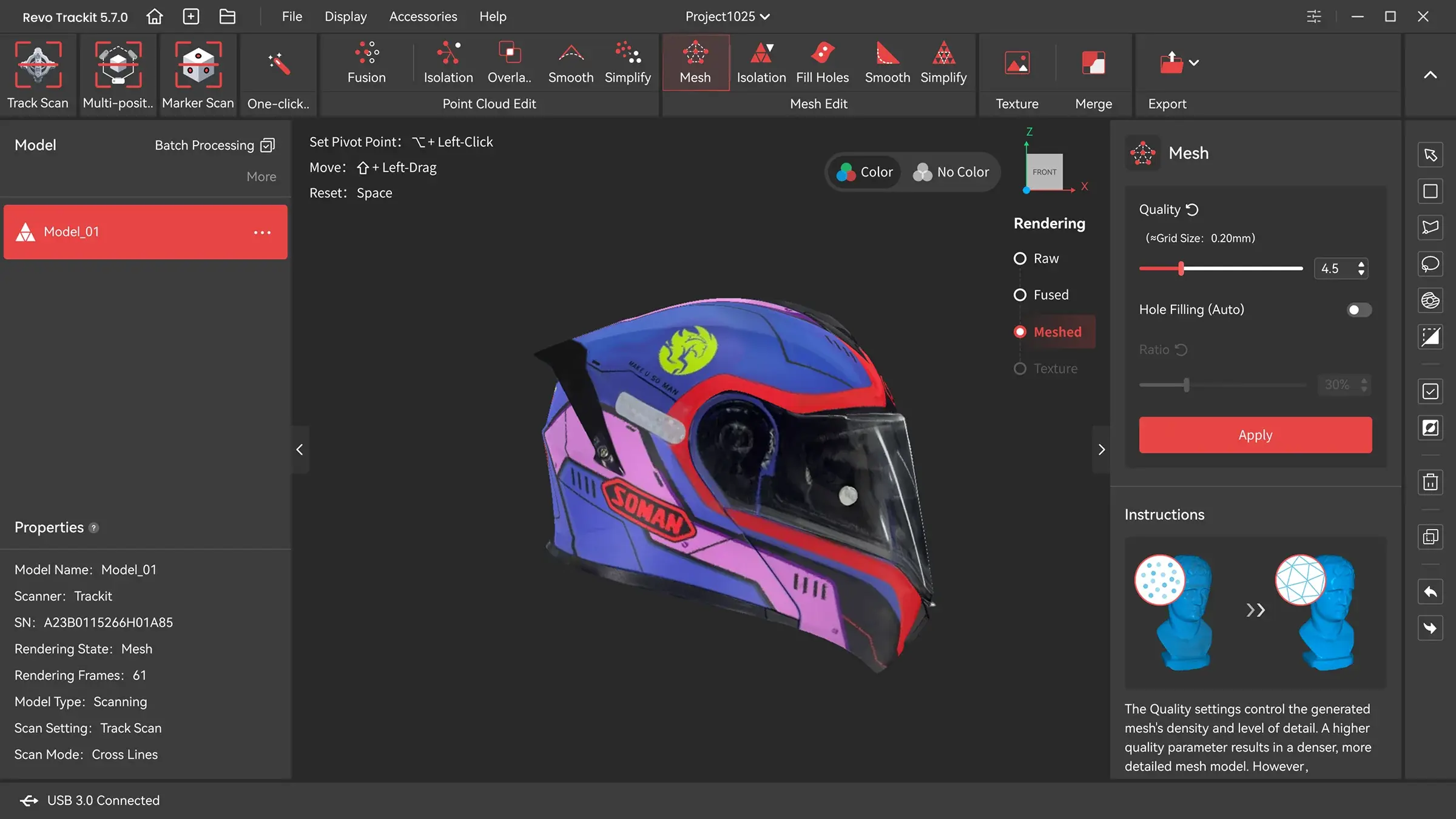

Realistic Texture Mapping

With Trackit’s high-resolution RGB camera, capture the surface texture of objects to create vivid 3D models or use texture data in Revo Measure for accurate measurements and professional reports.

Trackit Robot 3D Scanning System

With the six-axis collaborative robot equipped with the Trackit Optical Tracking 3D Scanner, achieve fully automatic point cloud capture of complex shapes up to 0.5 m in diameter with volumetric accuracy of up to 0.05 mm.

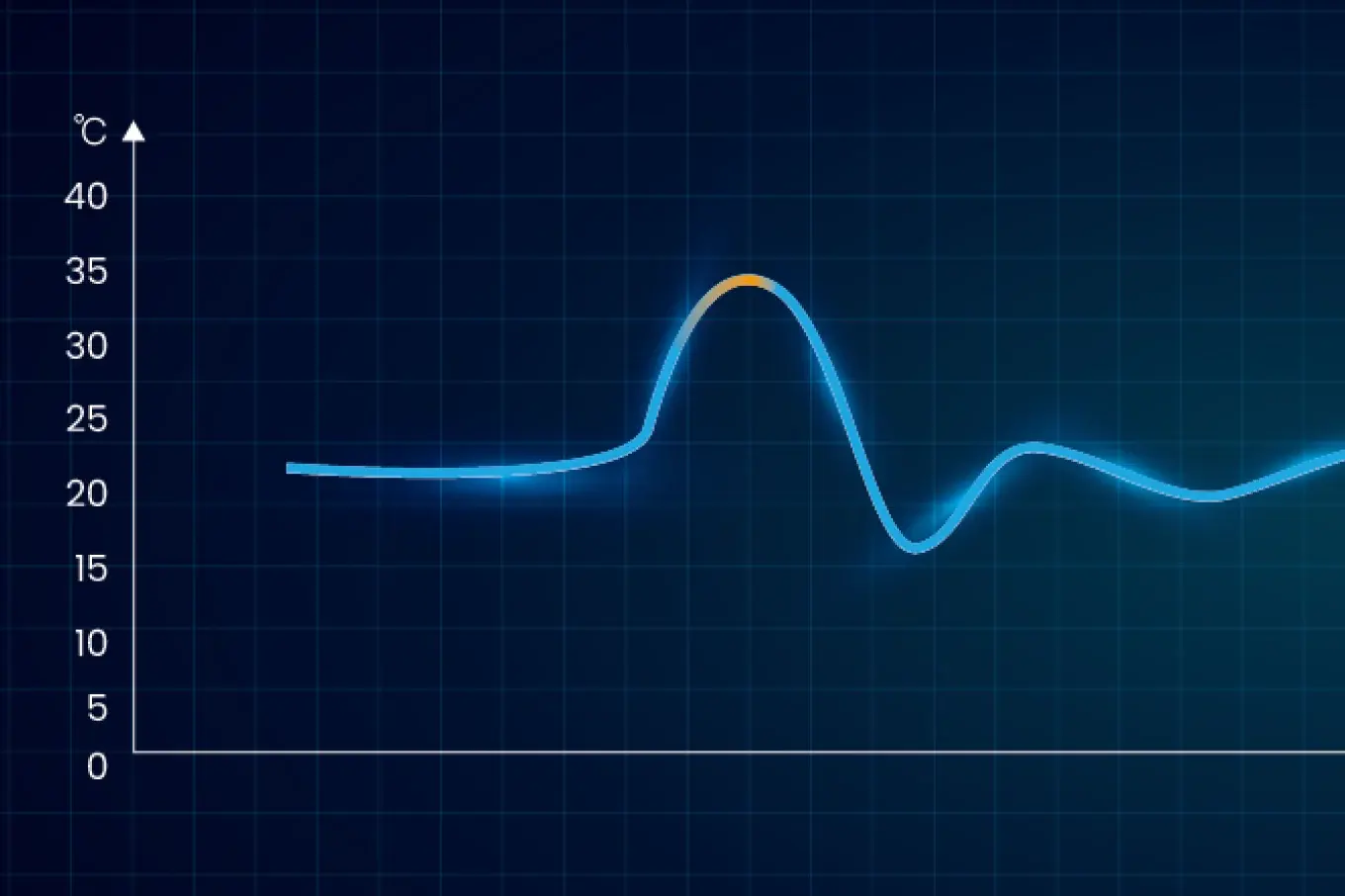

Smart Temperature Monitoring
Trackit’s high-precision temperature sensors monitor fluctuations and display the current temperatures of both the Tracker and Scanner in real time. This ensures optimal operation, prevents temperature-related accuracy drift, and maintains high 3D scanning precision.

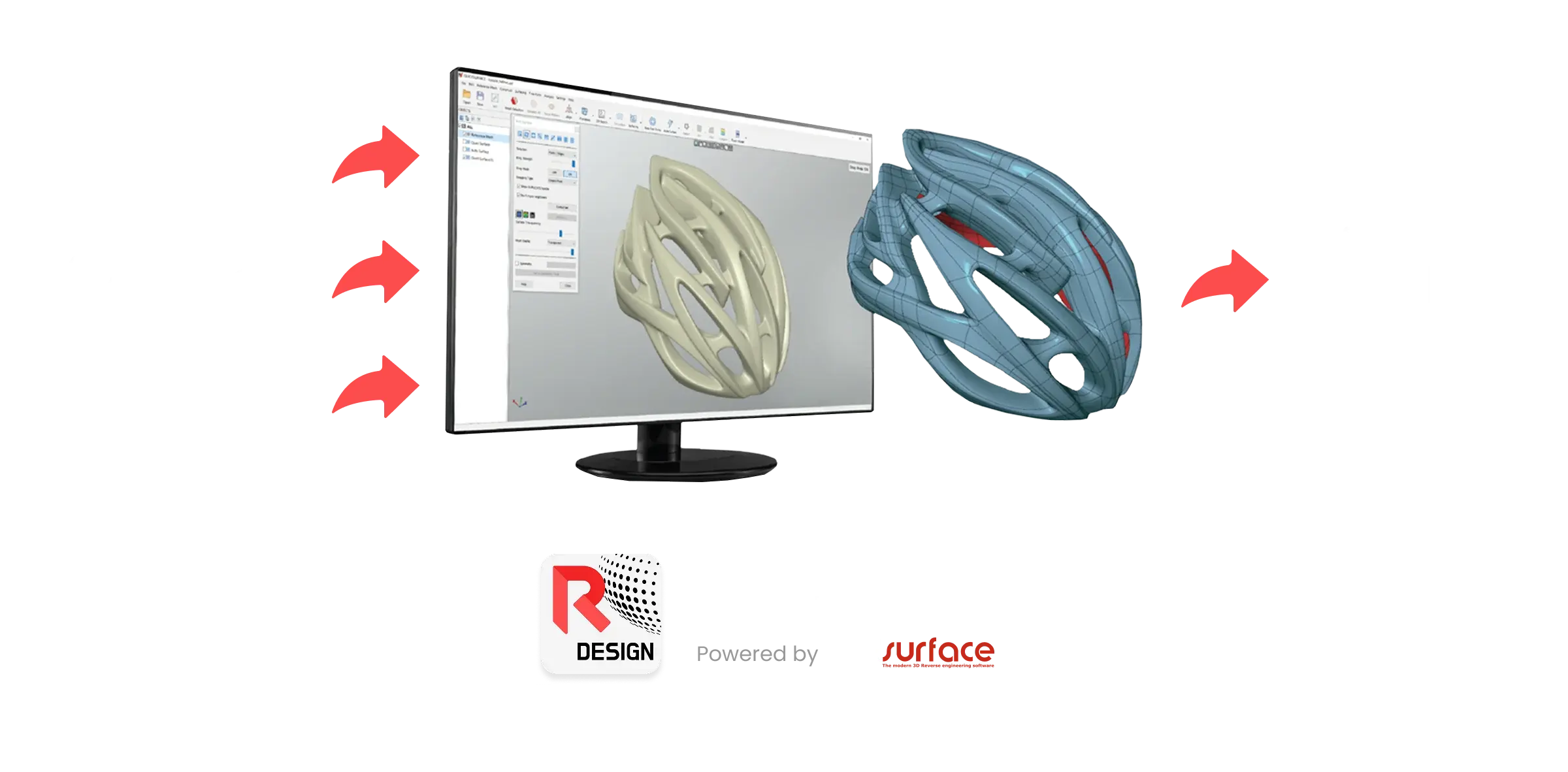

Revo Design Software

Revo Design (with the same functions as QUICKSURFACE Lite) bridges the gap between 3D scanning and engineering design by simplifying the conversion of 3D scan data into CAD models. With powerful tools for mesh editing, freeform and parametric modeling, and scan-to-CAD workflows, Revo Design is ideal for reverse engineering, product development, and industrial design.

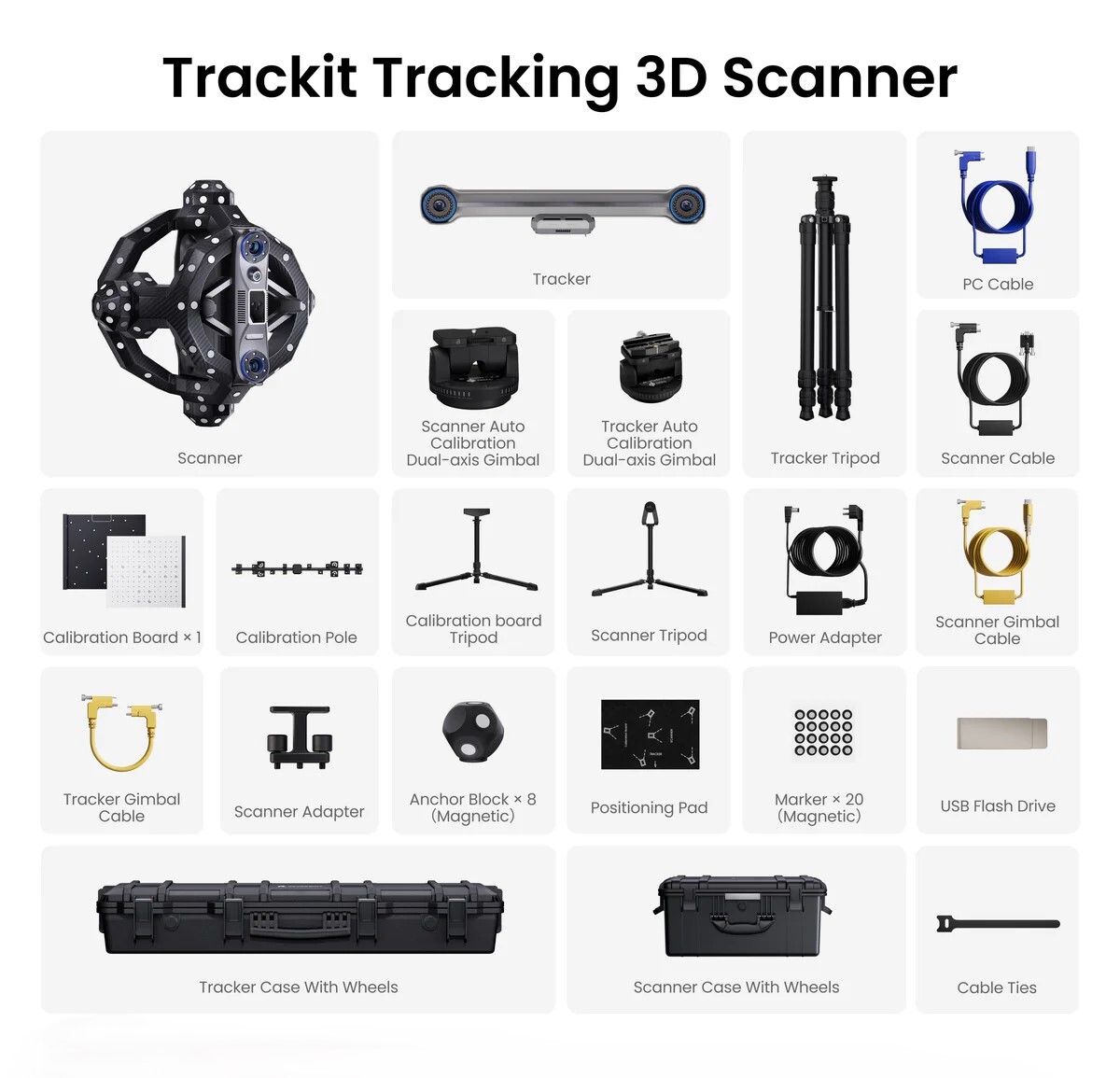

Revopoint Trackit 3D Scanner Package Contents:

Warning:

• The specified accuracy is achieved under laboratory conditions. Actual results may vary depending on the working environment.
• This product uses a Class 1 laser projector. Avoid looking directly at it from close range! To prevent retinal damage, do not look directly at the laser beam through optical devices that can magnify it (e.g., telescopes and camera lenses). Avoid placing reflective surfaces such as mirrors or glass in the path of the laser beam to prevent reflection.
• To ensure accuracy, it is recommended to use the product in an ambient temperature range of 20℃ to 25℃ (68℉ to 77℉).
• This product contains flashing lights which may not be suitable for people with photosensitive epilepsy.
