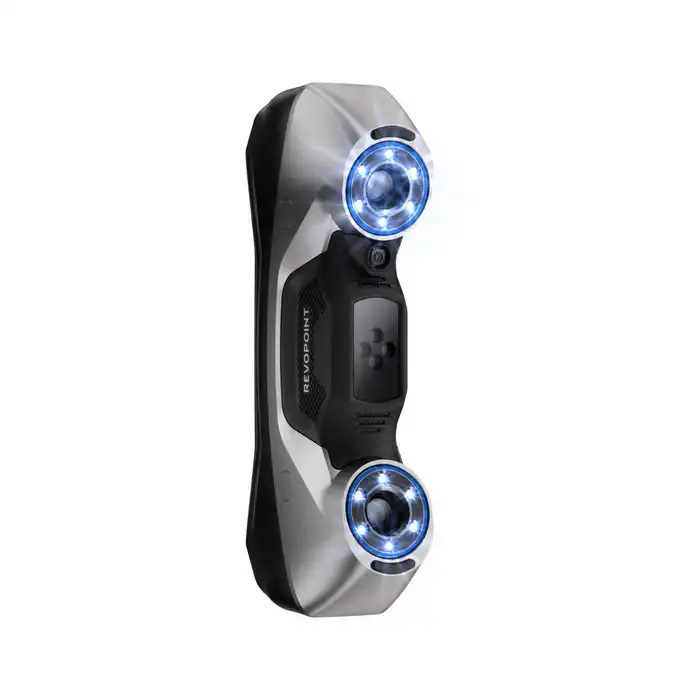

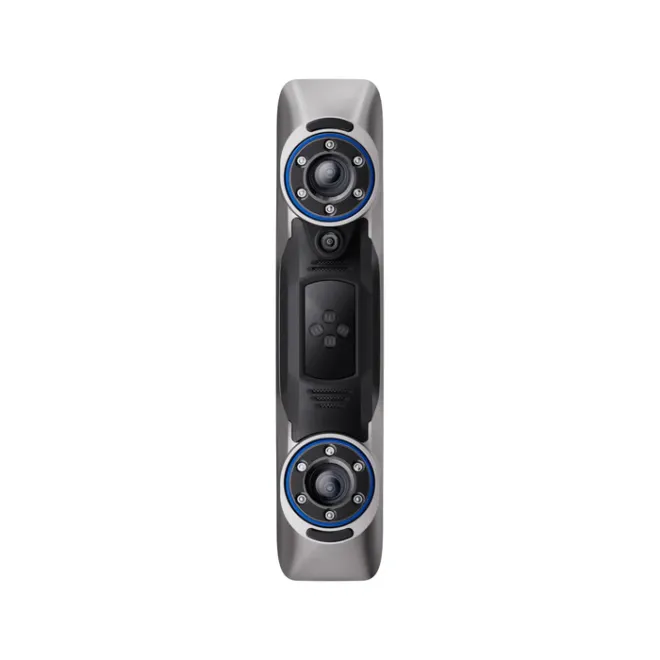

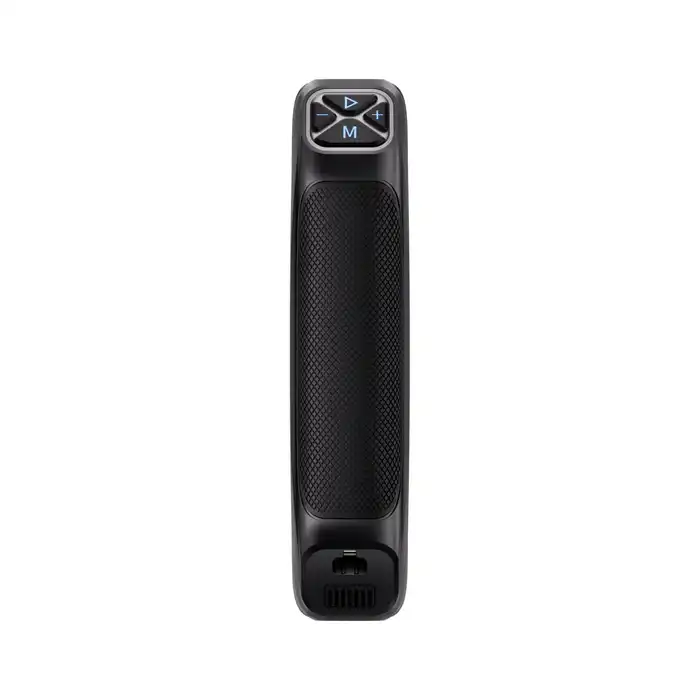

Notify me when its in stockRevopoint MetroY 3D Scanner
Revopoint MetroY enables detailed and repeatable 3D scanning of small to medium–sized parts with its multi-line blue laser technology, single-frame precision up to 0.01 mm, and single-frame accuracy up to 0.02 mm. Thanks to Wi-Fi 6 wireless transfer, color scanning with an RGB 2 MP camera, and the Revo Metro software ecosystem, it integrates directly into many professional workflows from reverse engineering to quality control. Support for marker and global marker tracking makes different workflows reliable, such as handheld scanning, 360° scanning with a turntable, and high-detail capture in a fixed setup. In scenarios like reverse engineering, quality inspection, jewelry/dentistry, cultural heritage, and product design, it focuses on productivity with common formats such as PLY/OBJ/STL and CAD-friendly output options.
Revopoint MetroY 3D Scanner Technical Specifications:
| Technology | Multi-line blue laser (30 cross + 15 parallel + 1 single line) |
| Scanning Modes | Cross line, parallel line, single line |
| Single-Frame Precision | Up to 0.01 mm |
| Single-Frame Accuracy | Up to 0.02 mm |
| Volumetric Accuracy | 0.02 mm + 0.04 mm × L (m) |
| Post-Fusion Point Distance | Down to 0.05 mm |
| Working Distance | 200 – 400 mm |
| Single-Frame Capture Area (200 mm) | 123 × 130 mm |
| Single-Frame Capture Area (400 mm) | 290 × 260 mm |
| Field of View (H × V) | 43° × 33° |
| Min / Max Scan Volume | 10 × 10 × 10 mm / 1 × 1 × 1 m |
| Max Scan Speed (pts/s) | 1,500,000 (multi-line laser) |
| RGB Camera / Color Scan | 2 MP / Yes |
| Tracking | Marker, Global Marker |
| Outdoor Scanning | No |
| Fill Lights | 12 blue LEDs |
| Onboard Processor / Compute | Quad-core ARM 2.0 GHz / Depth computing |
| Connectivity | USB Type-C to Type-C, Wi-Fi 6 |
| Supported OS | Windows 10/11 (64-bit), macOS 11.0 (coming soon) |
| Supported Output Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Power Requirement / Connector | DC 12 V, 3 A / USB-C |
| Dimensions / Weight | 211 × 94 × 47 mm / ~447 g |
| Special Surfaces | Matting spray recommended for transparent/mirror surfaces |

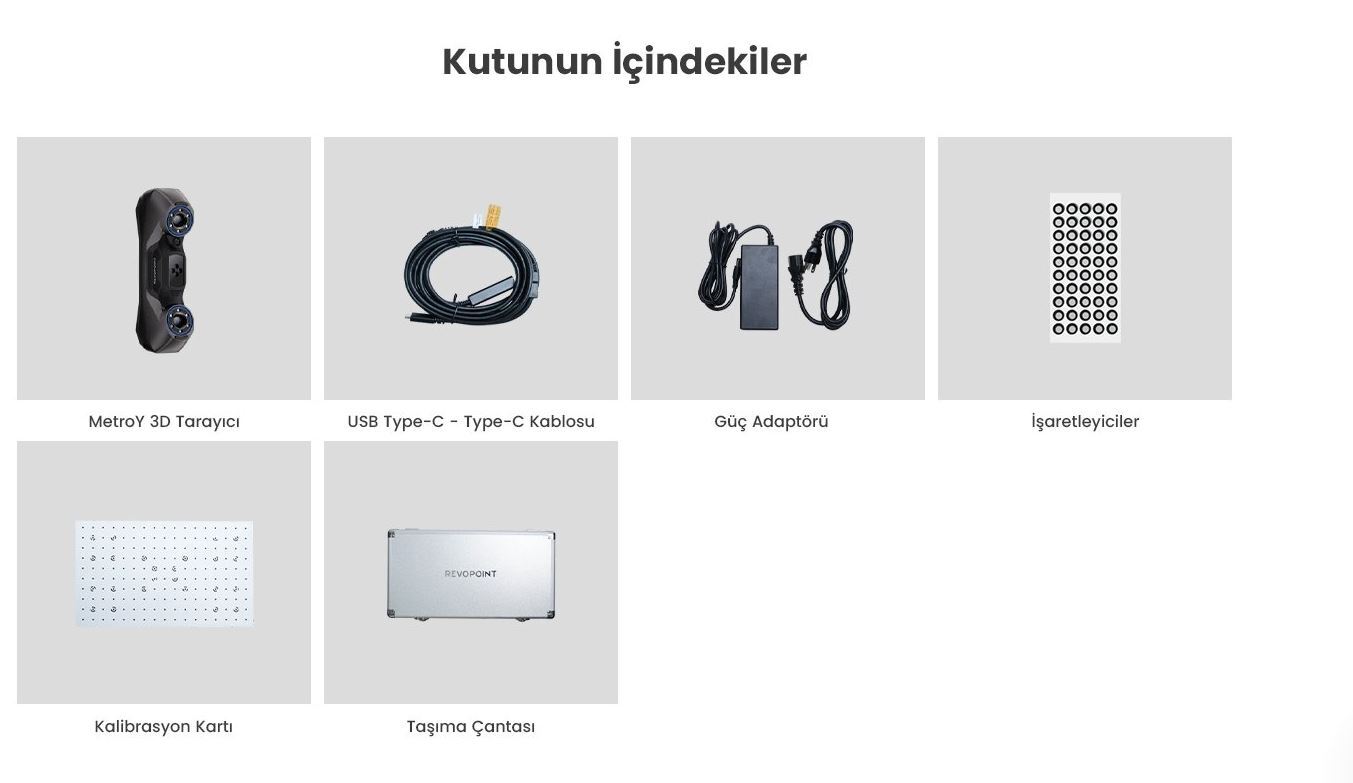

| In the Box (MetroY) | Scanner, USB-C cable, power adapter, marker set, calibration card, carrying case |
