RedBear DUO - Wi-Fi + BLE IoT Board

Product Code
:
16947
Brand / Origin
:
Red Bear
:
Comments (0)
Quantity
:
2
Without Vat
:
561.61 TL
Discount Price
:
449.29 TL
%20
Quantity:

-

+
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

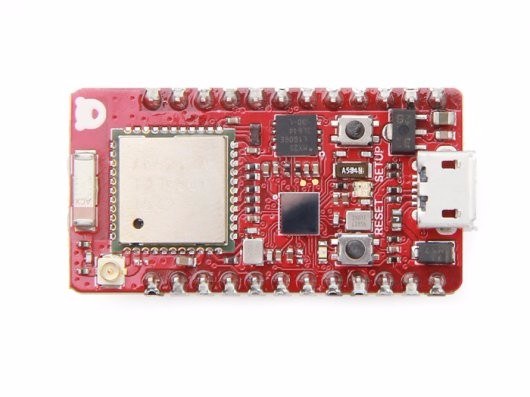

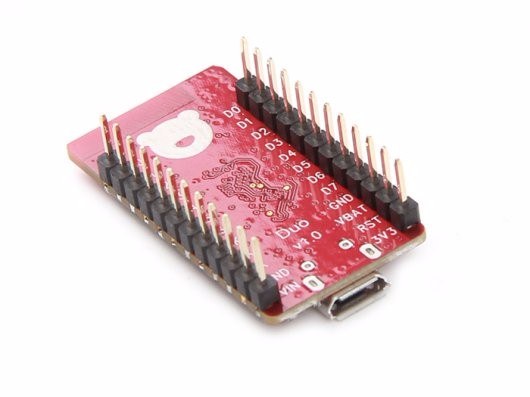

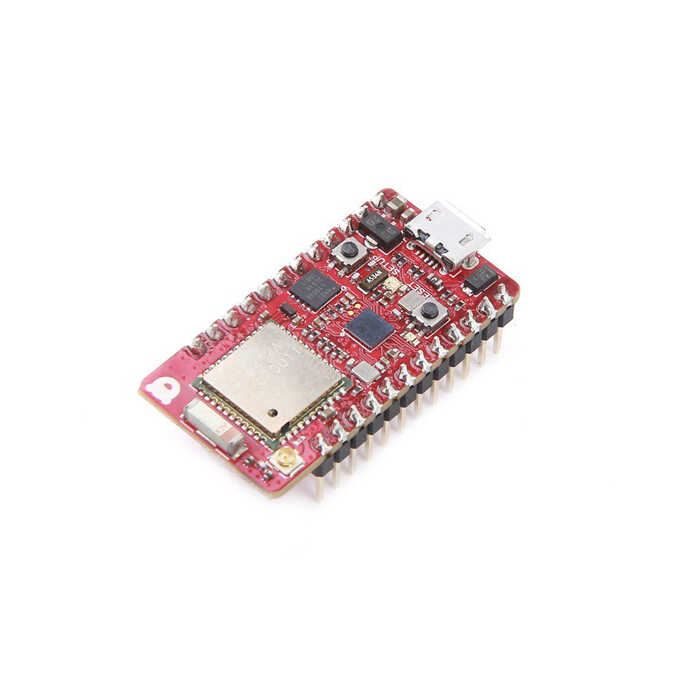

  • Duo is a thumb-size development board made to simplify the building process of Internet of Things (IoT) products. Everything you need is built into the Duo. It contains WiFi, BLE and Cloud, all in a compact form factor that makes it ideal for your first prototype, a finished product, and everything in between. With the help of RB Link, a RedBear expansion board, you can attach add-on modules without any soldering at all. You can get your prototype up and running in no time.





    Features

    • Both Wi-Fi and BLE capabilities
    • Free Particle io Cloud Services
    • Arduino, JavaScript and Python support (WiFi & BLE only)
    • Broadcom WICED SDK (Wi-Fi & Bluetooth Dual Mode)
    • Free Android and iOS Apps
    • Integration with RBLink and work with Grove system

    Technical Specs:

    • STMicroelectronics STM32F205 ARM Cortex-M3 @120MHz, 128 KB SRAM and 1MB Flash
    • Broadcom BCM43438 Wi-Fi 802.11n (2.4GHz only) + Bluetooth 4.1 (Dual Mode) combo chip
    • On-board 16 Mbit (2 MB) SPI Flash
    • Integrated chip antenna with the option to connect external antenna
    • 18 I/O pins
    • RGB status LED
    • Small single-sided PCB for easy mounting on other PCB boards
    • Duo comes with headers soldered
    • 20.5mm x 39mm
