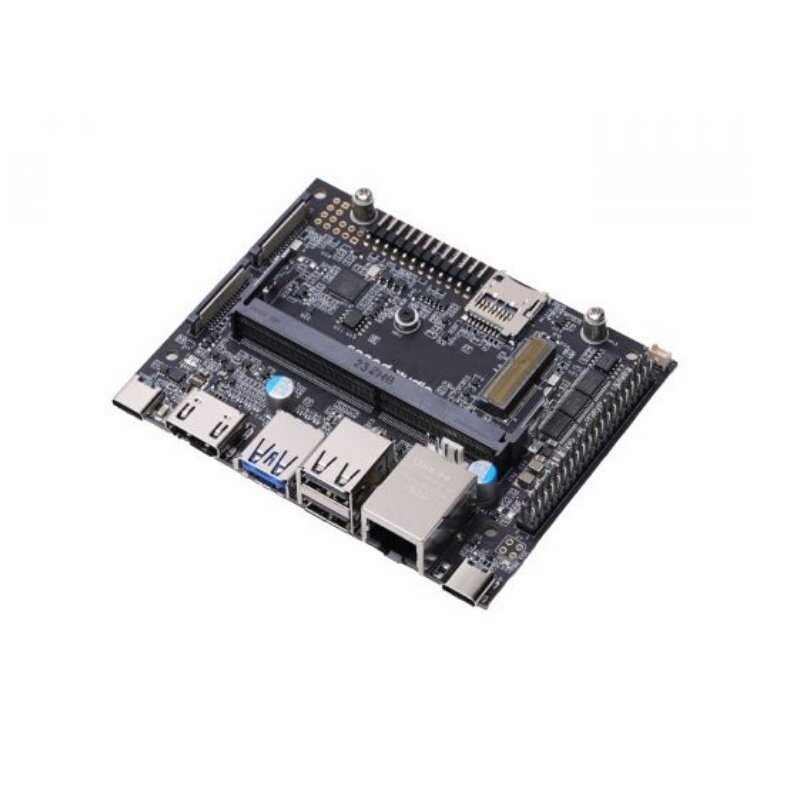

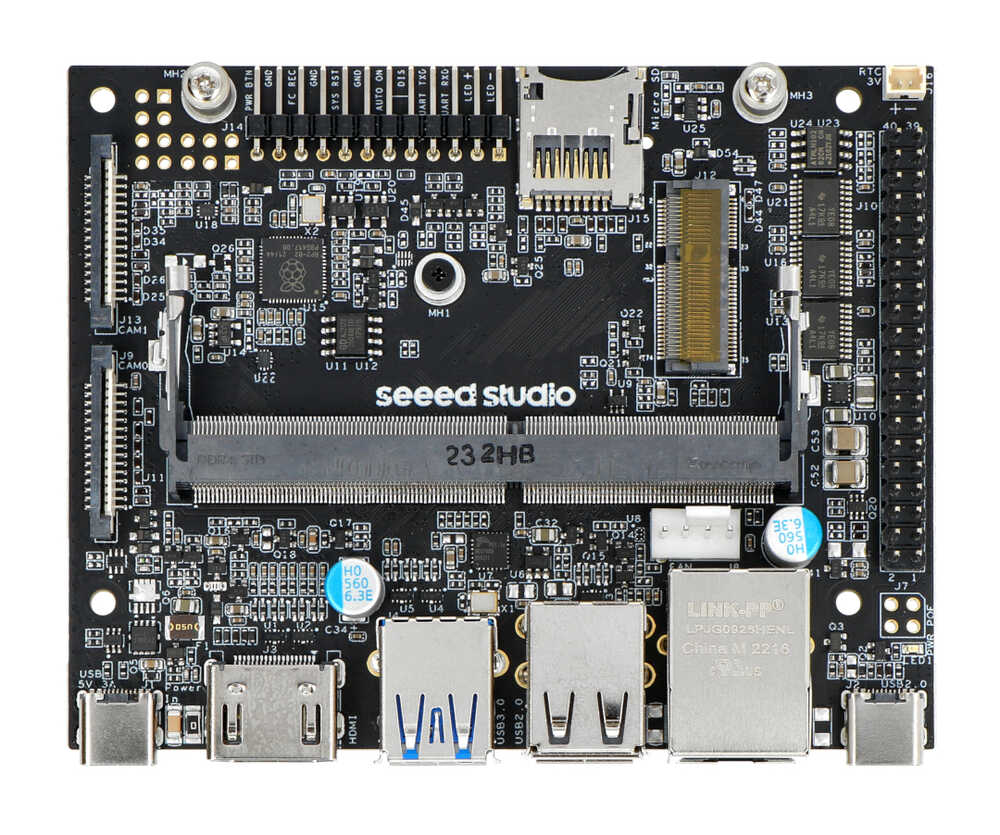

reComputer J101 -Carrier Board for Jetson Nano

reComputer J101 -Carrier Board for Jetson Nano

reComputer J101 is an interface-rich carrier board. It includes HDMI2.0, 2x USB 2.0, 1x USB 3.0, micro SD card slot, 2 xCSI, M.2 key E WIFI / BT, GPIO, I2C, I2S fan and other rich peripheral interfaces. Specifically, the ReComputer J101 has different USB Type-A/Type-C ports, a microSD card, draws power from a USB Type-C port and drops the DisplayPort connector. It also has almost the same functional design and exactly the same size as the carrier board of the NVIDIA® Jetson Nano™ B01 Developer Kit.

reComputer J101 Technical Specifications:

• Size: 100mm x 80mm
• Power supply: 3.3V
• Micro SD card: 1 x Micro SD card slotImaging ; 1 x HDMI
• M.2 Key E: 1 x M.2 Key E
• USB 2.0: Type A Stacked Connectors, Type C Connectors x2
• USB 3.0: Type A Connector
• Gigabit Ethernet: RJ45 Connector
• HDMI: HDMI Type A Connector
• M.2 Switch E Socket
• Ethernet: 1 x Gigabit Ethernet (10/100/1000M)
• CSI Camera: 2 x CSI
