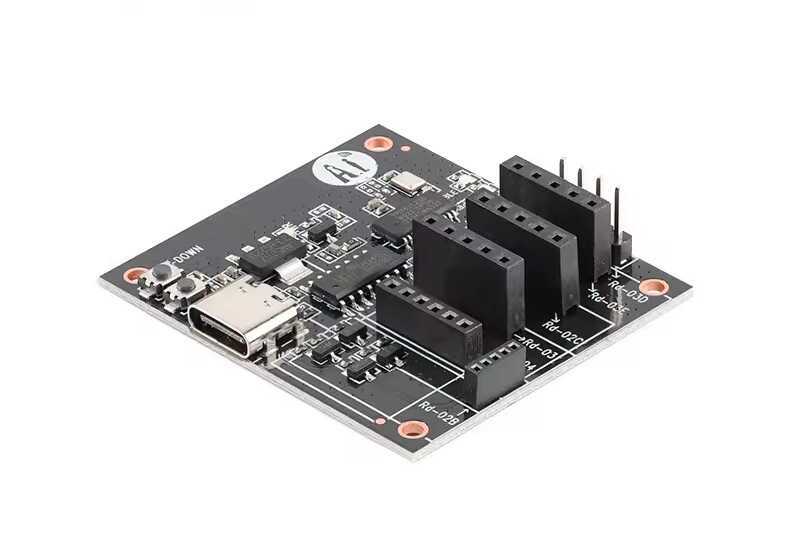

Notify me when its in stockRD-KIT - Radar Test Card
The RD-KIT is a test card used to test and verify the performance of radar systems. It offers advanced testing capabilities to help ensure that radar modules are functioning correctly. With its user-friendly design and high precision, it provides reliable test results for radar applications.
Product Features:
Supports six types of radar: Rd-02B, Rd-02C, Rd-03, Rd-03D, Rd-03E, and Rd-04
Equipped with Ai-Thinker APP for data detection and parameter adjustment
Supports secondary development and integrates Windows and Linux development environments
Provides BLE5.2 support with speed options: 125Kbps, 500Kbps, 1Mbps, 2Mbps
Supports serial local upgrade and remote firmware updates (FOTA)
Equipped with 64 KB SRAM, 256KB flash, 96 KB ROM, and 256-bit efuse
RD-KIT - Radar Test Card Technical Specifications:
|
Dimensions: 40*45(±0.2)mm |
Antenna: On-board antenna |
Frequency Range: 2400~2483.5MHz |
|
Storage Environment: -40 ℃ ~125 ℃ ,<90%RH |
Power Supply: 5V, supply current ≥500mA |
Power Supply Connection: Type-C female connection |
|
Operating Temperature: -20 ℃ ~70 ℃ |

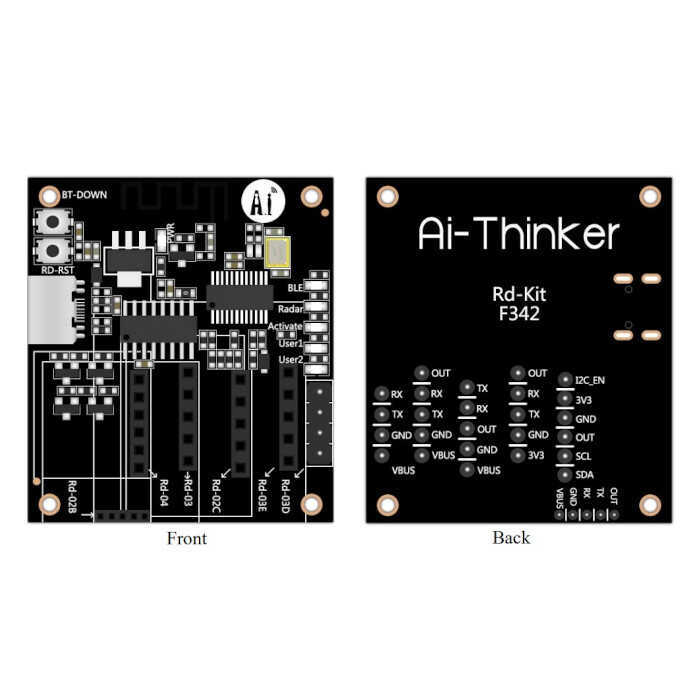

Supported Radar Interfaces: Rd-02B , Rd-02C , Rd-03 , Rd-03D , Rd-03E ve Rd-04 |
Flash: 256KB |
|
Indicator Lights: 6 pieces (1 red, 5 blue) |
UART Rate (Default): 115200 bps |
Security: AES-128 |
