Raspberry Pi Compute Module 5 IO Case REV2

Raspberry Pi Compute Module 5 IO Case REV2

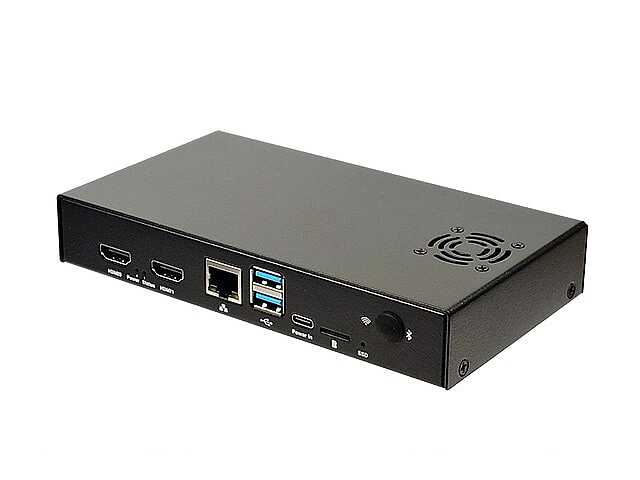

The Raspberry Pi Compute Module 5 IO Case REV2 is an enhanced enclosure designed for the CM5 IO Board, offering improved cooling performance, optimized fan placement, and a more refined airflow design. With the REV2 update, the fan and ventilation layout have been redesigned to ensure full compatibility with heatsinks while maintaining efficient cooling airflow.

Featuring a durable metal body, easy assembly, and full access to all CM5 IO ports, this case is an ideal platform for prototyping, education, industrial automation, and IoT applications, delivering professional-grade performance and reliability.

Raspberry Pi Compute Module 5 IO Case REV2 Technical Specifications:

• Dimensions: 170 mm x 94 mm x 28 mm

• Approx. 350 g weight

• Durable sheet metal construction

• DC Brushless Fan Specifications

• 5V DC (3.5 – 5.5V) powered via a four-pin fan header on the carrier board

• ≥ 3.5V startup voltage

• 0.85W power consumption

• 0.18 ± 0.02A rated current

• 8000 RPM ± 15% maximum fan speed (at 25°C, after 3–5 minutes of rotation)

• 2.46 CFM maximum airflow

• 21.7 dB ultra-low noise level

• 150 mm fan cable length

• Improved fan and ventilation layout for optimized cooling

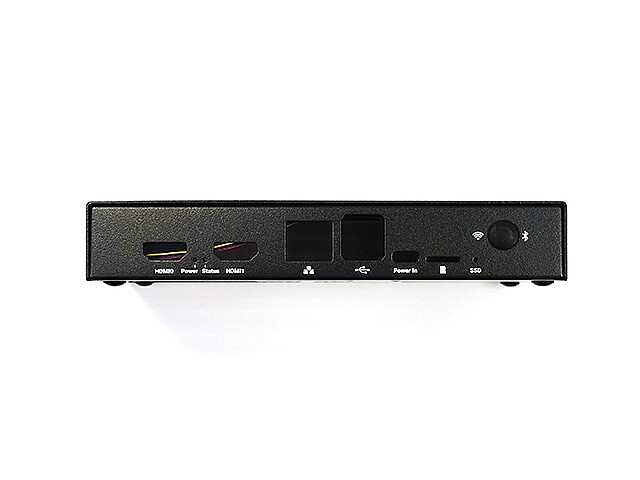

• Full access to all CM5 IO ports

Assembly Tips (CM5 IO Case Assembly Tips)

• Position the CM5 IO Board in the bottom section of the case by aligning the four mounting points slightly inset from each corner and fastening the screws. Be careful not to over-tighten the screws.

• To use the fan, connect the fan cable to the FAN (J14) port on the CM5 IO Board.

• Place the top cover onto the bottom case. Align the screw holes on the left and right sides and the power button pass-through at the back. Tighten the screws, but avoid over-tightening.

Package Contents

• 1 x Raspberry Pi Compute Module 5 IO Case REV2

Note: CM5 IO Board and CM5 module are not included.
