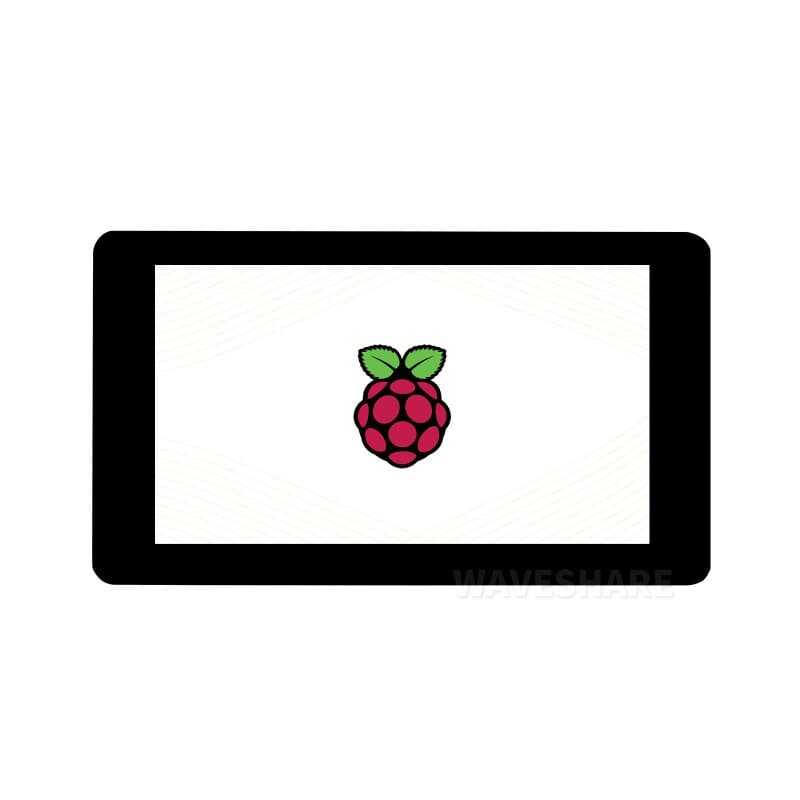

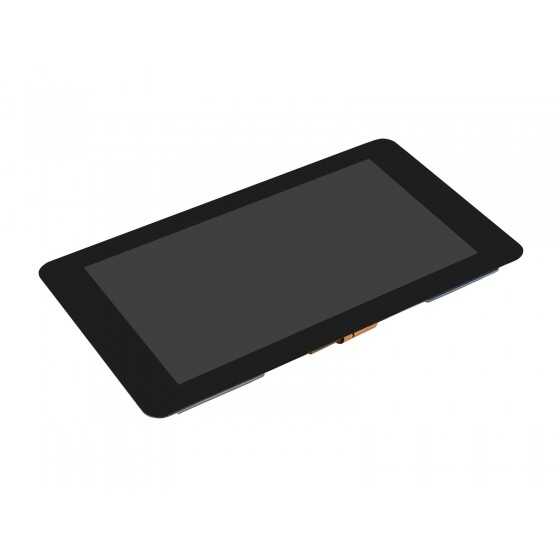

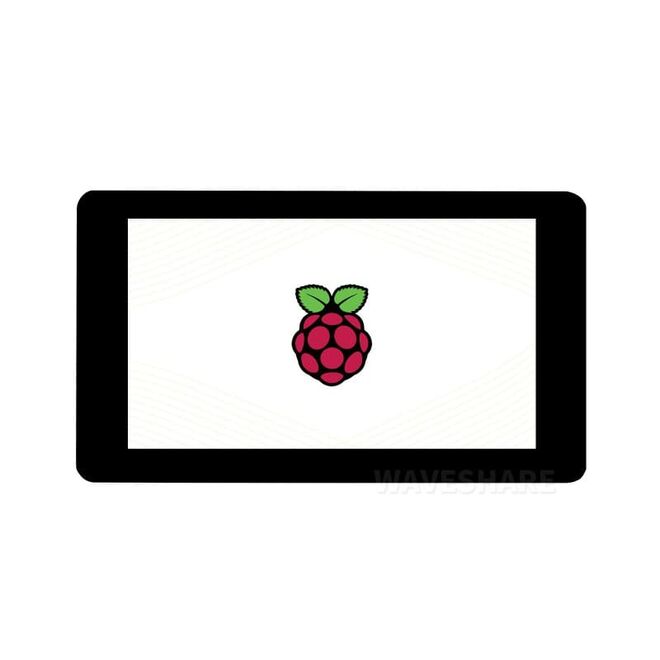

7inch Capacitive Touch LCD Display Module for Raspberry Pi - DSI Interface - 1024x600 Pixel IPS

7inch Capacitive Touch LCD Display Module for Raspberry Pi – DSI Interface – 1024x600 Pixel IPS

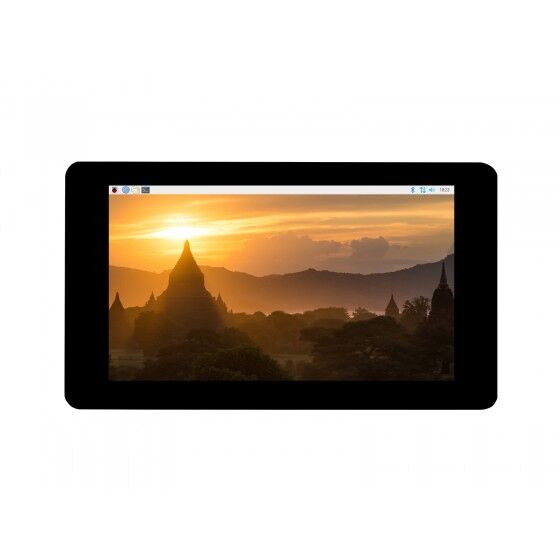

Designed specifically for Raspberry Pi projects, this 7-inch capacitive touch LCD display module delivers high-speed and stable image transmission thanks to its DSI interface. Featuring a 1024x600 resolution IPS panel, it provides wide viewing angles, vivid colors, and sharp image quality.

With its capacitive touch structure supporting multi-touch, this display offers a user-friendly experience. It works directly with Raspberry Pi boards without requiring an additional HDMI converter. It is ideal for education, industrial control, multimedia, and embedded system projects.

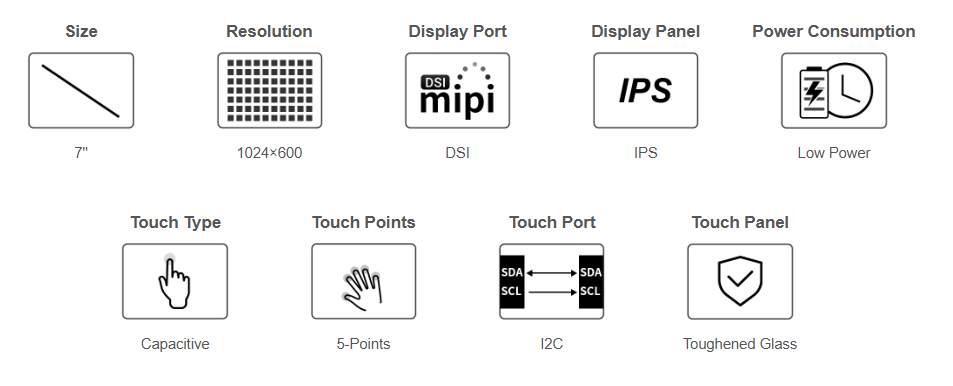

7inch Capacitive Touch LCD Display Module for Raspberry Pi – Technical Specifications:

• Display Size: 7 inch

• Resolution: 1024x600 pixels

• Panel Type: IPS LCD

• Aspect Ratio: 16:9

• Viewing Angle: 170° wide viewing angle

• Touch Type: Capacitive touch panel

• Touch Support: Multi-touch

• Interface: DSI (Display Serial Interface)

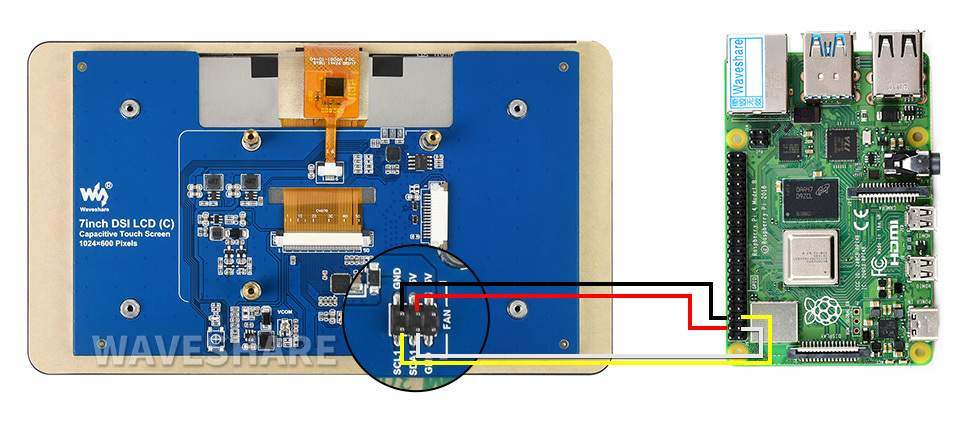

• Connection Type: Direct connection via Raspberry Pi DSI port

• Driver Requirement: Plug & play with Raspberry Pi OS

• Supported Operating Systems: Raspberry Pi OS, Ubuntu (Raspberry Pi compatible versions)

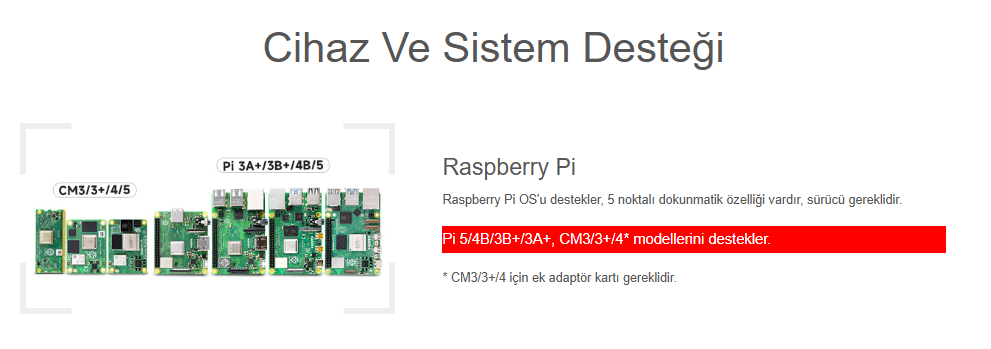

• Compatible Devices: Raspberry Pi 4 Model B, Raspberry Pi 3 Model B+, Raspberry Pi 3 Model B, Raspberry Pi Zero 2 W

• Power Supply: Powered via Raspberry Pi through DSI connection

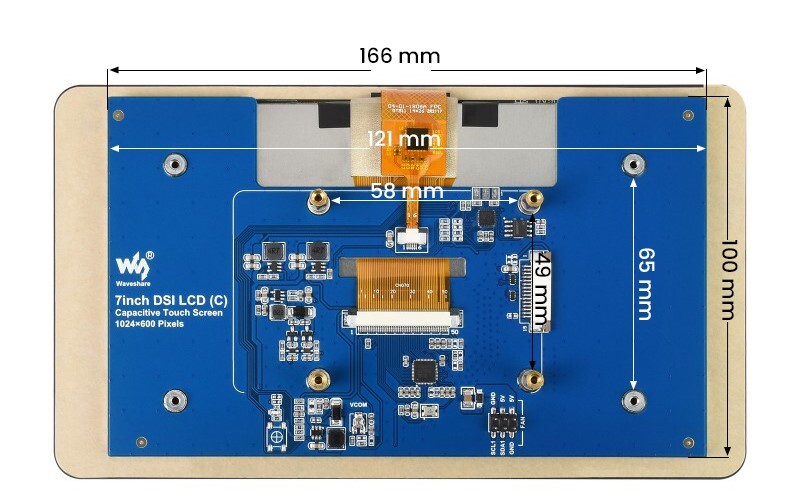

• Mounting: Easy installation with screw mounting holes

• Applications: Educational projects, industrial control panels, HMI applications, multimedia and embedded system projects

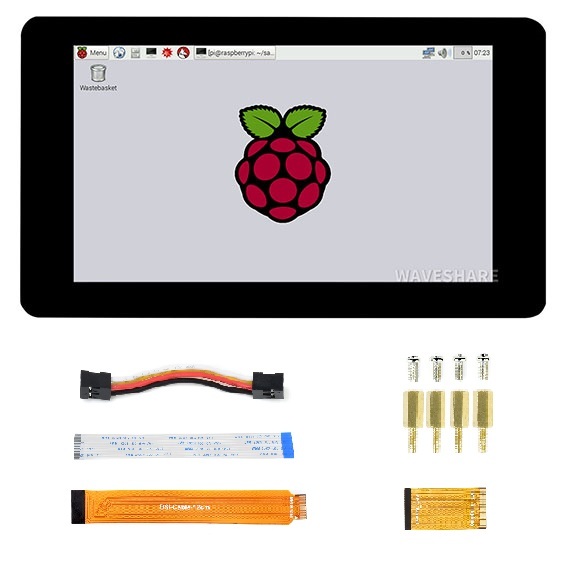

Package Contents:

• 7 inch DSI LCD Display x1

• 15 Pin FPC Cable (1.0 pitch, 50mm) x1

• DSI Cable (12cm) x1

• 15 Pin FPC Cable (1.0 pitch, 160mm) x1

• 2 Pin Power Cable (6cm) x1

• Screw Pack x1
