Radiolink PIXHAWK V3.0 Power Module +Safety key +Connection cable +TFcard (4G) + Buzzer+ Mounting foam

Product Code
:
21536
Brand / Origin
:
Radiolink
Quantity
:
0
Without Vat
:
3,718.88 TL
Out of stock Alert when in stock
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

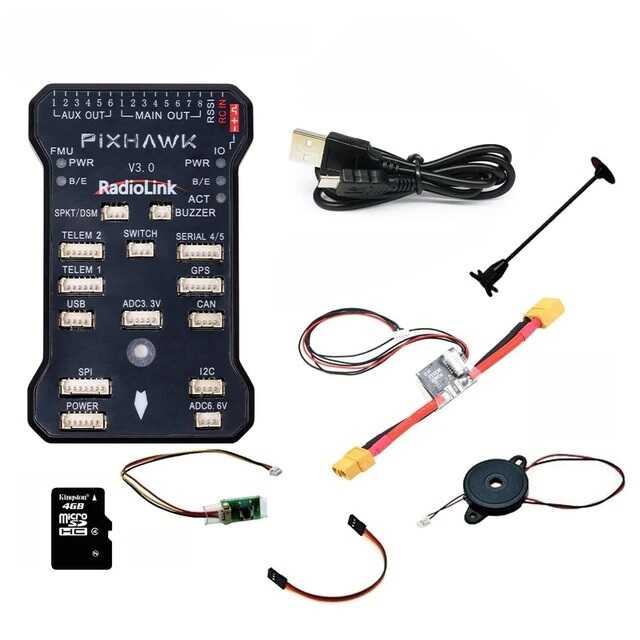

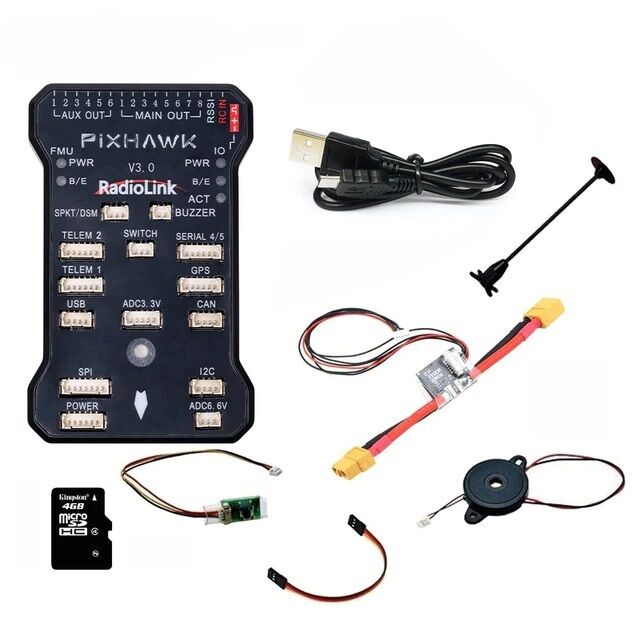

  • Radiolink PIXHAWK V3.0 Power Module +Safety switch +Connect cable +TFcard (4G) + Buzzer+ Mountin foam

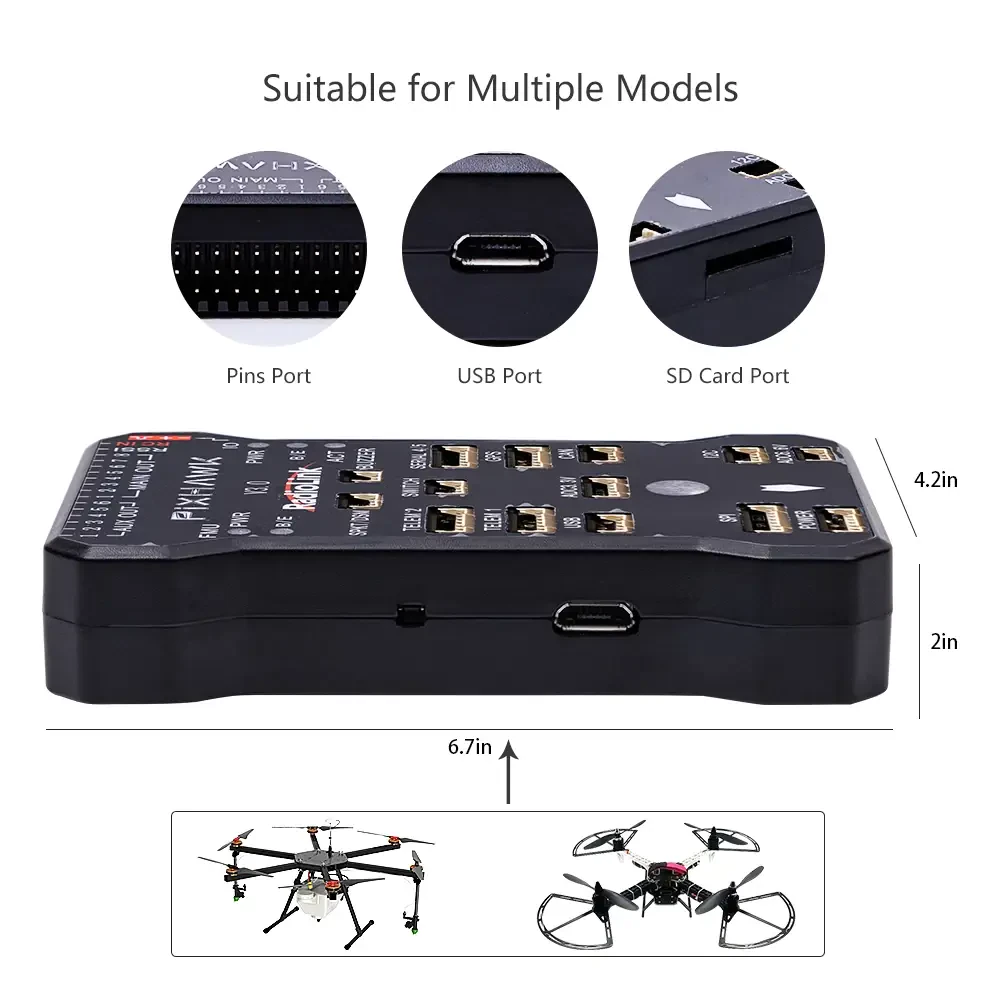

    PIXHAWK V3.0, after completely deciphering the overall circuit design and program code of Radiolink PIXHAWK, the circuit is redesigned, providing less internal components, less noise, more precise compass and safety in flight.Flight controller is fully automatic from SMT to source , antistatic, and less interference of internal components is achieved.



    PIXHAWK V3.0 Technical Specifications:

    • Size: 82.2 x 51.8 x 16.5mm
      Weight: 32gr
      Main Processor: STM32F427VIT6
      Co-Processor: STM32F100C8T6
      USB Voltage: 5V±0.3V
      Operating Temperature: -40~80℃
      Input Voltage: 2-8S
      Input Current: 90A
      Output Voltage: 5.1V
      Output Current: 2A
      Gyro: MPU6000
      GPS UART: 1
      CAN Port: 1compass: QMC5883L
      Barometer: MS5611
      Port: XH socket
      SPK/DSM: 1
      Mavlink UART: 2 (with CTSRTS)
      USB Port: 2
      BUZZER: 1
      SWITCH: 1
      ADC Port: 3.3V*1 & 6.6V*1
      SERIAL4/5 Port: 1
      SPI Port: 1
      I2C Port: 1
      RC Input(TX Signal Supported): SBUS/PPM
      RSSI signal Power Input: PWM/3.3V
      PWM Output: 8 OneShot/PWM Outputs
      Aux Output: 6 PWM Outputs
      SD Card Port: 1
