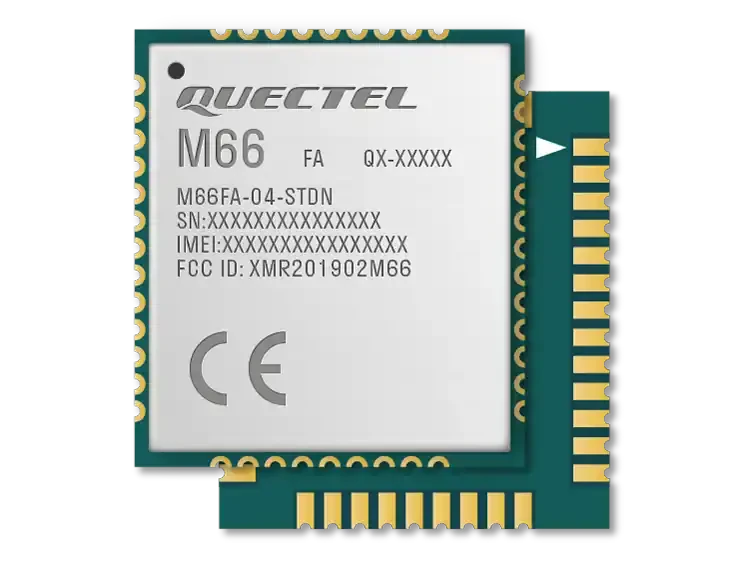

Quectel M66 GSM-GPRS Module - M66FB-04-STD

Quectel M66 GSM/GPRS Module - M66FB-04-STD

The M66 is a quad-band GSM/GPRS 2G module measuring 17.7mm × 15.8mm × 2.3mm which uses LCC castellation packaging. Based on the latest 2G chipset, it is optimized for data, SMS and audio transmission, and is designed for low-power IoT use cases that operate in harsh conditions.

The M66 uses surface mounted technology, making it ideal for large-scale manufacturing, which can have strict requirements on cost and efficiency. The M66’s ultra-compact profile makes it particularly suited to size-sensitive applications, and the module can serve a range of applications such as wearable devices, automotive, PDAs, asset tracking, POS, smart metering and telematics.

Quectel M66 GSM/GPRS Module - M66FB-04-STD Features:

• Supports frequency bands 850/900/1800/1900MHz
• Easier soldering process with LCC package
• Power consumption as low as 1.3mA
• GPRS Multi-slot Class 12
• Supports BT 3.0
• Supports QuecFOTA
• Supports Quectel OpenCPU
• Embedded internet service protocols, multiple sockets and IP addresses



Quectel M66 GSM/GPRS Module - M66FB-04-STD Technical Specification:

• Quad-band GSM/GPRS module
• 17.7mm × 15.8mm × 2.3mm
• 1.3g
• Max. data rate: 85.6Kbps
• SMT form factor
• LCC castellation packaging
• Extended temperature range of -40°C to +85°C

Useful Documents:

• Datasheet
